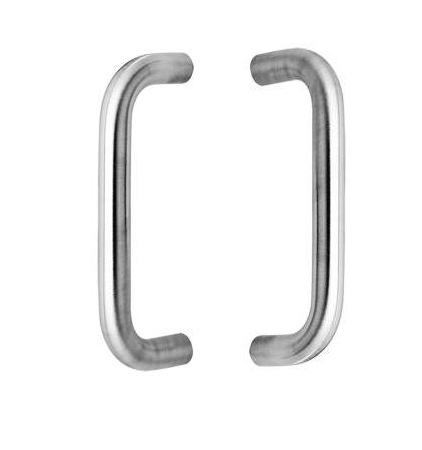

Rockwood 107 Straight Door Pull | 8" CTC Back-to-Back Mounting
The Rockwood 107 Straight Door Pull is a premium architectural solution designed for high-traffic commercial environments. This back-to-back mounted set features an 8-inch Center-to-Center (CTC) distance and is forged from solid 3/4" diameter round material. Engineered for durability and a modern aesthetic, the 107 series is a versatile choice for wood, metal, and aluminum storefront doors where a balanced, professional look is required on both sides of the opening.
Professional Grade Durability & Design
- Solid Construction: Forged from high-quality Aluminum, Brass, Bronze, or Stainless Steel. The solid round bar design prevents denting and bending, even in the most demanding public settings.
- Back-to-Back Mounting: This set is designed for paired installation, utilizing a secure thru bolt connection that links both handles through the door for maximum stability and a cohesive look.
- Standard 1-3/4" Door Compatibility: Ships with standard 1/4-20 x 2-1/4" thru bolts and finish washers, precision-sized for 1-3/4" thick commercial doors.
- ADA Compliant Dimensions: Features a 1-7/8" clearance and a 2-5/8" projection, providing a comfortable and accessible grip that meets ANSI A156.6: J401 architectural standards.
- Architectural Finish Options: Available in a wide range of finishes including Satin Chrome (US26D), Oil Rubbed Bronze (US10B), and MicroShield (US32DMS) for enhanced antimicrobial protection.
Technical Specifications
- Model: Rockwood 107 (BTB)
- Center to Center (CTC): 8"
- Overall Length: 8-3/4"
- Material Diameter: 3/4" Solid
- Projection: 2-5/8"
- Clearance: 1-7/8"
- Mounting Type: Type 1 (Thru Bolt & Finish Washer)
- Standard Fastener: 1/4-20 x 2-1/4" Thru Bolt
- ANSI/BHMA: A156.6: J401
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 313 - Dark Bronze Anodized or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Pull Handle Overall Length | 8-3/4" |
| Center to Center Distance | 8" |
| Pulls Mounting Types | Type 16 - Back To Back Mounting |
| Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
