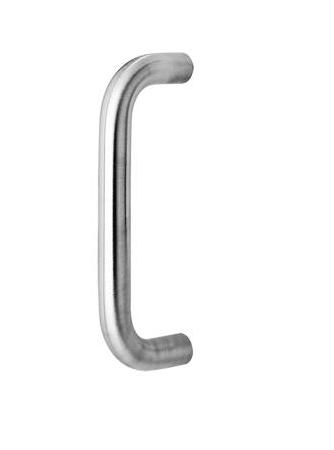

Rockwood 107 Straight Door Pull 8" CTC
*** Advise if door thickness is other than 1-3⁄4" ***
Specifications:
- Material: Aluminum, Brass, Bronze, Stainless Steel
- Fastener: 1⁄4-20 x 2-1⁄4 Thru Bolt & Finish Washer (standard 1-3⁄4" door) Type 1 Mounting.
- Material Size: 3/4" diameter, solid
- Center to Center: 8"
- Overall: 8-3⁄4"
- Base: 3/4"
- Projection: 2-5/8"
- Clearance: 1-7/8"
- ANSI A156.6: J401
Options:
- Options available by quote:
- Heavy Duty Type 1HD Mounting - 5/16-18 x 2-1/4" Thru Bolt with Hex drive & Finish Washer
- Concealed mounting Type 6
- Decorative Thru Bolt mountings Type 12 &, 15
- 2-1⁄2" Barrier Free clearance — use BF prefix (BF107)
Other Finishes Available by quote: White Powder Coat (WPC), Red Powder Coat (RPC), Black Powder Coat (BPC), US32DMS (Micro Shield) US32, US26D, US26, 315, US10BE
| General - US Finishes | 630 - Satin Stainless Steel/ US32D or 313 - Dark Bronze Anodized or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US28 - 628 Aluminum |
| Brand | Rockwood |
| Pull Handle Overall Length | 8-3/4" |
| Center to Center Distance | 8" |
| Pulls Mounting Types | Thru Bolt |
| Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
