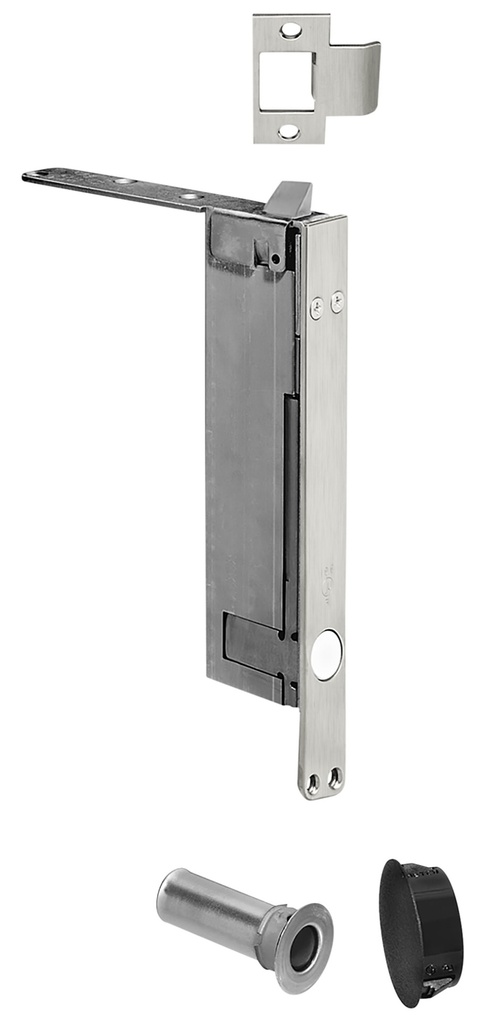

Rockwood 2949 Self Latching Flush Bolt with Bottom Fire Bolt - US32D Brushed Stainless Steel (for wood doors)
- When the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face.
- Bottom Fire Bolt Eliminates the bottom automatic flush bolt and dust proof strike.
- When door is subjected to 230°F the plug and black plastic cover will melt allowing the bolt to project, locking the leaves together.
Material: Brass, stainless steel.
Fastener: 6 ea. #8 x 3⁄4" FH combo screws, 2 ea. plastic anchors, 3 ea. #10 x 1" FH WS
Features:
- For Fire Rated Wood Doors
- Non-handed.
- Low (5 lbs. maximum) closing force.
- Self latching top bolt.
- Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike.
- Bolt head rod is adjustable up to 1-1⁄2".
- For fire rated UL listed 20-minute wood core and composite doors up to 4' w x 9'h.
- Thermal lock automatically locks the inactive door under high heat conditions due to fire.
- Bottom fire bolt eliminates need for floor prep.
- Oversize fire bolt strike hole allows for slight door misalignment.
Top bolt: 1" x 8-1⁄2"
Bottom bolt: 13⁄16" dia.
Finishes: US32D is Stock finish. US3, US4, US10, US10B, US10BE, US32 are available by quote
| General - US Finishes | 630 - Satin Stainless Steel/ US32D or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Wood Door |
| Fire Rated | Fire Rated |
