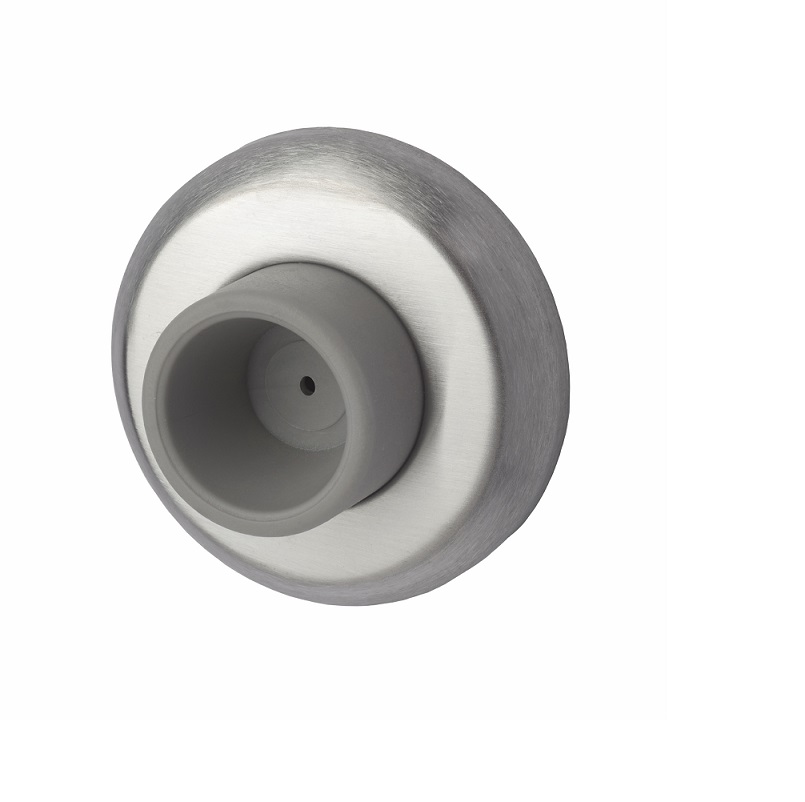

Rockwood 409 Concave Wall Stop | Push-Button Lock Protection
The Rockwood 409 Concave Wall Stop is an essential architectural hardware solution for doors equipped with cylindrical "push-button" or "turn-button" locks. Unlike standard convex bumpers, the concave (indented) center of the 409 ensures that if a door is flung open, the wall stop absorbs the impact without accidentally engaging the lock button. Engineered from high-quality wrought brass, bronze, or stainless steel, this stop is a durable, low-profile choice for high-traffic commercial and residential corridors.
Engineered for Performance & Compliance
- Cylindrical Lock Compatibility: The concave DuraFlex bumper is uniquely shaped to receive the locking button of a door lever or knob, preventing both wall damage and accidental lockouts.
- Wrought Metal Durability: Available in several architectural finishes, the wrought housing provides a sleek appearance while maintaining the strength required for schools, hotels, and office buildings.
- ANSI/BHMA Certified: Meets ANSI A156.16: L02251 requirements, guaranteeing a high-performance lifecycle and consistent impact resistance.
- Concealed Mounting: Features a specialized backplate and hidden fasteners to prevent tampering and provide a clean, professional "flush" look against the drywall.
Versatile Installation & Specifications
- Shock-Absorbing DuraFlex: The rubberized concave bumper is resilient and non-marring, ensuring it won't scuff door hardware even with repeated heavy use.
- Secure Attachment: Furnished with a #8 x 1-1/4" Truss Head Sheet Metal Screw and a plastic toggle, providing a permanent grip in standard drywall or masonry.
- Compact Footprint: With a 2-1/2" diameter and a 3/4" projection, it provides ample protection without being an eyesore or an obstruction.
Technical Specifications
- Model: Rockwood 409
- Bumper Type: Concave (Indented)
- Size: 2-1/2" Diameter
- Projection: 3/4"
- ANSI Code: L02251
- Fastener: #8 x 1-1/4 TH SMS, plastic toggle
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Rockwood |
| Stop Type | Wall Stop |
| Projection | 3/4 Inch |
