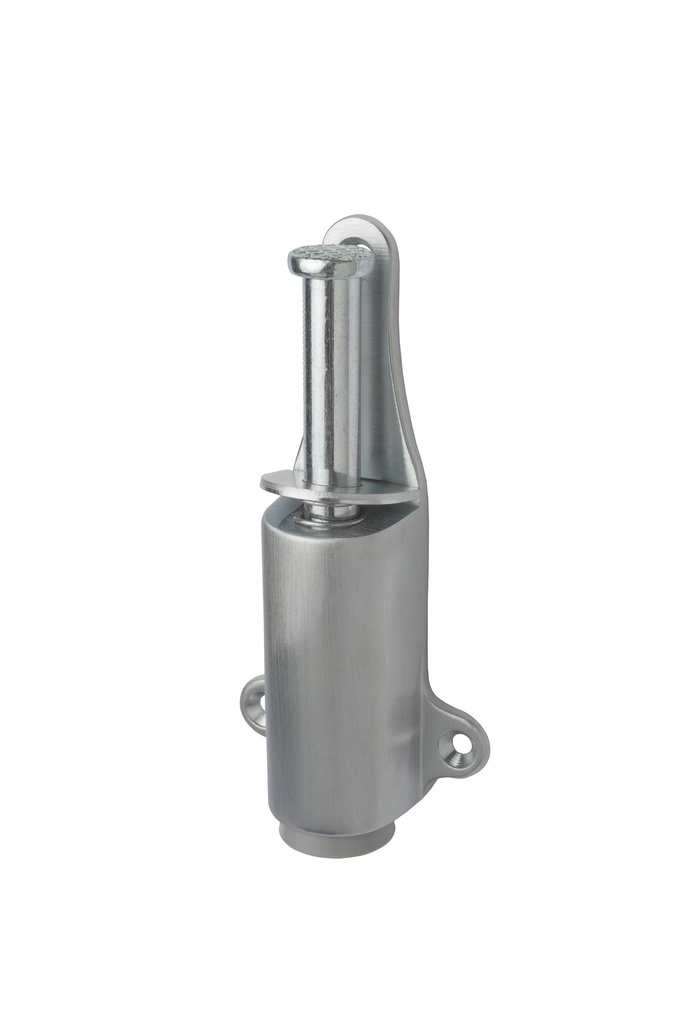

Rockwood 459 Spring Loaded Plunger Door Holder, Spring Loaded Foot Bolt
Stocked in US26D, US10B & US3 finish.
*** Available by quote in US4, US10 & US26 Finishes ***
Replacement Hole Locations: the two holes at the bottom are 2" CTC across. The top screw hole is 4 13/32" center from the bottom two holes
Specifications:
- Material: Solid Cast Brass with DuraFlex Bumper
- Features: Foot operated, spring loaded.
- Other: Uses replacement bumper 461B.
- Fastener: 3 ea. #8 x 3/4 OH SMS
- Base: 1-3/8" x 5-3/8"
- Projection: 1-7/8"
- ANSI A156.16: L01411
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Stop Type | Door Holder - Door Mounted |
| Height | 5-3/8 Inch |
