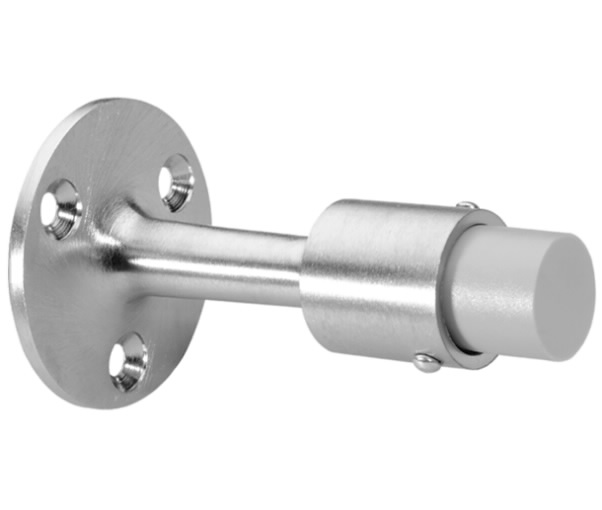

Rockwood 474 Heavy Duty Wall Stop | 3-3/4" Extra Long Projection

The Rockwood 474 is an industrial-grade architectural solution designed for the most demanding environments. Crafted from solid cast brass and featuring a high-clearance 3-3/4" projection, the 474 is specifically engineered for heavy doors or high-traffic areas where standard wall stops lack the necessary reach. Its substantial 2-1/4" diameter base ensures maximum stability and force distribution, protecting your walls from the high-impact energy of heavy commercial doors.

Architectural Performance & Heavy-Duty Design

• Extended 3-3/4" Projection: The longer-than-normal reach is ideal for doors with large hardware, deep trims, or specialized exit devices, ensuring the door stop clears obstacles before making contact.

• Solid Cast Brass Construction: Forged for maximum structural integrity, providing a permanent solution for commercial or institutional facilities that require a "slam-proof" wall protector.

• DuraFlex Bumper Technology: Features a high-resiliency DuraFlex rubber bumper that absorbs impact energy quietly, protecting both the door face and the internal wall structure from damage.

• High-Security Fastening: Ships with a three-point mounting system (#12 wood screws and anchors), providing an unshakeable bond that prevents the stop from rotating or loosening over time.

• ANSI/BHMA Certified: Meets ANSI A156.16 L02011 standards, guaranteeing it meets the rigorous safety and durability requirements for modern commercial building codes.


Technical Specifications

• Model: Rockwood 474
• Base Material: Solid Cast Brass
• Bumper Material: DuraFlex Rubber
• Projection: 3-3/4"
• Base Diameter: 2-1/4"

• Fasteners: 3 ea. #12 x 1-1/4" FH WS with 3 ea. plastic anchors (Included)
• Certifications: ANSI A156.16 L02011

The Rockwood 474 is the professional's choice for classroom or hospital doors that experience rough service. Because this stop has a wide base and a significant 3-3/4" projection, it exerts more leverage on the wall than smaller residential stops. For the most permanent installation, we recommend mounting the base directly into a wall stud or using a backer plate behind the drywall to ensure the stop can handle the weight of heavy exterior-grade doors.

Installation Note: To prevent the stop from spinning, ensure all three mounting holes are utilized. This 3-point contact is what allows the 474 to remain perfectly level and secure even after years of repeated impacts from high-tension door closers.
