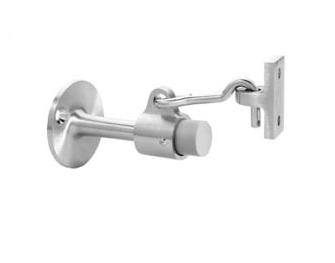

Rockwood 477 Wall Stop and Holder
The Rockwood 477 Wall Stop and Holder is a premium, heavy-duty hardware solution designed for institutional and commercial applications. Crafted from solid cast brass, this unit provides two critical functions: its 3-3/4" extended projection protects walls from impact damage, while the integrated hook and keeper mechanism allows users to manually secure the door in an open position. It is the ideal choice for high-traffic corridors in schools, hospitals, and office buildings where doors must frequently be held open for moving equipment or high pedestrian flow.
Industrial-Grade Durability & Safety
- Dual-Function Security: Combines a high-impact DuraFlex bumper with a manual door holder, reducing the need for separate hardware installations.
- Heavy-Duty Cast Construction: Built from solid cast brass to withstand the rigorous demands of busy commercial spaces, ensuring a much longer service life than lightweight alternatives.
- ANSI/BHMA Certified: Meets ANSI A156.16: L01351 standards, the industry benchmark for architectural door stops and holders.
- Extended Reach: The 3-3/4" projection provides ample clearance for doors with large exit device trim, lever sets, or push bars, preventing them from striking the wall.
Versatile Installation & Specifications
- Secure Single-Point Mounting: The stop body is anchored using a 5/16 - 18 x 1-3/4" stud with a lead anchor for a permanent, wiggle-free fit in masonry or concrete.
- Anti-Spin Design: Includes an additional #8 x 3/4" oval head screw and plastic anchor to prevent the stop from rotating or loosening over time.
- Universal Keeper: The matching 1" x 1-3/4" keeper is easily mounted to the door leaf with provided wood screws and anchors, ensuring a precise and secure hold.
Please Note - This is not approved for Fire Rated Door Openings
Technical Specifications
- Model: Rockwood 477
- Material: Solid Cast Brass with DuraFlex Bumper
- Base Diameter: 2-1/4"
- Projection: 3-3/4"
- Keeper Size: 1" W x 1-3/4" H
- ANSI Code: L01351
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Stop Type | Wall Stop and Holder |
| Projection | 3-3/4 Inch |
Rockwood Condensed Catalog 2017.pdf
Download
