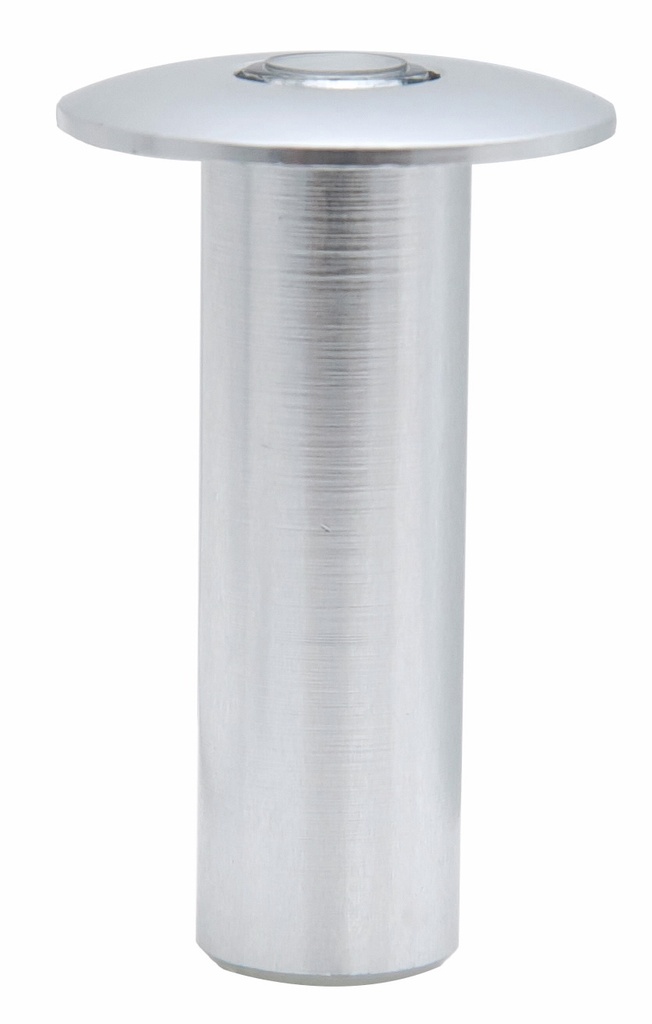

Rockwood 495 Concealed Magnetic Door Stop
Product Overview
Features
- Fully concealed magnetic door stop that includes a hold-open function
- Meets ADA less than 5 lbs. of force to open
- Concealed rare-earth magnet technology ensures exceptional mechanical functionality
- Recommended gap between floor and bottom of the door should be minimum of 3/16" and maximum of 19/32"
- Wood Door application only
- Not available in Canada through Rockwood Manufacturing
- Interior, wood door applications only
Specifications
- Base Material: Brass, Low Carbon Steel, Stainless Steel, Polycarbonate with Magnet
- Base Diameter: 1 3/32"
- Bolt Length: 1 3/4"
- Base Width: 1 11/16"
- Pin Height: 3/8"
- Magnet Diameter: 15/16"
- Magnet Height: 19/32"
- Strike Plate Length: 3 5/32"
- Strike Plate Width: 1 5/16"
- Fasteners: 2 ea #8 x 1" Stainless Steel Screws
| General - US Finishes | US26D - Satin Chrome or BLK - Black or CLR - Clear |
| Brand | Rockwood |
| Stop Type | Floor Stop and Holder |
Rockwood 495 Installation Instructions.pdf
Download
