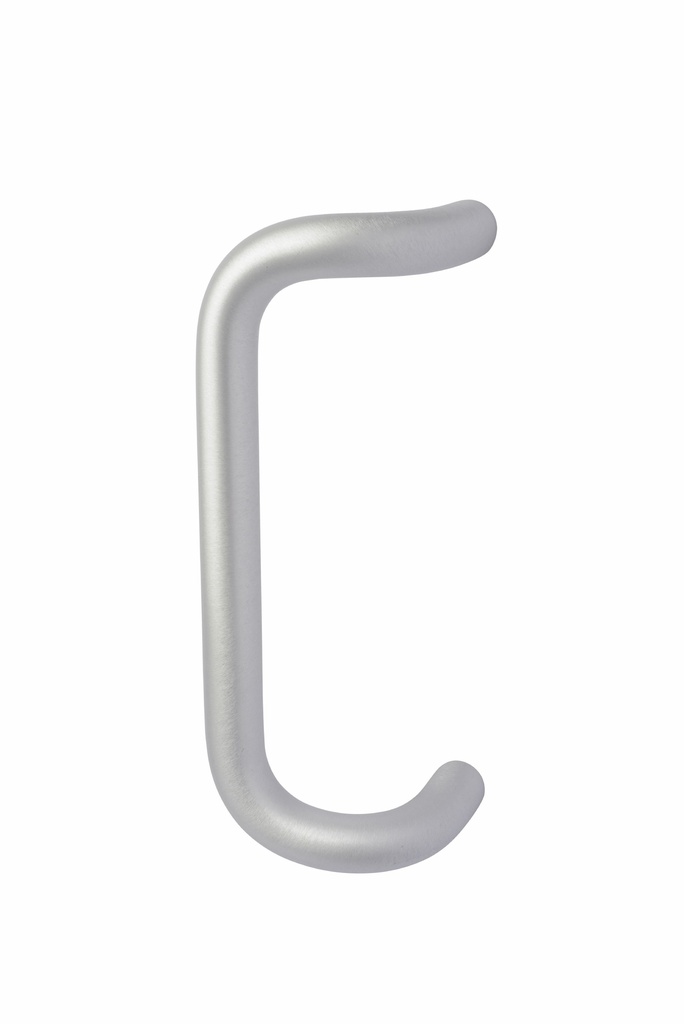

Rockwood BF157A Offset Pull Handle | 9" CTC Solid Aluminum
The Rockwood BF157A Offset Pull Handle is a high-performance architectural solution designed for demanding commercial environments. Featuring a 90-degree offset and a robust 1" diameter solid material build, this handle is specifically engineered to provide superior hand clearance. With its 9-inch center-to-center mounting, the BF157A is the ideal choice for barrier-free openings in hospitals, schools, and modern office buildings.
Engineered for Accessibility & Strength
- 90° Offset for Maximum Clearance: The 4-inch offset design provides a generous 2-1/2" clearance from the door face. This prevents "knuckle-busting" against the door frame or lock trim, ensuring the handle is easy to grasp for all users and meets strict accessibility requirements.
- Solid Construction: Available in high-grade Solid Aluminum or Stainless Steel, offering exceptional durability and corrosion resistance. This heavy-duty build is designed to withstand the rigors of high-frequency use in institutional settings.
- Extended 9" CTC Mounting: The 9-inch center-to-center distance provides a slightly longer profile than standard 8" pulls, offering a balanced aesthetic for larger commercial doors.
- Architectural Standards: Meets ANSI A156.6: J402 standards for architectural trim, guaranteeing a reliable, long-lasting installation in any professional environment.
Technical Specifications
- Model: Rockwood BF157A
- Material: Solid Aluminum or Stainless Steel (Brass/Bronze available by quote)
- Material Size: 1" Diameter
- Mounting Distance (CTC): 9"
- Overall Length: 10"
- Projection: 3-1/2"
- Clearance: 2-1/2"
- Offset: 4" (at 90 degrees)
- Door Thickness: Standard 1-3/4"
NOTE: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 313 - Dark Bronze Anodized |
| Pull Handle Mounting Types | Type 1 (1/4"-20) or Type 1HD (5/16"-18) or Type 1XHD (3/8"-16) or Type 12 (1/4"-20) or Type 12HD (5/16"-18) or Type 12XHD (3/8"-16) or Type 15 (1/4"-20) or Type 15HD (5/16"-18) or Type 15XHD (3/8"-20) or Type 6R (1/4"-20) or Type 6RHD (5/16"-18) or Type 8 (1/4"-20) or Type 8HD (5/16"-20) or Type 17R (1/4"-20) or Type 17RHD (5/16"-18) |
| Brand | Rockwood |
| Center to Center Distance | 9" CTC |
| Pull Handle Overall Length | 10" |
| Handle Diameter | 1" |
| Door Thickness | 1-3/4" Dr Thickness |
