Rockwood BF15847 Offset Single Solid Push-Pull Bar Set

https://www.doorwaysplus.com/web/image/product.template/32275/image_1920?unique=5dc4f7e

Rockwood BF15847-T3 Offset Push & Pull Bar Set
Lead Times: 1-2 Weeks

141.30 141.3 USD 141.30

141.30

Not Available For Sale


  • General - US Finishes
  • Brand
  • Center to Center Distance
  • Pull Handle Overall Length
  • Handle Diameter
  • Pulls Mounting Types
  • Thread Pattern
  • Door Thickness
  • Push Bar Center to Center

This combination does not exist.


Share :

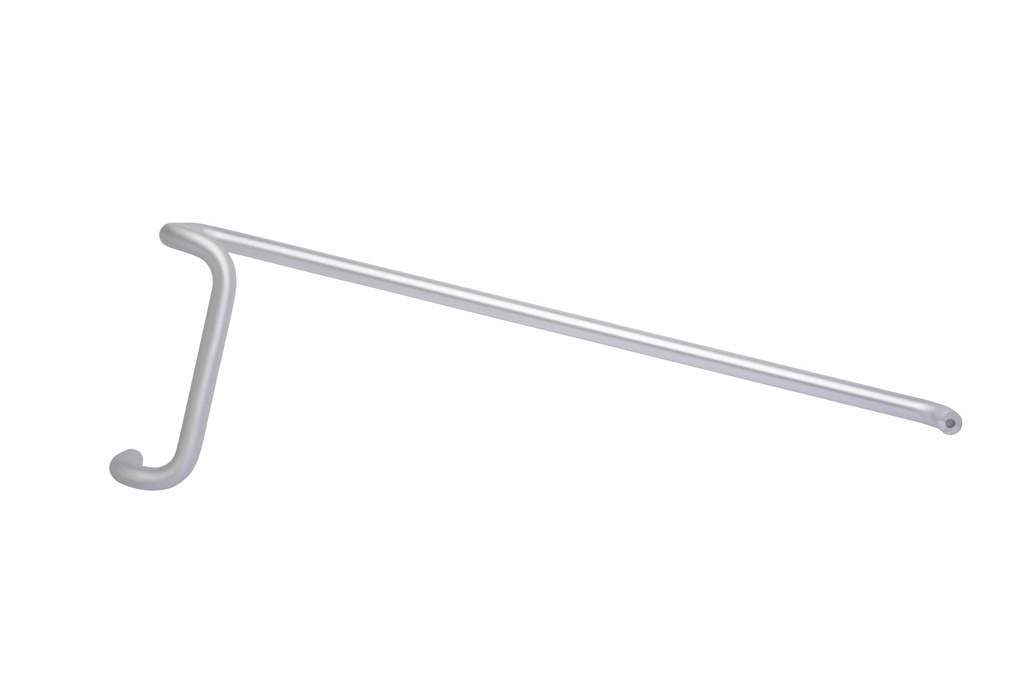

Rockwood BF15847-T3 Offset Push & Pull Bar Set, Solid Metal - Pull Handle 12" Center to Center x 33" Length Push Bar

Specifications

  • Push Bar CTC:  33"  ( for 36" wide door)
  • Pull Handle CTC: 12"
  • Mounting Type: Type 3 (T3) - See details below for more information
  • End Shape: Bent
  • Grip Shape: Round
  • Base Material: Aluminum, Brass, Bronze, Stainless Steel
  • Door Material: Metal, Wood
  • Diameter: 1"
  • Push Clearance: 1 3/4"
  • Projection: 3 1/2"

Mounting Information:

  • Metal/ Wood/ Aluminum Doors: "T3" - Type 3 - Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
  • Metal: T4 Back to Back and Concealed; Pull Free End = 6, Push Free End = 6, Common End = 5
  • Wood: T5 Back to Back and Concealed; Pull Free End = 8,Push Free End = 8, Common End = 5
  • Metal and Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
  • Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Puss Free End = 15, Common End = 13
  • T3 is the standard mounting method for Metal and Wood Doors (Fasteners are 1/4-20 Thread Pattern)

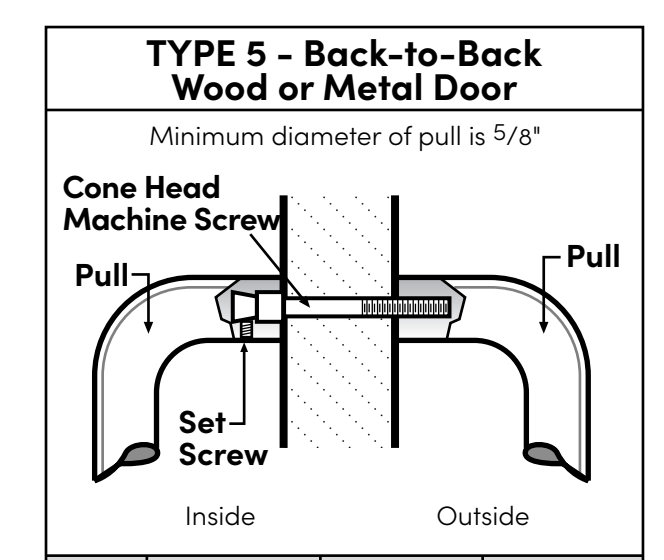

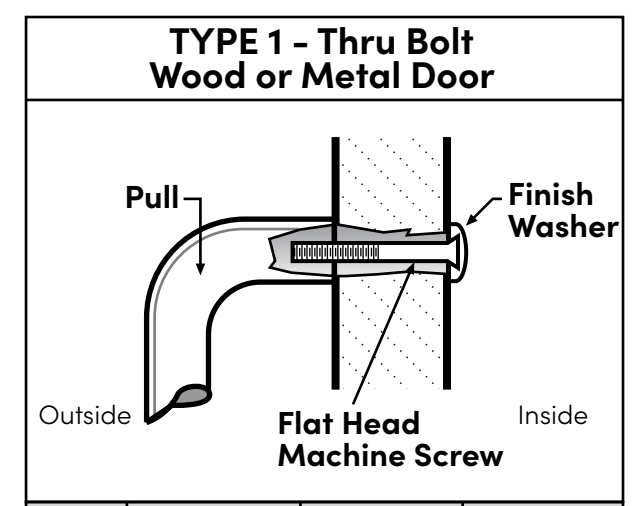

           Rockwood BF15847-T3 Offset Push & Pull Bar Set Type 5 Mounting    Rockwood BF15847-T3 Offset Push & Pull Bar Set Type 1 Mounting

Part NumberMaterial SizePull CTCPull ClearancePush Projection

BF15647

1" dia

8"

2 1/2"

2 3/4"


BF157A47

1" dia

9"

2 1/2"

2 3/4"


BF157​47

1" dia

10"

2 1/2"

2 3/4"


BF15847

1" dia

12"

2 1/2"

2 3/4"




General - US Finishes US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 315 - Black Anodized Aluminum
Brand Rockwood
Center to Center Distance 12" CTC
Pull Handle Overall Length 13"
Handle Diameter 1"
Pulls Mounting Types Type 3 - Back-to-Back and Thru Bolt on Free End
Thread Pattern 1/4-20
Door Thickness 1-3/4" Dr Thickness
Push Bar Center to Center 33" CTC
