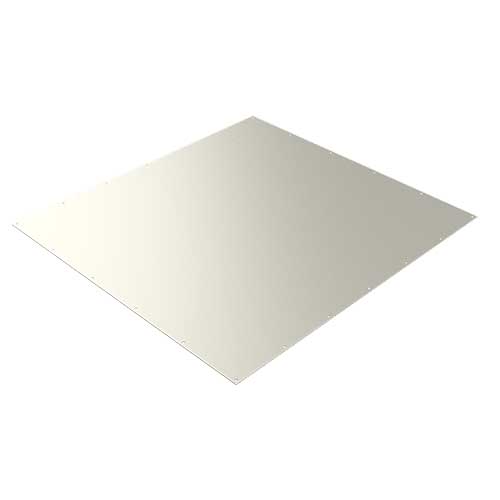

Rockwood K1050 Stainless Steel Armor Plate | 36" x 34" | US32D Satin Finish
The Rockwood K1050 Armor Plate offers maximum-tier protection for your most vulnerable door openings. Measuring 36 inches high and 34 inches wide, this massive protective shield is designed for 36-inch wide doors to prevent structural damage from heavy carts, hospital beds, and machinery. Built from .050" thick US32D Satin Stainless Steel, it features a 50-year life expectancy, providing a permanent, sustainable solution for facility-wide door maintenance.
Industrial-Strength Features & Safety
- Full-Coverage Protection: The 36-inch height transforms your door into a resilient barrier, protecting the bottom third of the door surface where the most severe impacts occur.
- Precision Beveled Edges: All four sides are beveled to ensure a sleek, low-profile fit. This prevents the plate from snagging on moving equipment and ensures handling is safe for both installers and personnel.
- Fire Door Compliance: This plate meets all ANSI A156.6 requirements. While NFPA 80 allows non-labeled plates up to 16" high, this armor plate is ideal for non-fire-rated doors in high-traffic service areas.
- Architectural Finish: The US32D (630) Satin Stainless Steel finish provides excellent corrosion resistance and matches standard commercial hardware for a unified building aesthetic.
Installation & Sizing
- Optimized for 36" Doors: The 34" width follows the LTDW (Less Than Door Width) standard, providing the necessary clearance to ensure the plate does not interfere with the door stop or frame.
- Included Mounting Hardware: Furnished with matching #6 x 5/8" stainless steel screws for a secure, permanent attachment to wood or hollow metal doors.
- Reliable Fulfillment: Standard armor plate sizes are processed quickly and typically ship within 1 to 2 business days.
Technical Specifications
- Part Number: K1050 (36" Series)
- Dimensions: 36" High x 34" Wide
- Thickness: .050" (Standard Metal Thickness)
- Material: Stainless Steel
- Finish: US32D (Satin Stainless / 630)
| Add for UL Rated Armor Plate | None or Add for UL Rated Armor Plate |
| Brand | Rockwood |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Kick Plate Dimension | 36 x 34 |
| Type of Door Protection | Armor Plate |
