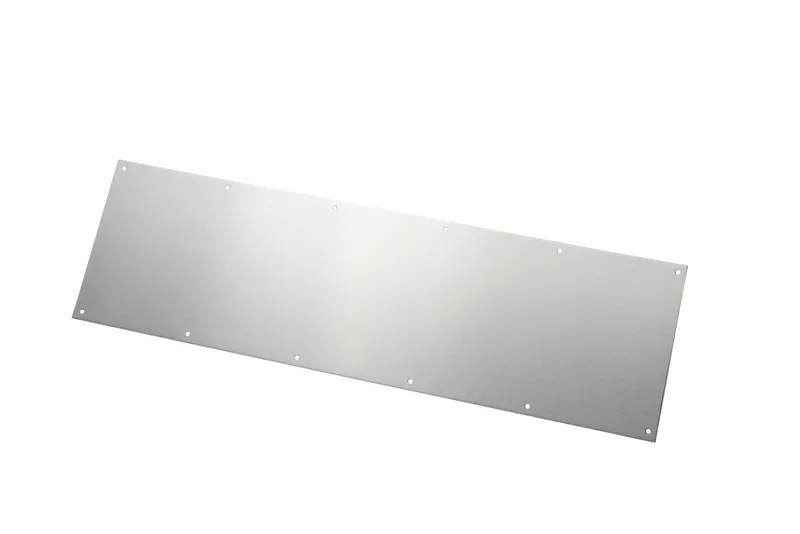

Rockwood K1050 Stainless Steel Kick Plate | 10" High | US32D Satin Finish
The Rockwood K1050 is a heavy-duty architectural kick plate designed to provide superior protection for the bottom of your doors. Manufactured from .050" thick US32D Satin Stainless Steel, this 10-inch plate acts as a durable shield against the constant impact and scuffing found in high-traffic commercial environments. With a 50-year life expectancy, the K1050 is a sustainable, cost-effective solution that preserves the integrity of your doors and keeps your facility looking professional for decades.
High-Performance Protection & Safety
- Precision Beveled Edges: All four edges are beveled to ensure a sleek, low-profile fit against the door face. This safety feature eliminates sharp edges and prevents the plate from snagging on clothing or maintenance equipment.
- NFPA 80 Fire Compliance: This plate is a code-compliant solution for fire-rated openings. Per NFPA 80, protection plates do not require individual fire labeling if the top edge is installed within 16 inches of the bottom of the door.
- Architectural Finish: The US32D (630) Satin Stainless Steel finish is highly corrosion-resistant and engineered to match standard commercial hardware for a clean, unified aesthetic.
- ANSI/BHMA Certified: Fully compliant with ANSI A156.6 standards for architectural door trim.
Sizing & Installation
- Perfect Fit Sizing: Plates are typically sized 2 inches less than the door width (LTDW) to ensure they do not interfere with the door stop or frame during the closing cycle.
- Standard Mounting: Furnished with matching #6 x 5/8" stainless steel screws for a secure and permanent attachment to wood or metal doors.
- Fast Fulfillment: Most standard 10-inch sizes are stocked for immediate dispatch, typically shipping within 1 to 2 business days.
Technical Specifications
- Part Number: K1050 (10" Series)
- Height: 10 Inches
- Thickness: .050" (Standard Metal Thickness)
- Material: Stainless Steel
- Finish: US32D (Satin Stainless / 630)
| Kick Plate Dimension | 10 x 34 or 10 x 35 or 10 x 40 or 10 x 42 or 10 x 46 |
| Brand | Rockwood |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Type of Door Protection | Kick Plate |
