Sargent 10-2634 Guarded Latch — 41 Option, 2-3/4" Backset, 3/4" Throw for 10X Line Cylindrical Locks
The Sargent 10-2634 is a genuine OEM replacement guarded latch engineered for the Sargent 10X Line cylindrical lock series. Configured as the 41 Option, this latch features a 2-3/4 inch backset and a 3/4 inch throw, delivering the precise fit and function required for institutional and commercial door hardware applications. As a purpose-built component for the 10X Line, the 10-2634 ensures correct geometry, tolerances, and security performance consistent with Sargent's heavy-duty cylindrical lock platform.
Institutional Grade Features & Benefits
- Guarded Latch Design: The guarded (or anti-shimming) latch bolt resists unauthorized retraction attempts, adding a layer of physical security over a standard unguarded latch.
- 2-3/4 Inch Backset: Industry-standard 2-3/4" backset accommodates the most common door prep found in commercial and institutional construction, simplifying installation and replacement.
- 3/4 Inch Throw: The 3/4" latch throw engages the strike securely, providing consistent latching performance under heavy use conditions typical of high-traffic commercial openings.
- 41 Option Configuration: Factory-designated 41 Option ensures this latch is correctly matched to compatible 10X Line cylindrical lock trim and chassis assemblies for seamless integration.
- OEM Sargent Component: Sourced directly as a Sargent-branded part, maintaining warranty integrity and performance standards of the original 10X Line cylindrical lock installation.
- Direct Drop-In Replacement: Designed to replace worn, damaged, or mismatched latches in existing 10X Line hardware without modification to the door or frame prep.

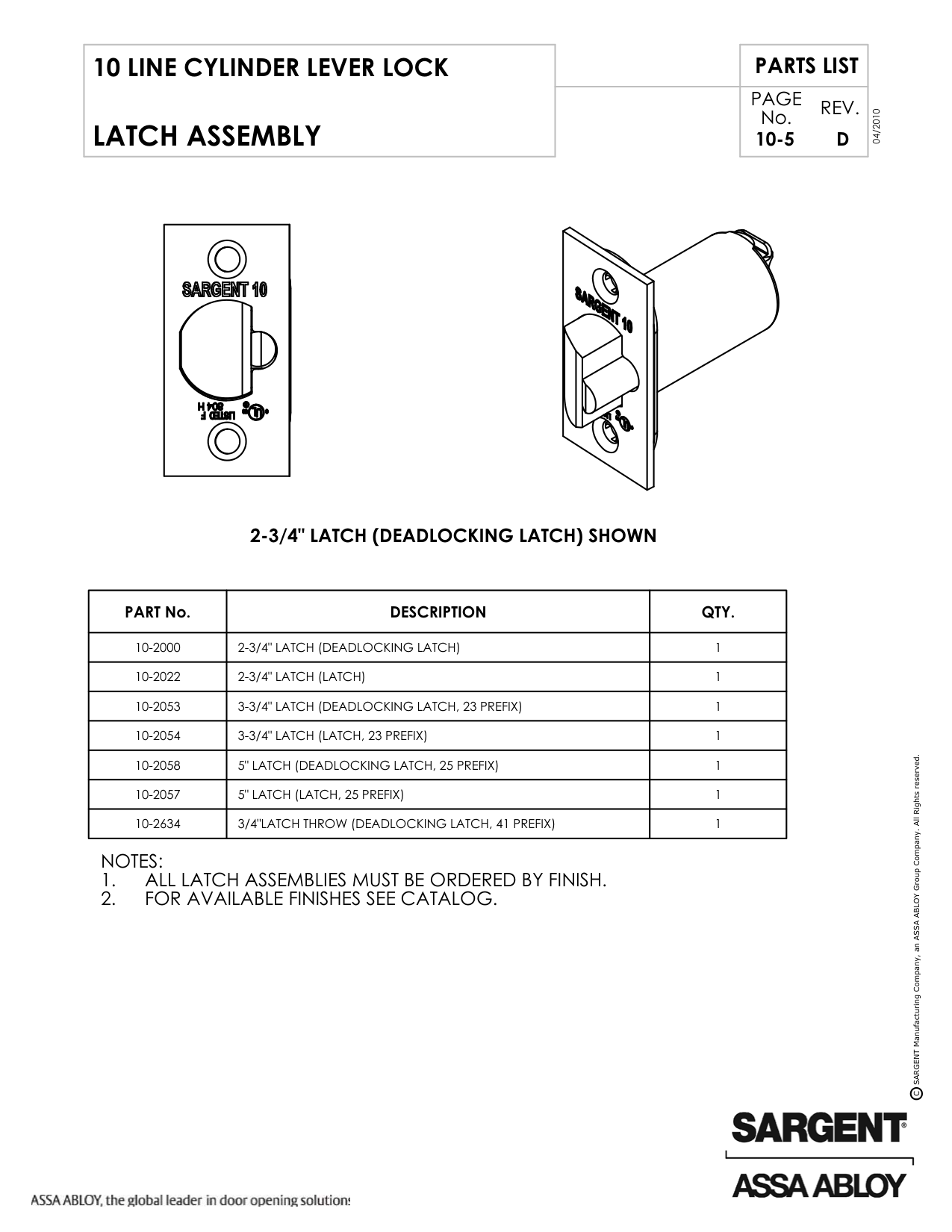

Parts List & Diagram
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Model / Part Number | 10-2634 |
| Part Type | Latch (Guarded) |
| Product Class | Cylindrical Lock Component |
| Option Code | 41 Option |
| Backset | 2-3/4 inch |
| Latch Throw | 3/4 inch |
| Series / Trim Compatibility | Sargent 10X Line Cylindrical Lock |
Applications
The Sargent 10-2634 guarded latch is the correct service part for Sargent 10X Line cylindrical lock assemblies requiring a 2-3/4" backset, 3/4" throw, guarded latch replacement. Typical applications include commercial office doors, institutional corridors, healthcare facilities, educational buildings, and other high-traffic openings where the 10X Line cylindrical lock platform is installed. Specifiers, facility managers, and door hardware professionals rely on this OEM part to restore proper latch function without compromising the security profile of the original hardware installation.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 10X Line |
| Part Type | Latch |
