Sargent 28-10XG05 BHW Office Entrance Function Cylindrical Lockset (Thumb Turn)
Function Information:
The Sargent 28-10XG05 BHW is a professional-grade Grade 1 Heavy-Duty Cylindrical Lockset engineered for high-traffic environments that demand both mechanical excellence and therapeutic design. Part of the elite Sargent 10X Line, this model features the specialized BHW trim, which provides a streamlined, ligature-resistant profile ideal for healthcare and behavioral health settings without the cost of a full mortise conversion. Exceeding ANSI/BHMA A156.2 standards by up to 20 times, it is the industry benchmark for long-term reliability in schools, hospitals, and government offices.
Office & Entrance Function (F109) with Thumbturn Control
The G05 Office Function provides versatile security management for private professional spaces. The outside lever is controlled by a high-durability interior push/turn button (thumbturn), allowing for two distinct locking modes:
- Push Button Locking: Pressing the button locks the outside lever until it is released by a key from the exterior or by turning the inside lever for egress.
- Turn Button Locking: Pushing and turning the button keeps the outside lever locked even when the inside lever is operated or the door is closed. The button must be manually turned back to the vertical position to unlock the exterior.
- Emergency Access: Key override always allows authorized entry from the outside, while the interior lever provides constant free egress for life safety.

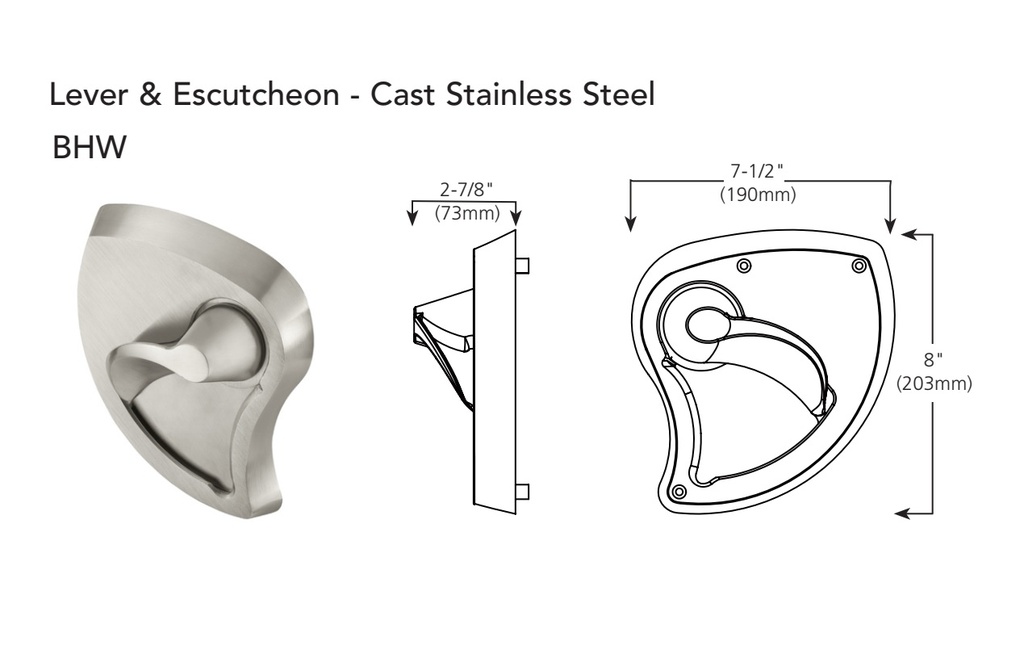

The BHW Trim Advantage: Strength and Safety
The BHW lever design is a game-changer for facilities prioritizing safety and aesthetics. Its tapered surfaces are designed to minimize risk while complementing modern interior design.
- Ligature-Resistant Profile: The streamlined shape reduces potential attachment points, making it a cost-effective choice for "Environment of Care" applications.
- Vandal-Proof Engineering: Built to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset lever pull—nearly 3 times the force required for standard Grade 1 certification.
- Extreme Durability: UL-verified to exceed 20 million cycles, ensuring this hardware outlasts the building's lifecycle in high-abuse corridors.
- Independent Return Springs: High-strength springs prevent lever sag, keeping the BHW handles perfectly level even after millions of operations.
Key Product Features
- Entrance/Office Function (F109): Flexible locking via interior thumbturn and exterior key override.
- BHW Trim Design: Tapered, safety-focused lever that provides a normative look for therapeutic environments.
- Grade 1 Heavy-Duty Performance: Exceeds industry standards by 20x for cycle life and physical impact resistance.
- ADA & Life Safety: Fully accessible lever design that is UL/cUL Listed for 3-hour fire-rated doors.
- Severe Weather Rated: Certified for windstorm and hurricane resistance, including Florida Building Code compliance.
- High-Security Latching: Includes a stainless steel deadlocking latch with a 1/2" throw to prevent shimming or forced entry.
Technical Specifications
| Feature | Details |
| Function | 05 Entrance / Office (ANSI F109) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Design | BHW (Ligature-Resistant / Tapered) |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Latching | 1/2" Throw Stainless Steel Deadlocking |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 28-10XG05 BHW is designed for high-performance integration into new or existing facility door preps. For doors thicker than 2", please specify the 31- Option. This chassis is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Door Handing | LH or RH or RHR or LHR |
| Backset | 2-3/4" Backset or 3 3/4" Backset or 5" Backset |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Brand | Sargent |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | BHW |
| Series | Sargent - 10X Line |
