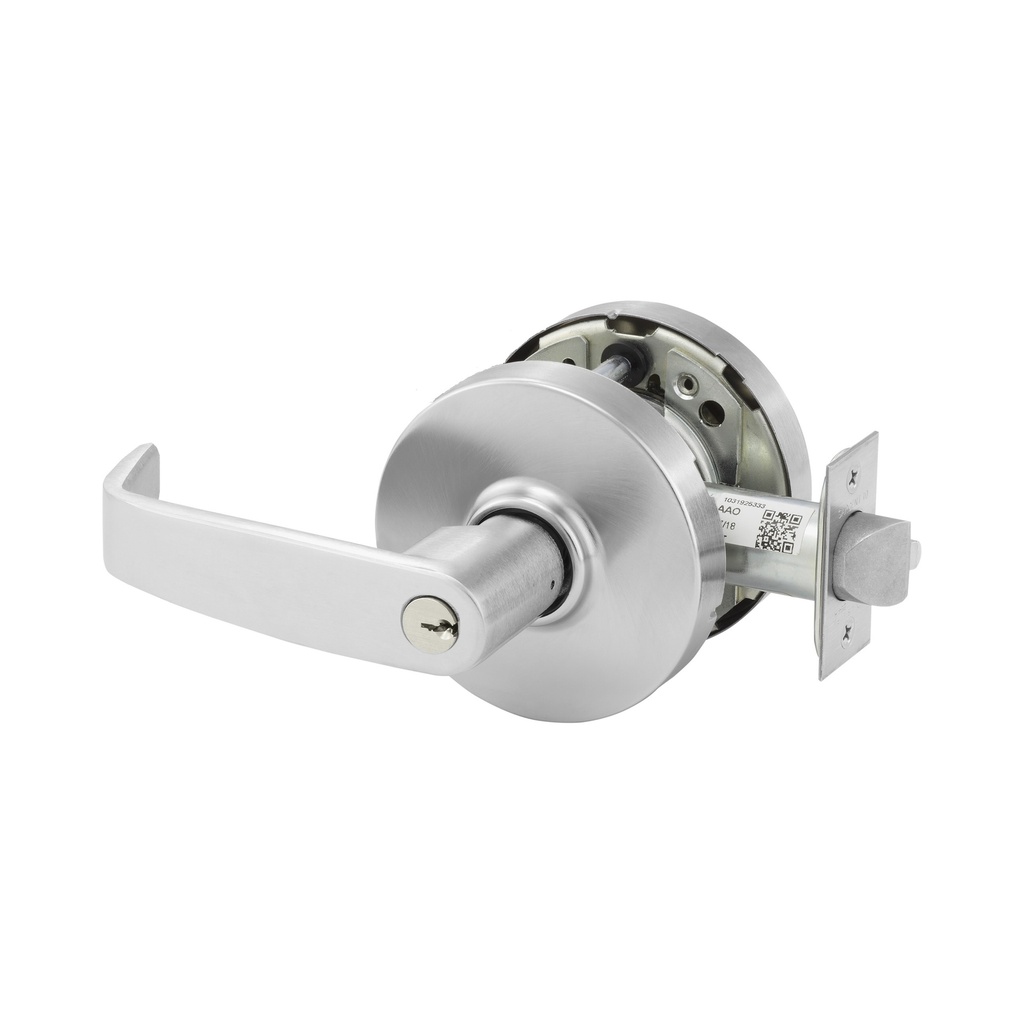

Sargent 28-10XG07 LL Communicating Storeroom Lockset
Function Information:
Freewheeling Locked Lever Option
Available on all locking functions except 10G70 and 10G71
Provides protection from vandalism and added security
Stops in the rose prevent the lever from traveling beyond 60° in either direction
Not available in “J” Lever Design and some options
All Locks and Latches include 4 7/8" ASA Strike - Only. 2 1/4" Full Lip Strikes and 2 3/4" T Strikes are available separately
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F112 - Communicating Storeroom |

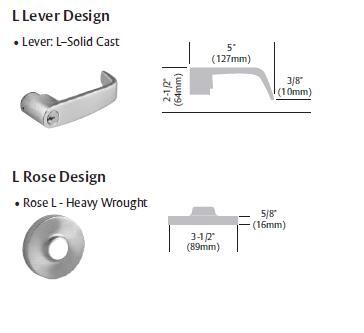

| Trim Design | LL |
| Series | Sargent - 10X Line |
