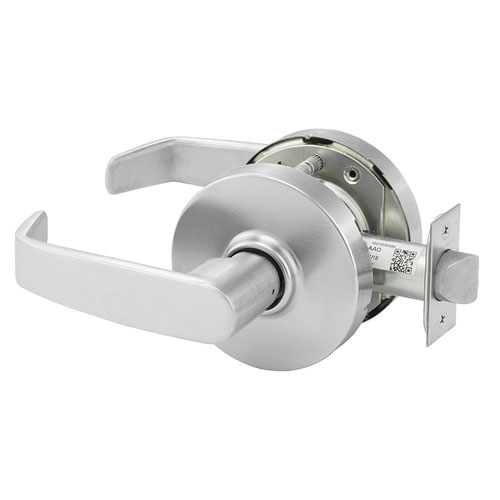

Sargent 28-10XG13 LL Exit Latchset
Function Information:
The Sargent 28-10XG13 LL is a professional-grade Grade 1 Cylindrical Exit Latchset designed for high-abuse, high-traffic commercial environments. Part of the industry-leading Sargent 10X Line, this device is engineered for maximum durability and life safety. The Exit Latch (F89) function features a functional LL lever on the interior to allow for constant free egress, while the exterior side features a blank plate, effectively preventing any entry from the outside.
Engineered for Extreme Durability
The Sargent 10XG13 is built to outperform every standard in its class. While traditional Grade 1 locks are tested to 1 million cycles, the 10X line is UL verified to exceed 20 million cycles, providing up to 20 times the longevity of competing hardware. It is constructed to withstand severe physical attacks, boasting an abusive torque resistance of over 3,100 in-lb and an offset lever pull of 1,600 lbs. This makes it the premier choice for rear exit doors in schools, retail "back-of-house" areas, and government facilities.
Life Safety and Professional Reliability
Safety is at the core of the 10XG13 design. It is UL/cUL Listed for 3-hour fire doors and is fully ADA compliant, requiring less than 5 lbs of force to operate the interior lever. For facilities located in coastal or high-wind regions, this lockset is Windstorm and Hurricane certified, meeting the most stringent Florida Building Code requirements. The independent return springs ensure the interior handle remains perfectly level, eliminating lever sag even after decades of heavy use.
Key Product Features
- Exit-Only Function: Interior lever always allows egress; exterior features a secure blank plate with no access.
- Extreme Cycle Life: UL-verified for 20 million cycles, ensuring the lowest total cost of ownership.
- High-Security Latching: Includes a stainless steel deadlocking latch with a 1/2" throw to prevent tampering.
- Vandal Resistant Construction: Specifically designed to withstand high-impact vertical and horizontal forces.
- Universal Handing: Non-handed design simplifies installation on any door swing.
- ADA & Fire Rated: Meets ANSI A117.1 accessibility standards and 3-hour fire door requirements.
Technical Specifications
| Feature | Details |
| Function | 13 Exit Latch (F89) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Design | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Latching | 1/2" Throw Stainless Steel Deadlocking |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- Commercial Rear Exits: Provide secure, one-way egress for staff and deliveries.
- Educational Institutions: Securing secondary exits in gymnasiums, cafeterias, and auditoriums.
- Healthcare Facilities: Controlled egress for sensitive wings or stairwell doors.
- Manufacturing Plants: Creating secure perimeters while maintaining safe fire-exit pathways.
Ordering & Installation Information
The Sargent 28-10XG13 is factory-shipped with a standard 4-7/8" ASA strike. For doors thinner than 1-3/4", please specify the 1- Option for adapter plates. For doors thicker than 2", use the 31- Option to ensure proper fitment of the internal chassis.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Brand | Sargent |
| ANSI Cyl Lock Function | F89 - Exit Latchset |
| Trim Design | LL |
| Series | Sargent - 10X Line |
| Occupancy Indicator | No |
