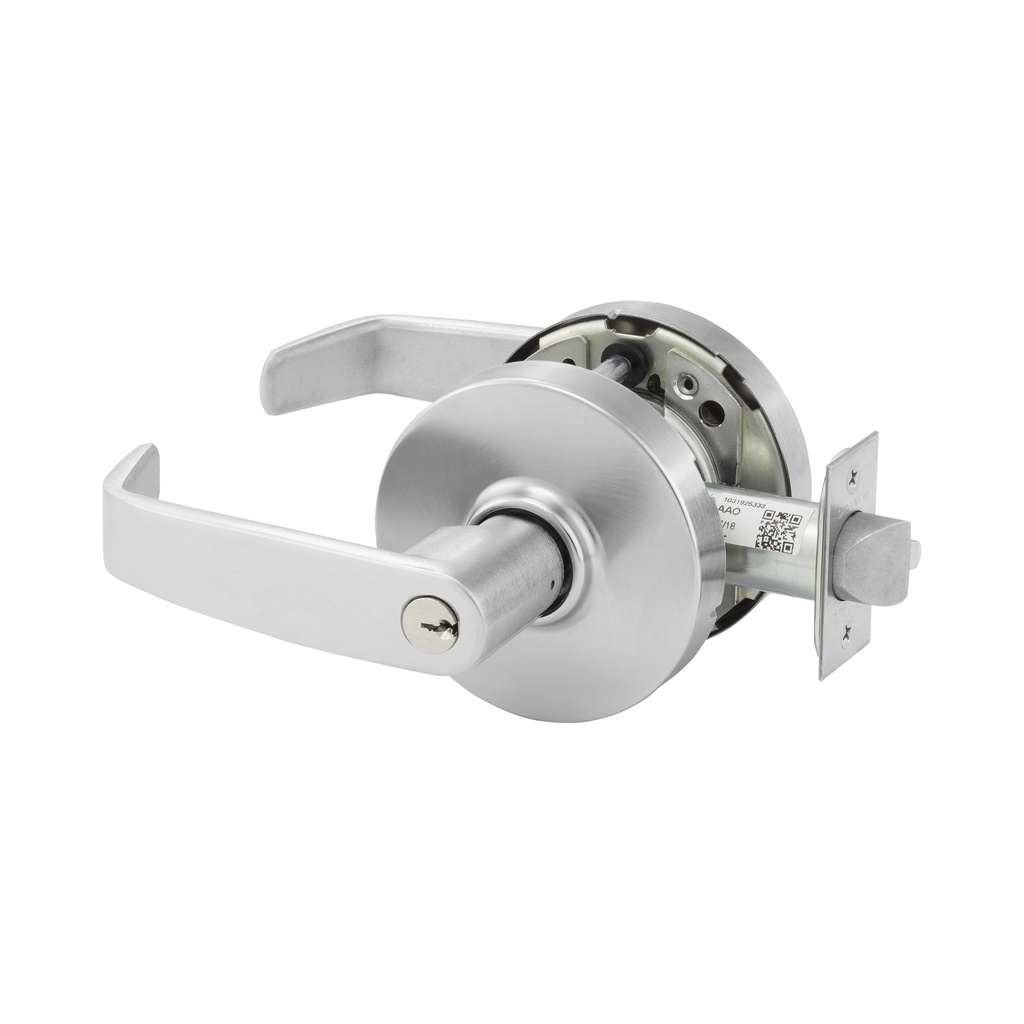

Sargent 28-10XG16 LL Public Entry or Classroom Security Function
Function Information:
The Sargent 28-10XG16 LL is a high-performance Grade 1 Cylindrical Lock engineered for mission-critical security. Designed for the Classroom Security/Public Entrance (F88) function, this double-cylinder lockset allows the outside lever to be locked or unlocked by key from either side. This "Intruder" capability is a vital life-safety feature, enabling teachers or staff to lock down a room from the inside without ever stepping into a hallway. As a cornerstone of the Sargent 10X Line, it is built to endure the most rigorous institutional environments, outperforming standard hardware by up to 20 times.
Elite Lockdown Security & Vandal Resistance
The 10XG16 is the ultimate choice for facility managers prioritizing safety and durability. It features a unique double-cylinder design where the inside cylinder provides immediate control over the exterior handle's status. For added security, a visual lock indicator on the inside rose comes standard, providing at-a-glance confirmation that the door is secured. To thwart physical attacks, the lock resists over 3,100 in-lb of torque and 1,600 lbs of offset pull, while the freewheeling lever prevents vandals from forcing the mechanism.
Proven Performance Beyond Grade 1
Tested to an industry-shattering 20 million cycles, the Sargent 28-10XG16 is UL-verified to last decades in high-traffic schools, hospitals, and government offices. It is designed to function perfectly even under 100lb of latch preload, ensuring reliable operation on warped doors or those with heavy weatherstripping. The ergonomic LL linear lever meets all ADA accessibility standards, and the lock is UL/cUL Listed for use on 3-hour fire doors.
Key Product Features
- Double Cylinder Function: Lock or unlock the outside lever using a key from either the interior or exterior side.
- Visual Status Indicator: Standard internal rose indicator provides immediate "Locked/Unlocked" confirmation.
- Unmatched Durability: UL-verified for 20 million cycles, significantly exceeding ANSI/BHMA A156.2 requirements.
- Intruder Classroom Safety: Allows for rapid lockdown from within the room to protect occupants.
- High-Impact Construction: Withstands 100 vertical impacts—20 times the industry standard for vandal resistance.
- ADA & Fire Rated: Meets ANSI A117.1 standards and is rated for 3-hour fire-rated openings.
Technical Specifications
| Feature | Details |
| Function | 16 - Classroom Security / Public Entry (F88) |
| Series | 10X Line Heavy-Duty Cylindrical |

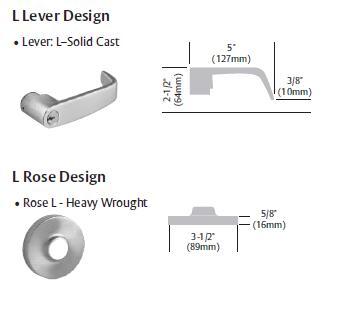

| Lever Design | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Cylinders | Two 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- K-12 & Higher Education: Essential for classroom doors requiring rapid intruder lockdown capabilities.
- Public Buildings: Securing entrance points where key control is required from both sides.
- Healthcare Facilities: Patient wings or staff areas requiring clear visual status of the lock.
- Government/Corporate: High-security offices and conference rooms.
Ordering & Installation Information
The Sargent 28-10XG16 is non-handed and utilizes standard door preparation for ease of installation. For doors thicker than 2", please specify the 31- Option. This chassis supports all major Sargent Key Systems, including Degree®, Signature, and Keso, allowing it to integrate seamlessly into your existing master key system.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F88 - Public/Classroom Security |
| Trim Design | LL |
| Series | Sargent - 10X Line |
