Sargent 10XG24 LL Entrance Lever Lockset

https://doorways.cloudpepper.site/web/image/product.template/4508/image_1920?unique=f119a64

Sargent 28-10XG24 LL Entrance Lever Lockset

613.41 613.41 USD 613.41

613.41

Not Available For Sale


  • Finish with BHMA code
  • Freewheeling Option
  • Sargent Cylinder Options
  • Brand
  • ANSI Cyl Lock Function
  • Trim Design
  • Series

This combination does not exist.


Share :

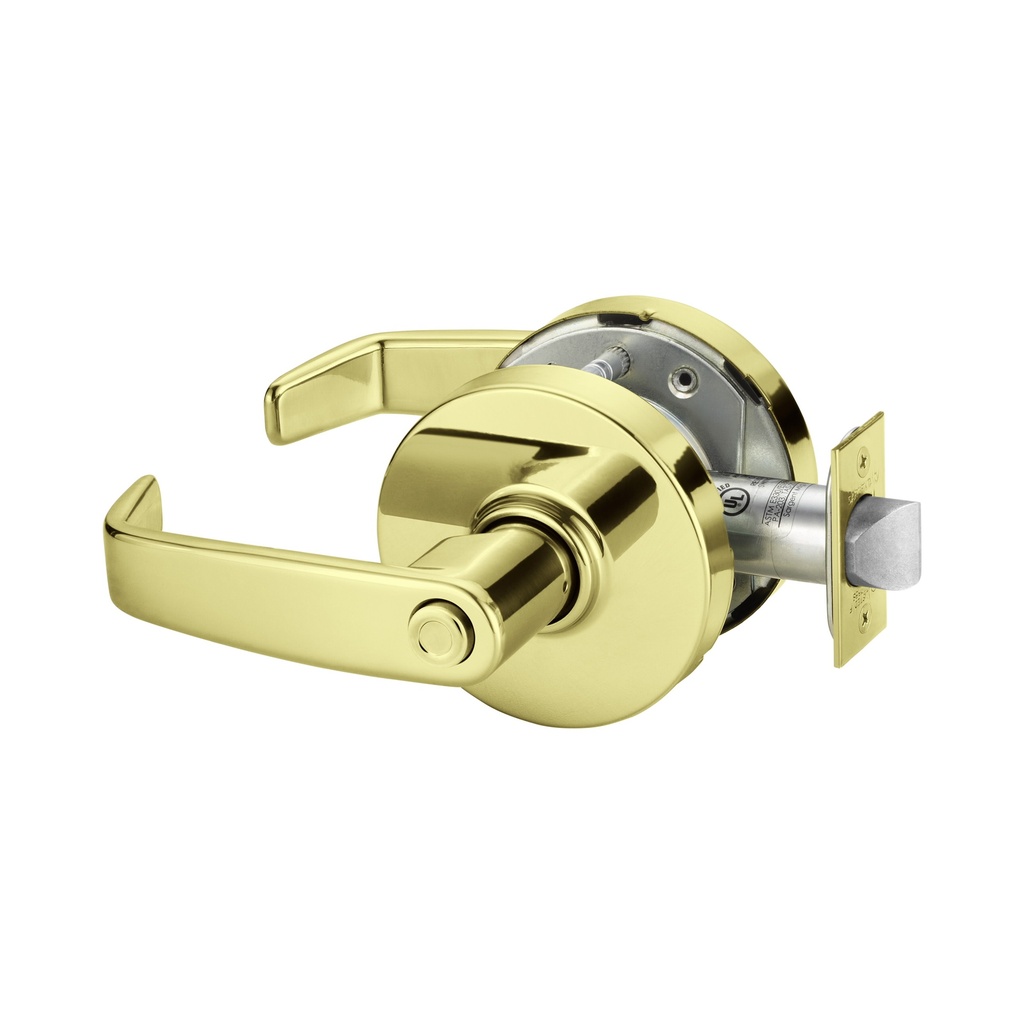

Sargent 10XG24 LL Entrance Function Cylindrical Lockset    (Push Button)

Function Information:



Freewheeling Locked Lever Option

Available on all locking functions except 10G70 and 10G71
Provides protection from vandalism and added security
Stops in the rose prevent the lever from traveling beyond 60° in either direction
Not available in “J” Lever Design and some options

All Locks and Latches include 4 7/8" ASA Strike - Only. 2 1/4" Full Lip Strikes and 2 3/4" T Strikes are available separately

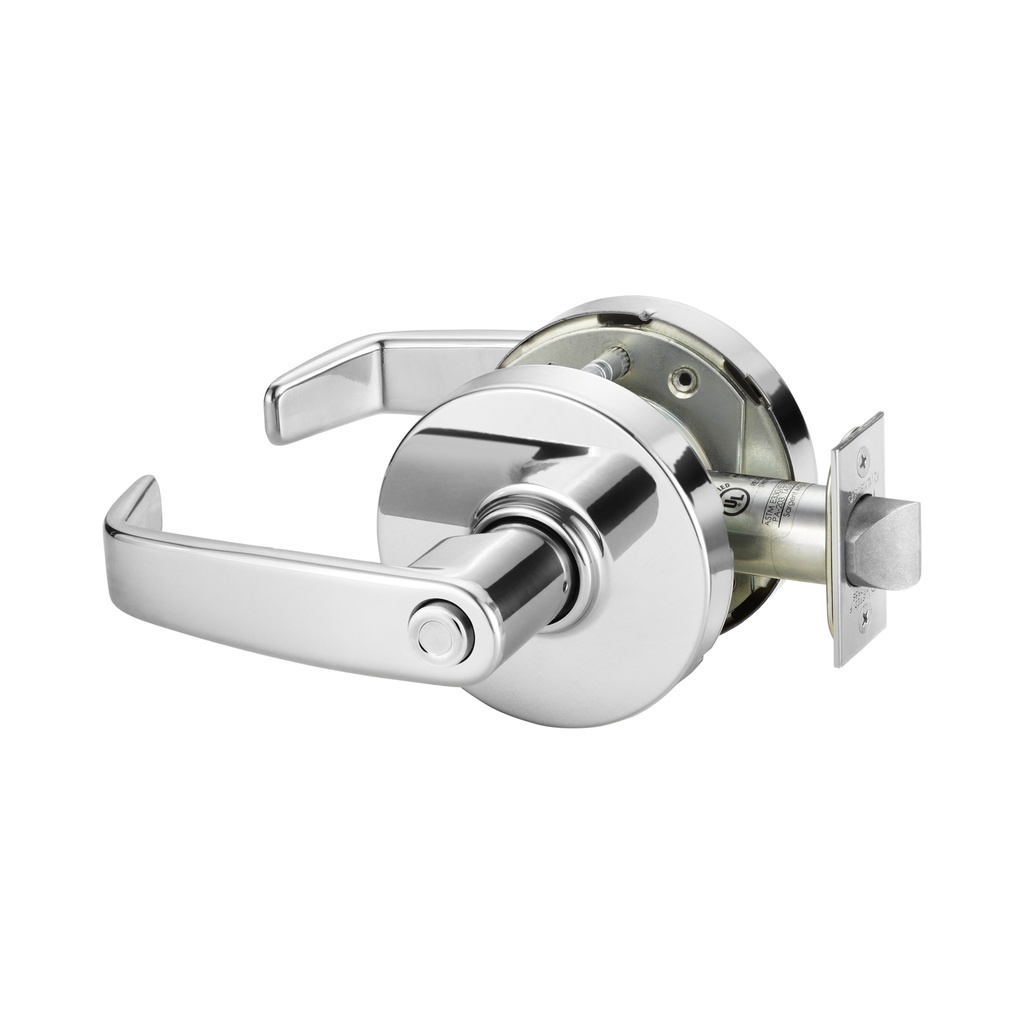

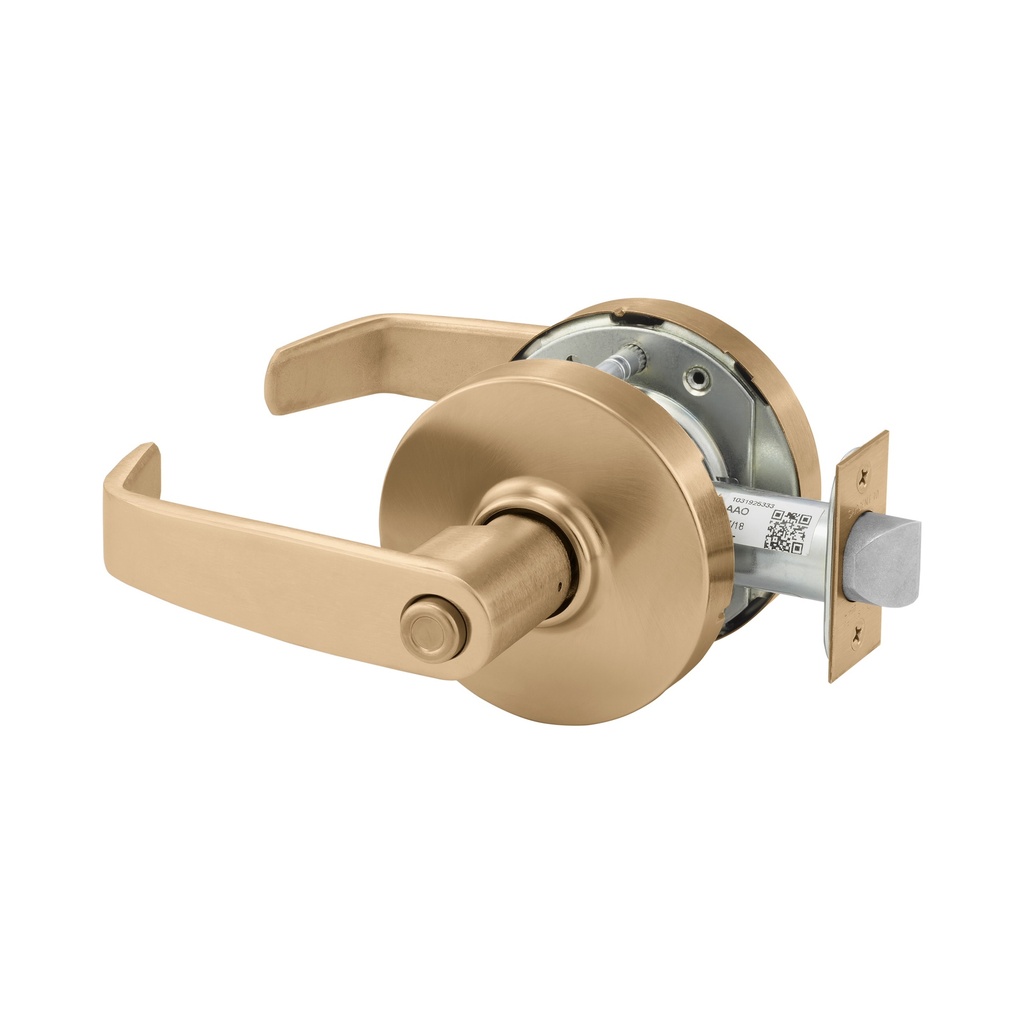

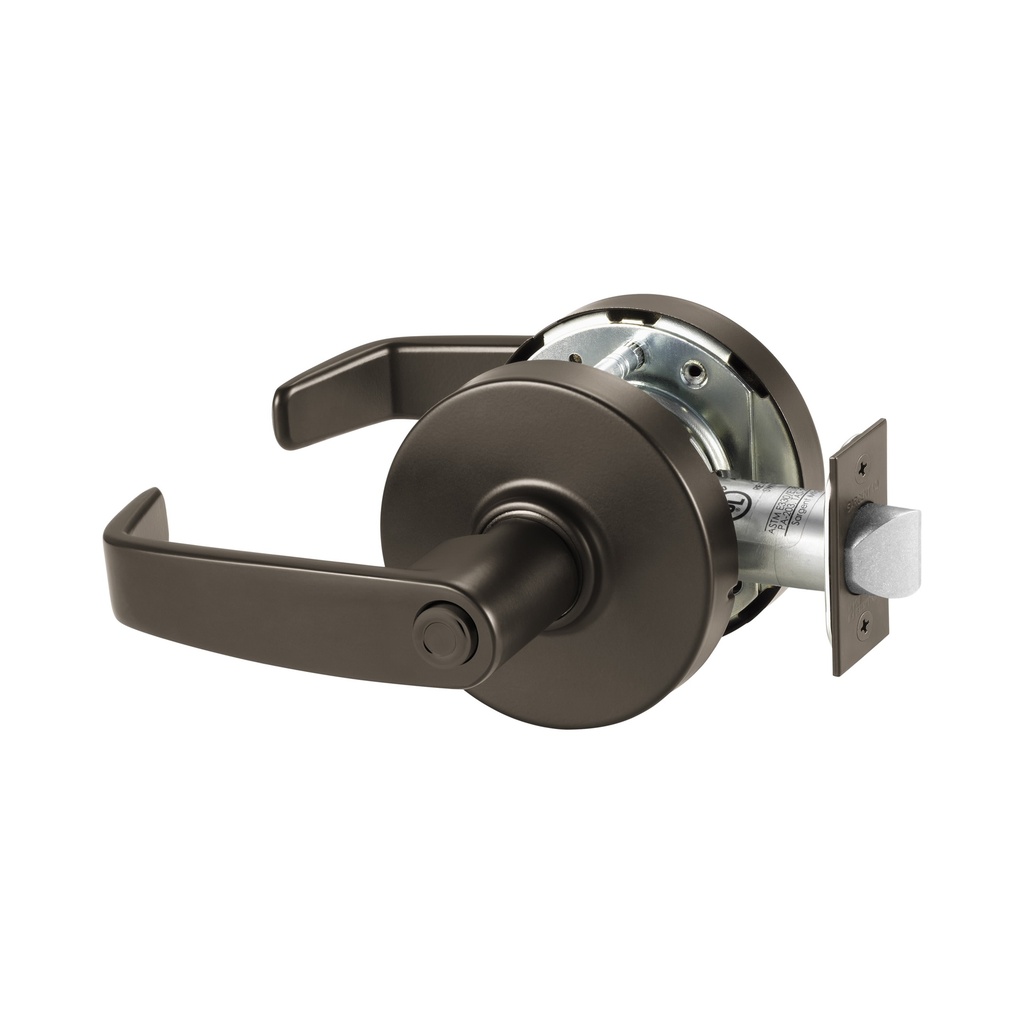

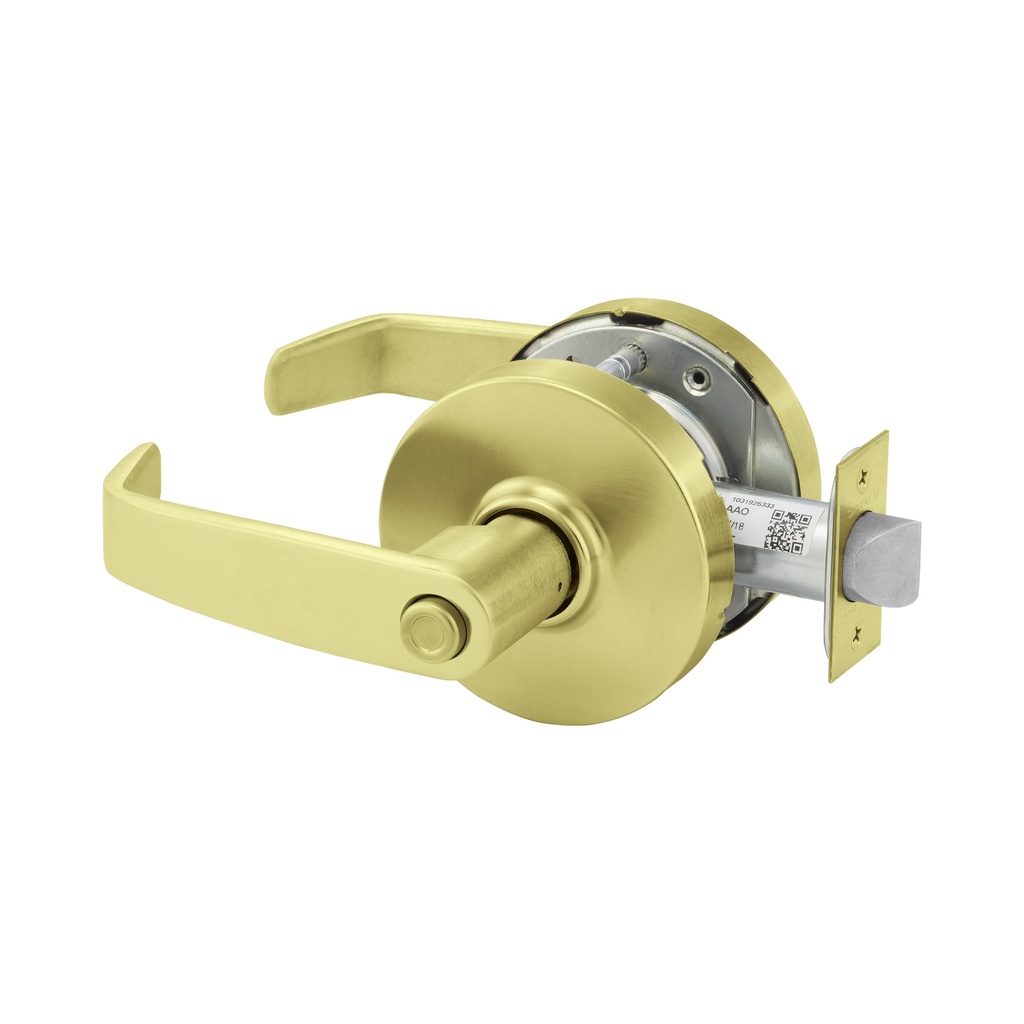

Finish with BHMA code 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome
Freewheeling Option Regular Lever or FW Prefix - Freewheeling Locked Lever

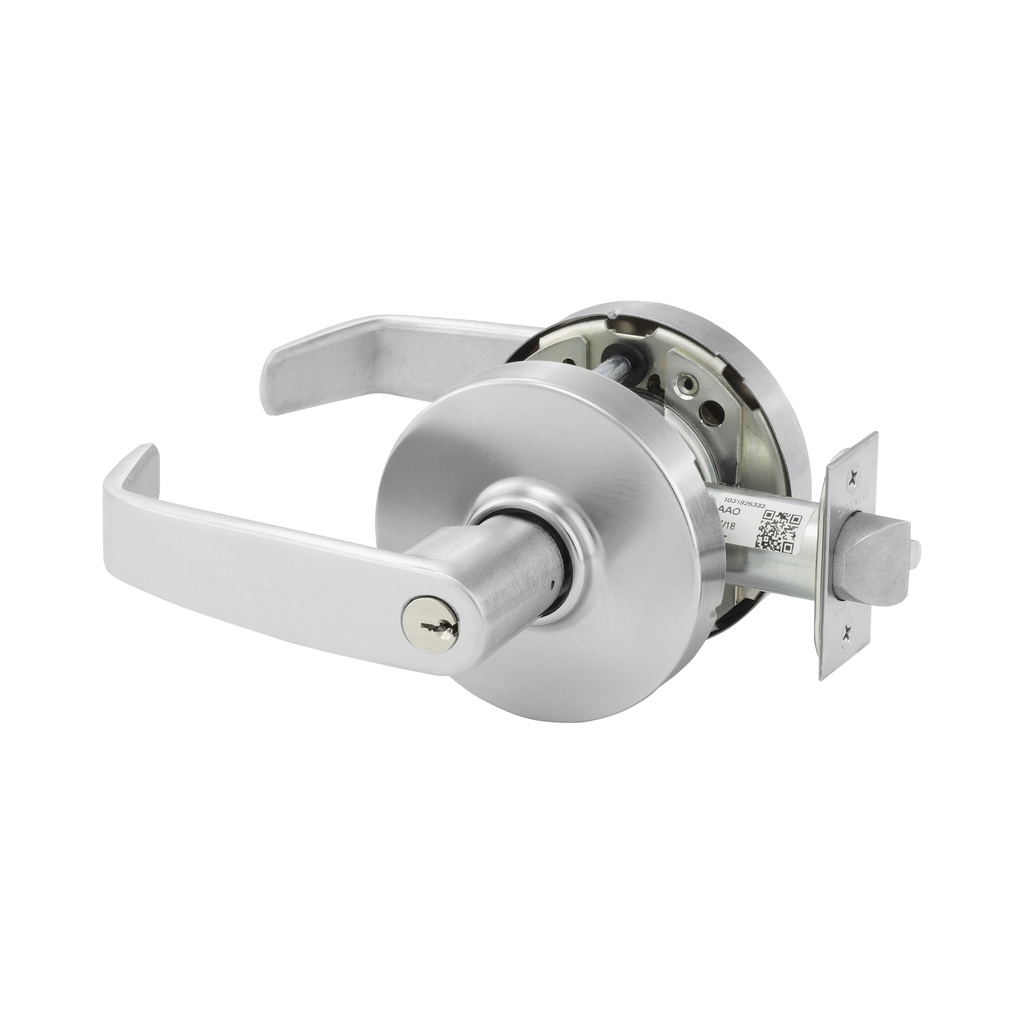

Sargent Cylinder Options KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder
Brand Sargent
ANSI Cyl Lock Function F82A - Office/ Entry

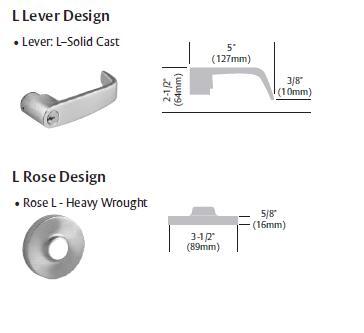

Trim Design LL
Series Sargent - 10X Line
Sargent 10 Line Lever Lock parts diagram
Download
Sargent 10 Line Series Catalog
Download
