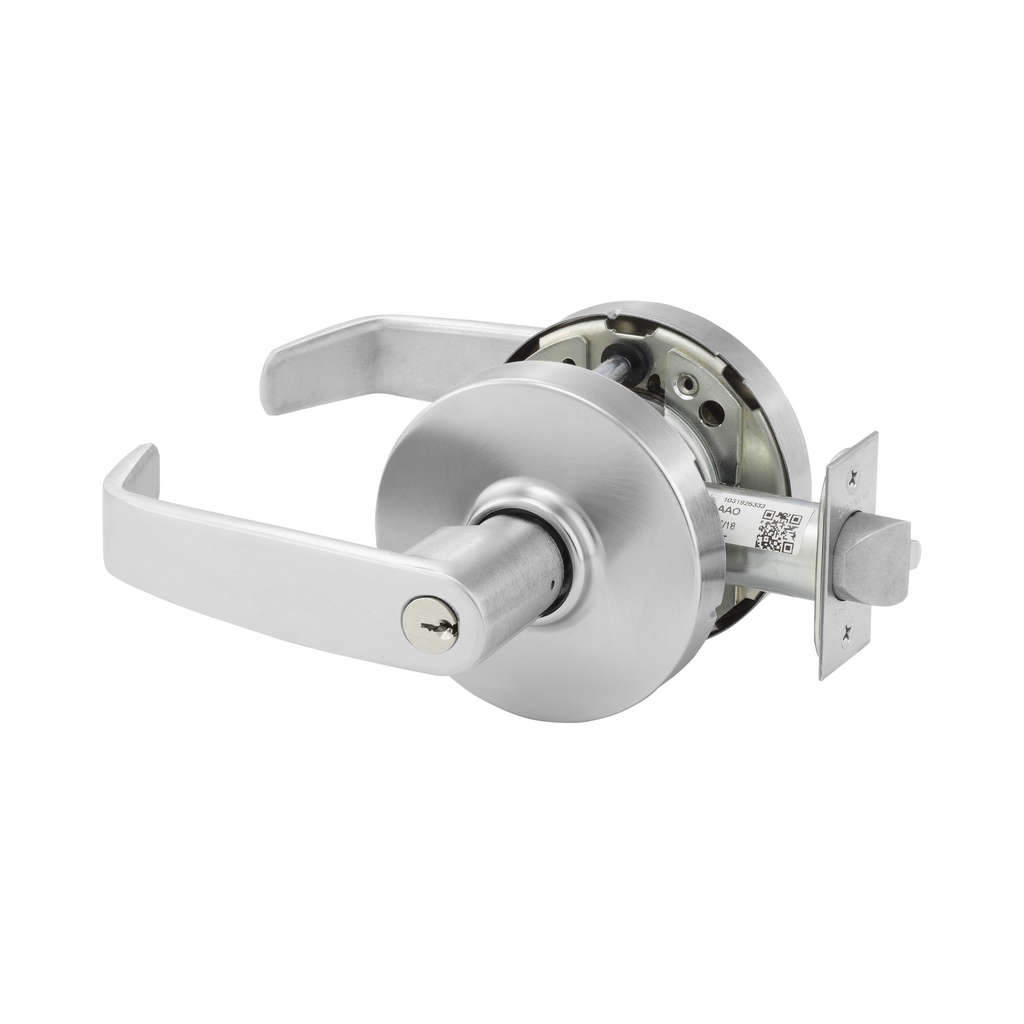

Sargent 28-10XG24 LL Entrance Function Cylindrical Lockset (Push Button)
Function Information:
The Sargent 28-10XG24 LL is a top-tier Grade 1 Cylindrical Lock engineered for high-security "Entrance or Office" (F82) applications. Part of the elite Sargent 10X Line, this lockset is purpose-built to survive high-traffic, high-abuse environments such as schools, hospitals, and government facilities. Unlike standard office locks, the 10XG24 features a robust pushbutton locking mechanism on the interior lever. When the button is depressed, the outside lever remains locked even after the door is closed, ensuring your workspace remains secure until manually unlocked by a key or the inside handle.
Heavy-Duty Security and Resilience
The 10XG24 is designed to provide "maximum resistance to vandalism." It is UL-verified to exceed 20 million cycles, providing a service life up to 20 times longer than standard Grade 1 locks. In physical attack testing, it withstands 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, maintaining security where lesser hardware would fail. Its independent return springs ensure the linear LL lever stays perfectly horizontal, eliminating lever sag even after decades of constant use.
Reliable Operation in Real-World Conditions
Facility doors are rarely perfect, which is why the Sargent 10XG24 is engineered to handle 100lb of latch preload. This ensures the latch retracts smoothly even if the door is warped or the building has settled, preventing "latch bind" that often leads to lock failure. The non-handed design allows for easy installation on any door swing, while the innovative pushbutton is recessed to prevent damage from door stops or wall impacts.
Key Product Features
- Entrance/Office Function: Outside lever locked by interior pushbutton; unlocked by key outside or rotating the inside lever.
- Persistent Locking: Closing the door does not unlock the outside lever, providing consistent security for unoccupied offices.
- Extreme Cycle Life: UL-verified for 20 million cycles—the highest performance rating in the industry.
- Superior Vandal Resistance: Withstands over 100 vertical impacts, 20 times the requirements of ANSI/BHMA A156.2.
- ADA & Life Safety Compliant: Ergonomic LL lever design meets accessibility requirements and is UL Listed for 3-hour fire doors.
- Severe Weather Certified: Rated for windstorm and hurricane resistance, including Florida Building Code compliance.
Technical Specifications
| Feature | Details |
| Function | 24 Entrance or Office (F82) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options available) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Standard adjustment) |
| Latching | 1/2" Throw Stainless Steel Deadlocking |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- Executive Offices: For managers who require their door to remain locked to the public after they exit.
- Educational Facilities: Secure storage or faculty rooms in high-abuse campus environments.
- Healthcare & Hospitals: Reliable, fire-rated security for consultation rooms and labs.
- Manufacturing Plants: Built to withstand the vibration and impact of industrial settings.
Ordering & Installation Information
The Sargent 28-10XG24 is designed for rapid installation, with pre-assembled components that allow it to be fitted in under a minute. For doors thicker than 2", please specify the 31- Option for extended hardware. This lock supports all major Sargent Key Systems, including Degree® and Signature, allowing for easy integration into your existing facility master key system.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F82A - Office/ Entry |
| Trim Design | LL |
| Series | Sargent - 10X Line |
