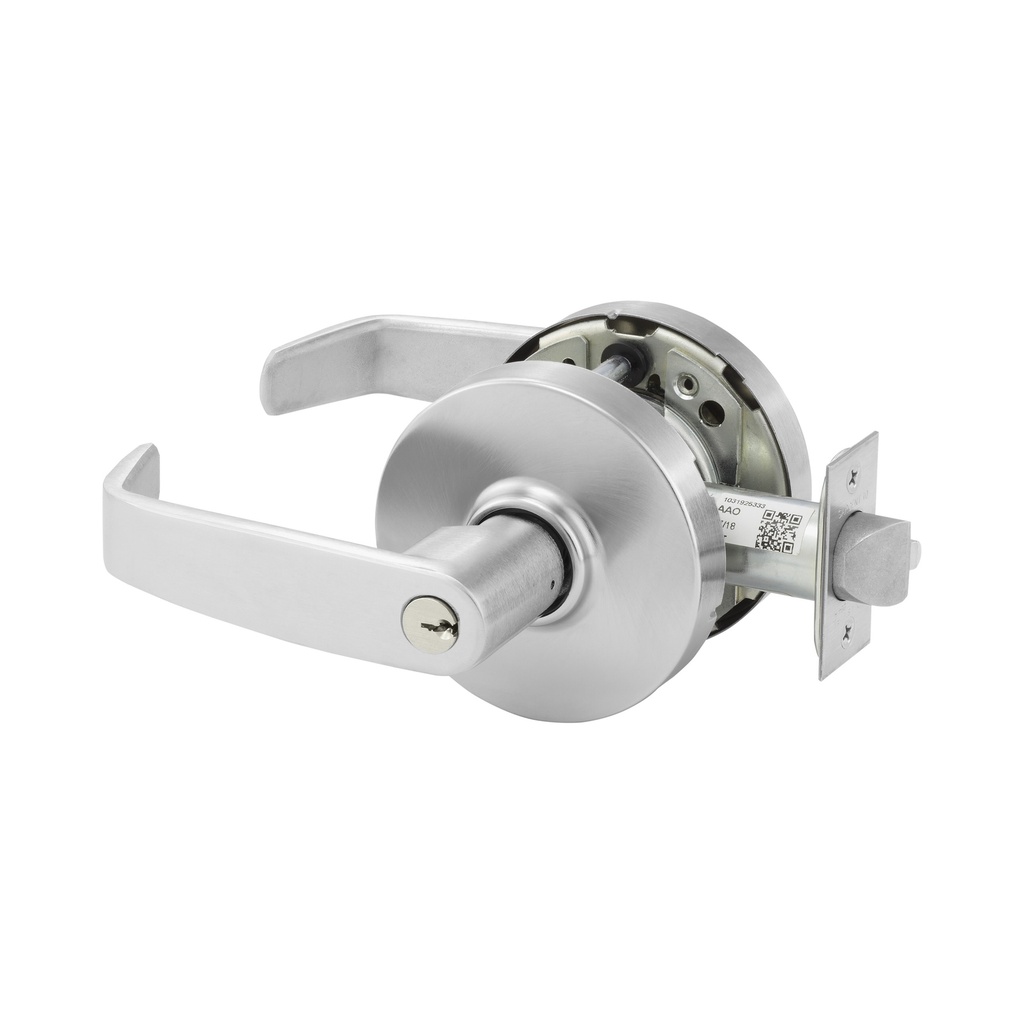

Sargent 28-10XG30 LL Communicating Lever Lockset
Function Information:
The Sargent 28-10XG30 LL is a professional-grade Grade 1 Cylindrical Lock engineered for high-security "Communicating" (F80) applications. As a cornerstone of the Sargent 10X Line, this lockset is designed to protect high-abuse, high-traffic spaces like schools, hospitals, and government facilities. The Communicating Function features a keyed cylinder on one side and a blank plate on the other, specifically for doors where entry must be strictly controlled from a single side and prohibited from the other. Built to exceed standard performance metrics by up to 20 times, the 10XG30 is the ultimate solution for utility closets, mechanical rooms, and secure storage areas.
Industrial-Strength Security and Vandal Resistance
The 10XG30 is engineered to survive where other locks fail. While standard Grade 1 locks are tested to 1 million cycles, the Sargent 10X line is UL-verified to withstand an incredible 20 million cycles. This lockset is nearly impenetrable to physical attacks, resisting over 3,100 in-lb of abusive torque and 1,600 lbs of offset pull. The freewheeling locked lever design allows the outside handle to rotate freely when locked, preventing vandals from using a pipe or wrench to snap the internal mechanism.
Reliable Operation in Demanding Environments
Facility doors often face challenges like warping or building settlement. The 10XG30 is engineered to handle 100lb of latch preload, ensuring the stainless steel deadlocking latch retracts smoothly even when the door is under pressure. Its independent return springs prevent lever sag, keeping the modern, ergonomic LL linear lever perfectly horizontal for the entire life of the product.
Key Product Features
- Communicating Function: Keyed lever on one side; secure blank plate on the other for one-way access control.
- Extreme Cycle Life: UL-verified for 20 million cycles, providing the lowest total cost of ownership in its class.
- Vandal-Proof Security: Features a freewheeling lever to deflect excessive force and prevent forced entry.
- ADA & Life Safety Compliant: Meets ANSI A117.1 accessibility standards and is UL/cUL Listed for 3-hour fire doors.
- High-Impact Construction: Withstands 100 vertical impacts, outperforming ANSI/BHMA A156.2 requirements by 20 times.
- Severe Weather Rated: Windstorm and Hurricane certified, including compliance with the Florida Building Code.
Technical Specifications
| Feature | Details |
| Function | 30 Communicating (F80) |
| Series | 10X Line Heavy-Duty Cylindrical |

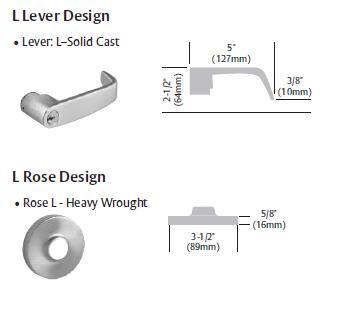

| Lever Design | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Latching | 1/2" Throw Stainless Steel Deadlocking |
| Handing | Non-handed (Reversible) |
Ideal Applications
- Institutional Security: Secure mechanical rooms, janitorial closets, and equipment storage requiring keyed entry.
- Healthcare & Hospitals: Restricting access to sensitive pharmacy or medical supply areas from public corridors.
- Commercial Real Estate: High-traffic utility rooms and data centers.
- Industrial Environments: Built to survive the vibration and impact of manufacturing plants.
Ordering & Installation Information
The Sargent 28-10XG30 is designed for fast, error-free installation. For doors thicker than 2", please specify the 31- Option for extended hardware. This lockset is compatible with all Sargent Key Systems, including Degree®, Signature, and Keso, allowing it to integrate perfectly into your existing master key schedule.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F80 - Communicating |
| Trim Design | LL |
| Series | Sargent - 10X Line |
