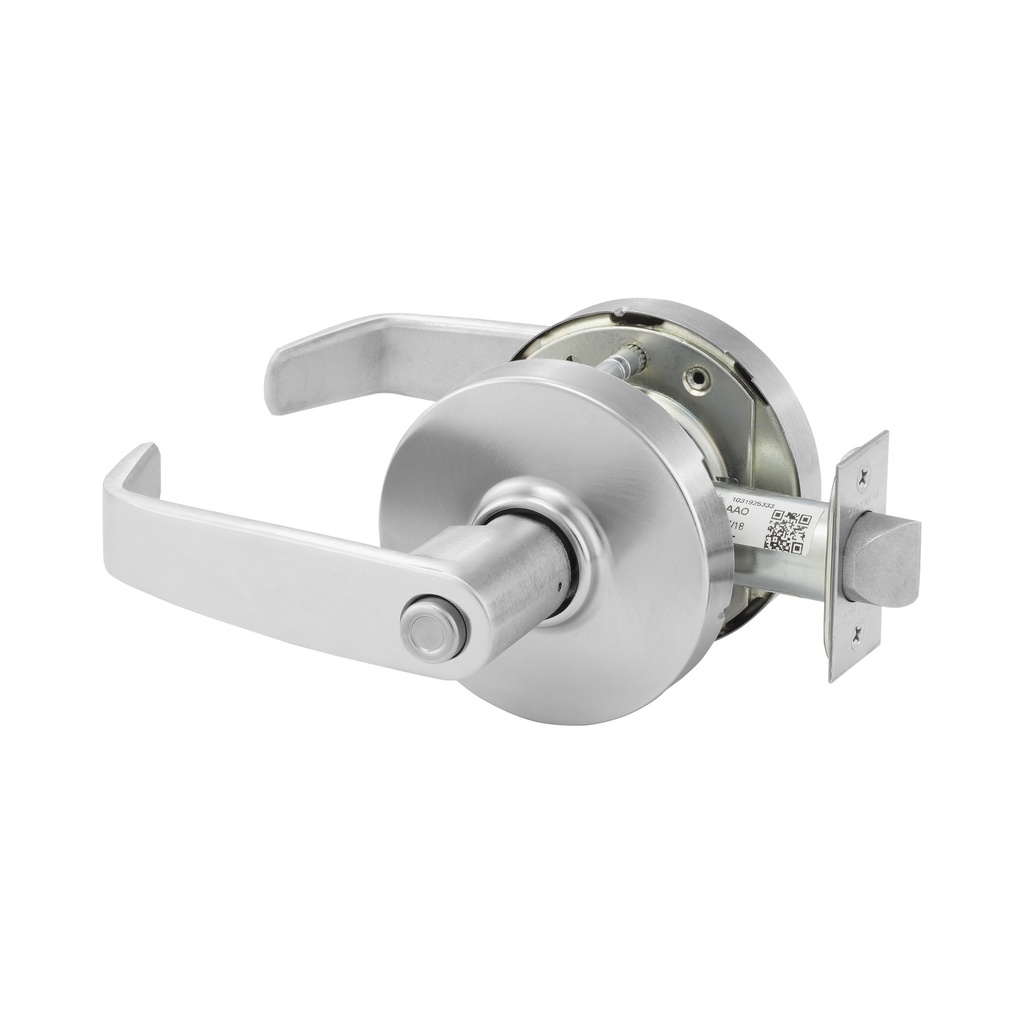

Sargent 28-10XG54 LL Corridor/Dormitory Lockset
Function Information:
The Sargent 28-10XG54 LL is an elite Grade 1 Cylindrical Lock engineered for the rigorous security and life-safety demands of student housing, military barracks, and multi-family corridors. As a cornerstone of the Sargent 10X Line, this lockset is designed for "Corridor or Dormitory" (F90 modified) applications where persistent security and reliable egress are mandatory. Built to outperform the competition, the 10X line is tested to 20 million cycles, providing a secure, institutional-grade solution that virtually eliminates the need for frequent maintenance or replacement.
Professional Security for Residential Living
The 10XG54 offers a sophisticated locking profile tailored for high-density living. The outside lever is locked or unlocked by a key from the outside or by an interior turn button. A key in the outside lever will always retract the latchbolt. For maximum safety, rotating the inside lever always provides immediate, free egress and automatically releases the turn button to prevent accidental lockouts. To defend against unauthorized entry, the deadlocking latch protects against "shimming," while the freewheeling lever design protects the internal chassis from damage if the handle is forced while in the locked position.
Unrivaled Durability and Vandal Resistance
The Sargent 10X series is built for high-abuse environments. While standard Grade 1 locks are tested to 1 million cycles, the 10X is UL-verified to exceed 20 million cycles, ensuring the lowest total cost of ownership over the building's lifespan. It is engineered to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, maintaining its structural integrity even under physical attack. Its independent return springs ensure the linear LL lever stays perfectly horizontal, eliminating lever sag even after millions of operations.
Key Product Features
- Corridor/Dormitory Function: Interior turn button locking with exterior key override; ideal for student housing and staff quarters.
- Ultimate Durability: UL-verified for 20 million cycles, providing 20x the longevity of standard Grade 1 hardware.
- ADA & Life Safety Compliant: Ergonomic LL lever design meets all accessibility requirements and is UL/cUL Listed for 3-hour fire doors.
- Vandal-Proof Engineering: Designed to withstand high-impact vertical forces and extreme torque without failure.
- Reliable Latching: Stainless steel deadlocking latch with 1/2" throw, engineered to operate smoothly even under 100 lbs of latch preload.
- Severe Weather Rated: Windstorm and Hurricane certified, including compliance with the Florida Building Code and Miami-Dade requirements.
Technical Specifications
| Feature | Details |
| Function | 54 Corridor / Dormitory (F90 Modified) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options available) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Cylinder | 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- University Dormitories: Robust enough for student housing where locks face constant use and residential-style privacy needs.
- Military Barracks: High-security residential quarters requiring fire-rated, windstorm-certified hardware.
- Assisted Living Facilities: Easy-to-use turn button locking with reliable staff emergency override via key.
- Corporate Suites: Securing interior residential-style suites or specialized management offices.
Ordering & Installation Information
The Sargent 28-10XG54 is non-handed, allowing for a universal fit on any door swing. For doors thicker than 2", please specify the 31- Option. This chassis supports a wide variety of Sargent Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for facilities requiring rapid re-keying between tenants or residents.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |

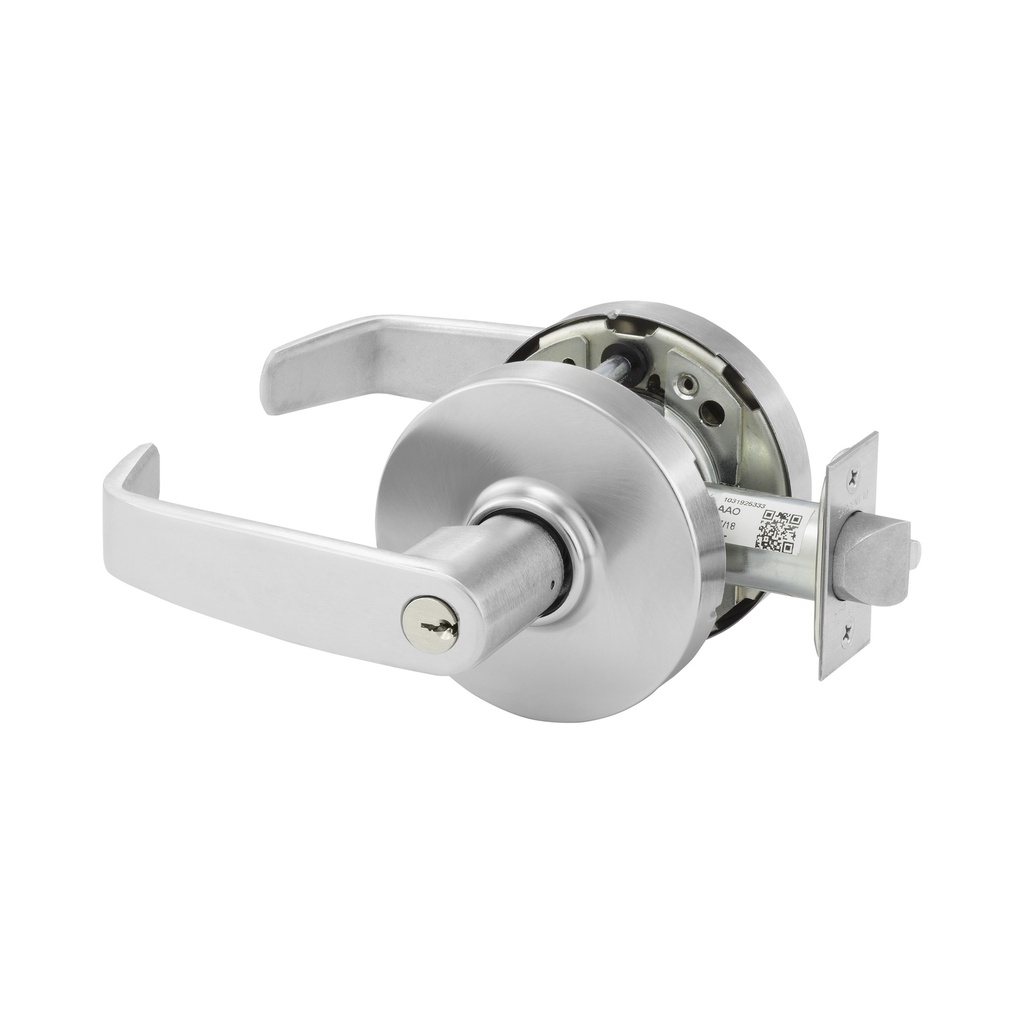

| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F90 - Corridor |

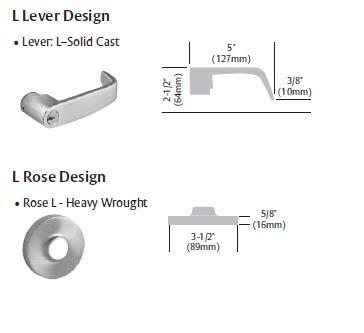

| Trim Design | LL |
| Series | Sargent - 10X Line |
