Sargent 28-10XG71 BHW Electric Lockset Fail Secure, Cylindrical Lockset, Grade 1 Heavy Duty
Function Information:
The Sargent 28-10XG71 BHW is a state-of-the-art Electrified Grade 1 Cylindrical Lockset designed for high-security applications where remote access control is mandatory. As part of the elite Sargent 10X Line, this lockset is engineered to exceed industry standards for durability and strength by up to 20 times. The Fail Secure (71) function ensures that the door remains locked from the outside when power is removed, providing a reliable physical barrier for sensitive areas like server rooms, evidence storage, and high-value commercial suites.
Advanced Fail Secure Electromechanical Function
The 10XG71 function is a specialized electrified solution that integrates seamlessly with card readers, keypads, and other access control systems.
- Fail Secure Mode: In the event of a power outage or system failure, the outside lever remains locked. Entry is only possible via a physical key or when power is restored to the unit.
- Safety & Egress: Regardless of the power status, the inside lever always allows for constant free egress, ensuring full compliance with fire and life safety codes.
- EcoFlex® Technology: This model utilizes EcoFlex technology, which reduces energy consumption by up to 92% compared to standard electrified locks, making it ideal for large-scale facilities.

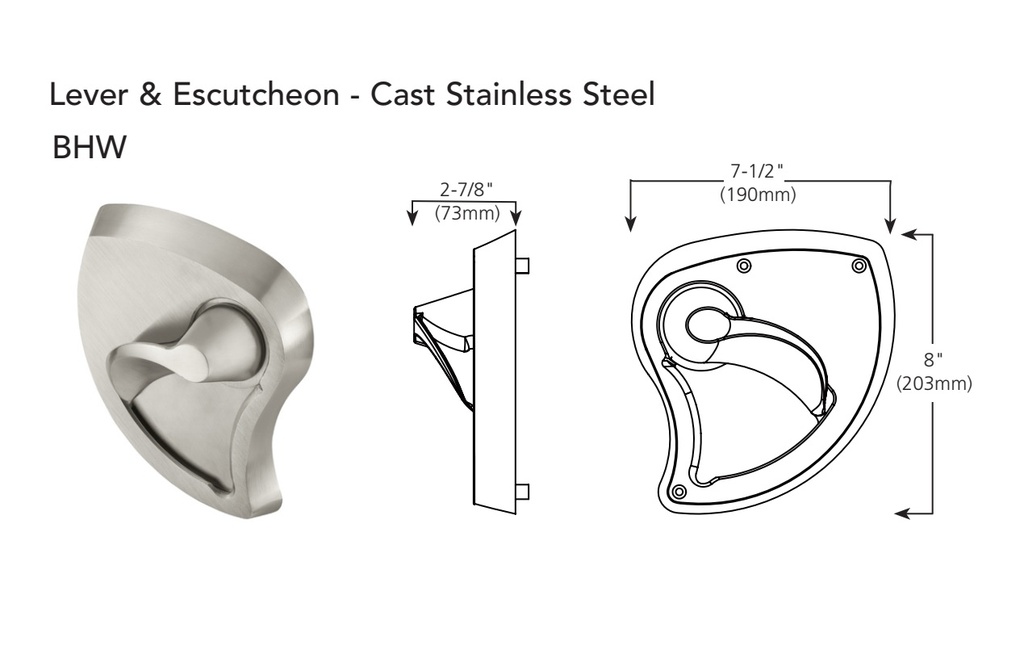

BHW Trim: Safety-Focused Architectural Design
The BHW lever style is a hallmark of the Sargent Behavioral Health Series, providing a streamlined and safety-conscious profile without the institutional look of traditional security hardware.
- Ligature-Resistant Features: The tapered surfaces of the BHW lever are designed to reduce attachment points, making it a cost-effective choice for therapeutic environments and high-traffic healthcare corridors.
- Extreme Abuse Resistance: Built to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, protecting your access control system from physical tampering.
- 20 Million Cycle Rating: UL-verified to exceed 20 million cycles, providing the lowest total cost of ownership for any electrified bored lock in the market.
Key Product Features
- Fail Secure (71): Power-off locks the outside lever; key override and free inside egress always available.
- Voltage Flexibility: Available in 12VDC or 24VDC regulated power (please specify at checkout).
- Integrated Connectivity: Provided with a Sargent ElectroLynx® 8-Pin Connector for rapid, "plug-and-play" installation.
- ADA & Life Safety: Fully accessible BHW lever is UL/cUL Listed for 3-hour fire-rated doors.
- Vandal Protection: Features a rigid locked lever standard (freewheeling available) to protect the internal electromechanical chassis.
- Independent Return Springs: High-strength springs prevent lever sag, keeping your facility looking professional and level.
Technical Specifications
| Feature | Details |
| Function | 71 Electromechanical (Fail Secure) |
| Series | 10X Line Heavy-Duty Electrified |
| Lever Design | BHW (Tapered / Ligature-Resistant) |
| Operating Voltage | 12VDC or 24VDC (Regulated) |
| Amp Draw | 250mA @ 24VDC |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Warranty | 10-Year Mechanical / 2-Year Electrical |
Ordering & Installation Information
The Sargent 28-10XG71 BHW is designed for integration into sophisticated security networks. For doors thicker than 2", please specify the 31- Option. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Door Handing | LH or RH or RHR or LHR |
| Backset | 2-3/4" Backset or 3 3/4" Backset or 5" Backset |
| Brand | Sargent |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Voltage | 12 VDC, 24 VDC |
| ANSI Cyl Lock Function | Fail Secure |
| Trim Design | BHW |
| Series | Sargent - 10X Line |
