Sargent 10XU93 LL Single Dummy Lever

https://www.doorwaysplus.com/web/image/product.template/4509/image_1920?unique=52a0aba

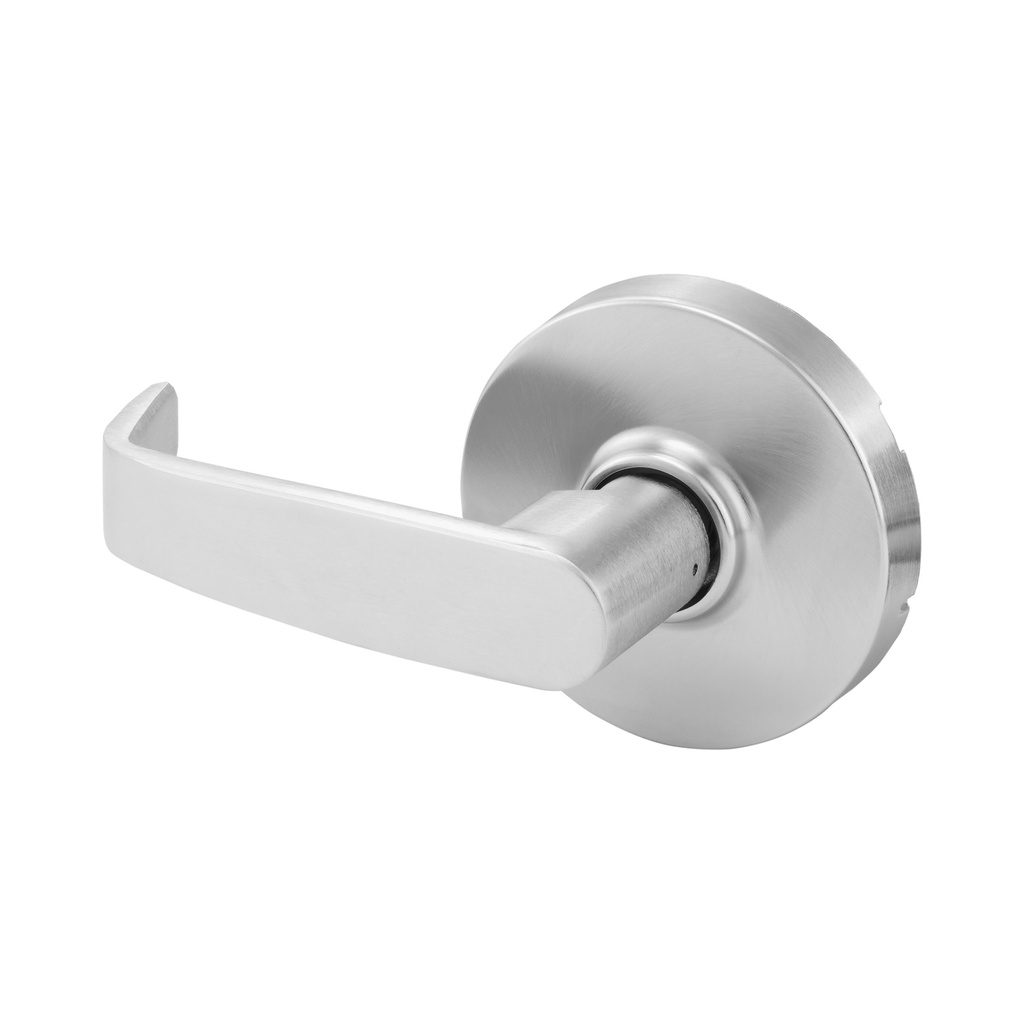

Sargent 10 Line 10XU93 LL Single Dummy Lever Pull

$ 186.49 186.49 USD $ 186.49

$ 186.49

Not Available For Sale

  • Finish with BHMA code
  • Brand
  • ANSI Cyl Lock Function
  • Trim Design
  • Series

This combination does not exist.

Contact Us
Share :

Sargent 10 Line 10U93 LL Single Dummy Lever Pull

Function Information:
Lever and rose attached by two through-bolts and two surface applied screws
Requires special door preparation — see template
Fixed Lever (no mechanical movement)

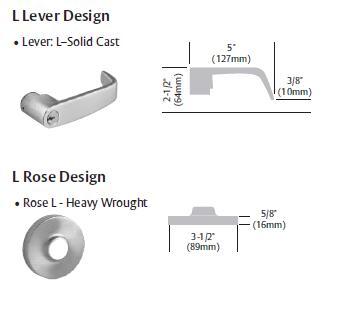

Sargent 10 Line Series diagram

Sargent 10 Line Specifications:

For Doors                     1-3/4" (44mm) Thick Door standard, 1-3/8" (35mm) thick door, 1- Option for Adapter plates
Backset                         2-3/4" (70mm) Backset standard. 2-3/8" (60mm) backset w/ 1" wide front (specify 20-), 3-3/4" (95mm) backset w/ 1-1/8" front (specify 23-),
                                        5" (127mm) backset w/ 1-1/8" Front (specify 25-)
Cylindrical Housing     Steel, zinc dichromate finish
Front                              Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel. 2-1/4" (57mm) x 1" (25mm) (included with 20-)
Strike                             Wrought brass or stainless steel. 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option), Wrought box strike available (WBS- option)
Hand                              All 10 Line Locks are non-handed except for the G & Y Levers
Roses                             Heavy wrought brass and bronze
Latch                             Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Cylinder                         Brass, 6 pin, LA keyway standard
Keys                              Two, nickel silver
Masterkeying              Can be master keyed or grand master keyed Construction key systems available
Finishes                       03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
Door Prep                    161 Door Prep Modified, 160 Door Prep Modified (specify 20-)
Minimum Stile             4-1/2" (114mm)
Warranty                       7 Year Warranty

Certification Compliance
ANSI                             Certified ANSI A156.2 Series 4000 — Grade 1
UL                                 UL listed to U.S.A. and Canadian safety standards, Listed for 3 hour doors (double doors require 41- option)
Positive Pressure       Meets UL 10C and UBC 7-2 (1997)
ADA                              All levers conform to ADA requirement for barrier-free accessibility
California Code          Levers (L, J & P) conform to California Administrative Code Title 19 and 24
Hurricane Code          All Individual components of a total door opening are required to comply with each code


Finish with BHMA code 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome
Brand Sargent
ANSI Cyl Lock Function Dummy - Sgl Sided
Trim Design LL
Series Sargent - 10X Line
