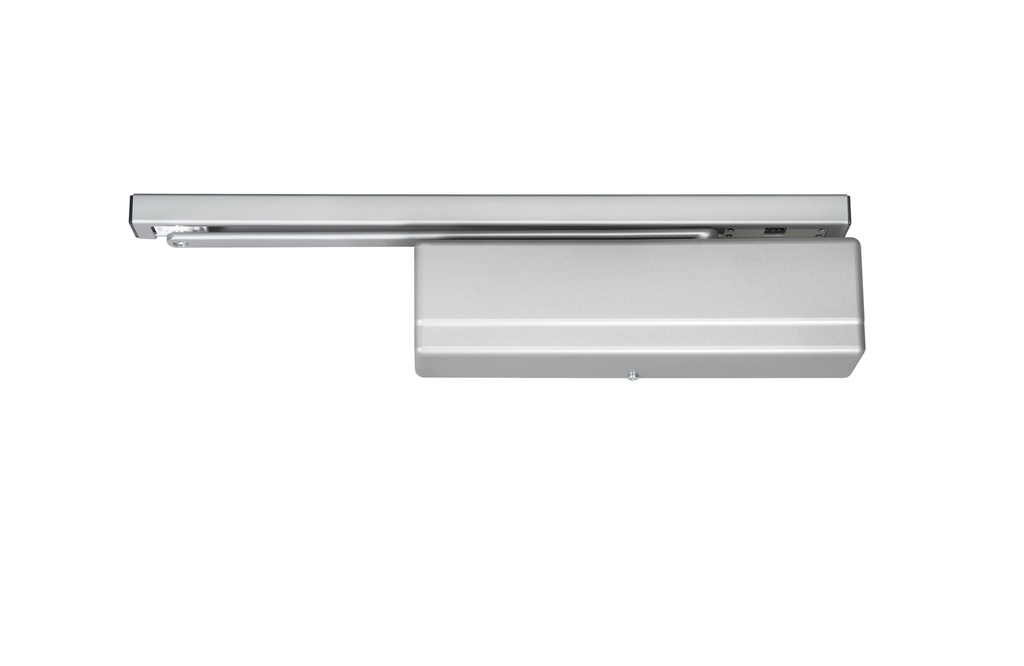

Sargent 1431 OTB Powerglide® Door Closer | Pull Side Track Arm with Bumper
The Sargent 1431 OTB Door Closer is a premier, architectural-grade solution engineered for high-traffic commercial and institutional environments. As a cornerstone of the Powerglide® series, the 1431 OTB features a Standard Pull Side Track Arm equipped with an integrated Track Bumper. This design provides a sleek, low-profile alternative to traditional projecting arms, mounting the track directly to the frame face on the pull side of the door. The built-in bumper assists the hydraulic backcheck by cushioning the door near its maximum opening angle, significantly reducing wear and tear on the door and frame.
Constructed from a robust 14% silicon aluminum alloy, the one-piece die-cast body offers exceptional durability and is certified to ANSI/BHMA Grade 1 standards. This non-handed closer is field-adjustable for spring power sizes 1 through 6, ensuring it can be tuned to meet specific door weights and draft conditions. Designed for both interior and exterior applications, the 1431 OTB is pre-filled with all-weather hydraulic fluid to maintain consistent performance in extreme temperatures without manual intervention.
Advanced Engineering & Safety Features
- Integrated Track Bumper: The OTB track includes a specialized bumper that assists backcheck by cushioning the door swing. Note: This bumper is a cushioning device and does not replace the requirement for an auxiliary floor or wall stop.
- Precision Control Valves: Separate brass, low-sensitivity valves allow for independent regulation of closing speed, latching speed, and backcheck intensity.
- Tamper-Resistant Security: All adjustment valves are recessed, operated by an 1/8" Allen wrench, and captivated within the body to prevent unauthorized removal or vandalism.
- Superior Durability: Features a 1-1/2" diameter piston and heat-treated full closed rack and pinion for precision control from the full open position down to the final latch.
- Fire Safety Compliance: UL/cUL listed for use on fire-rated doors and conforms to UL10C and UBC positive pressure standards.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 1431 OTB (Pull Side Track with Bumper) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Spring Power | Adjustable Size 1 through 6 (Preset to 3) |
| Arm Type | Forged Steel Arm with Extruded Aluminum Track |
| Maximum Opening | 120° (with bumper track); up to 160° (standard track) |
| Minimum Top Rail | 2-3/8" (Mounting plates cannot be used) |
| Body Material | 14% Silicon Aluminum Alloy |
| Warranty | 25-Year Limited Mechanical Warranty |
Installation & Architectural Compatibility

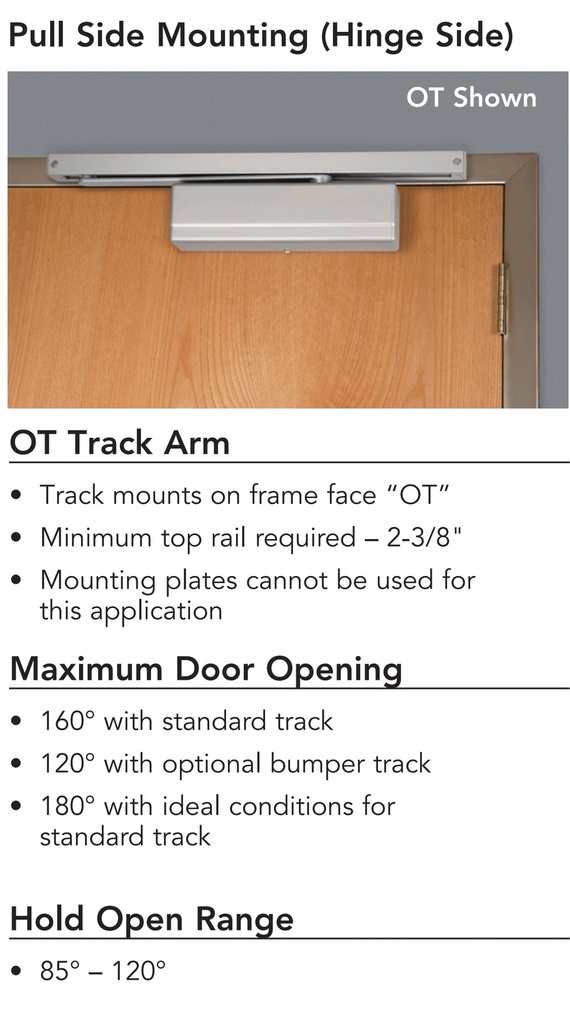

The Sargent 1431 OTB is designed for pull-side mounting on the door leaf with the track installed on the frame face. The unit comes standard with a high-impact, non-corrosive plastic cover and includes self-sticking templates for a "user-friendly" installation. To ensure a rigid and permanent attachment to wood or mineral core doors, this closer is supplied with Sargent thru bolts.
- Stocked Finishes: Available at DoorwaysPlus.com in architectural enamel: Aluminum (EN), Dark Bronze (EB), and Brass (EAB).
- MicroShield® Finish: Available with an optional silver-based antimicrobial coating that suppresses the growth of bacteria, algae, and mold.
- Retrofit Friendly: The 1431 Series is a direct replacement for older Sargent 1230/1231 installations, utilizing the same mounting hole pattern.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | Track Arm |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
