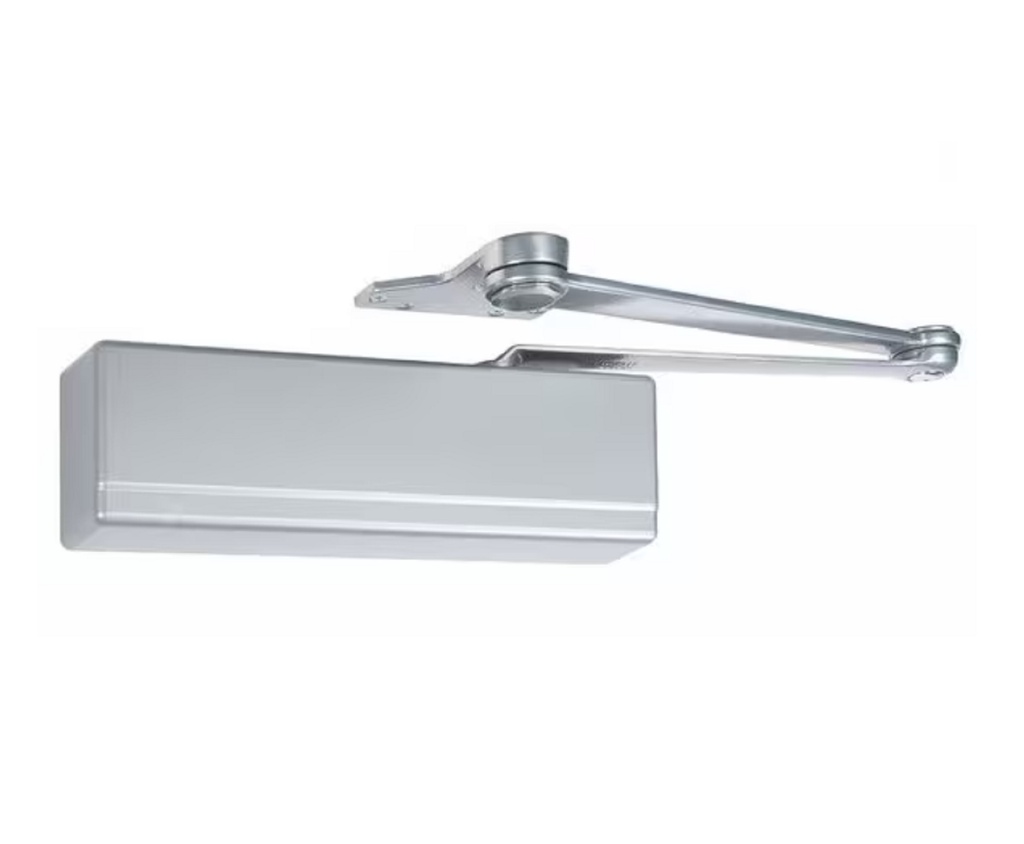

Sargent 1431 P10 Powerglide® Door Closer | Heavy Duty Parallel Arm
The Sargent 1431 P10 Door Closer is a high-performance, Grade 1 commercial door closer engineered for the most demanding high-traffic environments. As a cornerstone of the Powerglide® 1431 Series, this model features the P10 Heavy Duty Parallel Arm, specifically designed for "push side" installations where a standard arm is insufficient. Whether installed in a busy corridor, a school entrance, or a healthcare facility, the 1431 P10 delivers unmatched reliability and smooth hydraulic control.
Forged from a high-silicon aluminum alloy, the one-piece closer body and heat-treated rack and pinion mechanism are built to withstand heavy use and potential abuse. This non-handed closer features adjustable spring power from Size 1 to 6, ensuring it meets ADA accessibility requirements while providing the robust closing force needed for large exterior or fire-rated doors.
Professional Grade Features & Engineering
- Heavy Duty P10 Parallel Arm: Forged steel construction provides superior strength and resistance to bending or warping in high-frequency applications.
- Superior Hydraulic Control: A large 1-1/2" diameter piston ensures precise door movement, backed by independent brass valves for closing speed, latching speed, and backcheck.
- All-Weather Performance: Formulated with all-weather hydraulic fluid that remains stable in extreme temperatures, preventing the need for seasonal adjustments.
- Fire-Rated Security: UL/cUL listed for use on fire doors (up to 3 hours) and compliant with UL10C positive pressure standards.
- Built-In Protection: Standard pressure relief valves protect the door and frame from damage caused by forced closing or high-wind events.
- Antimicrobial Innovation: Available with the MicroShield® silver-based coating to suppress the growth of bacteria, algae, and mold.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 1431 P10 (Powerglide® Series) |
| Arm Type | Heavy Duty Forged Steel Parallel Arm |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Body Material | One-Piece High-Silicon Aluminum Alloy |
| Handing | Non-Handed (Field Reversible) |
| Piston Diameter | 1-1/2" for Enhanced Control |
| Fire Rating | UL-cUL Listed (Up to 3-Hour Fire Doors) |
| Warranty | 25-Year Limited Mechanical Warranty |
Installation & Compatibility
The Sargent 1431 P10 is designed for a seamless professional installation. It serves as an ideal retrofit solution for existing Sargent 1230/1231 Series installations, utilizing the same footprint to minimize labor costs during hardware upgrades. The package includes high-impact, non-corrosive plastic covers, though metal and lead-lined covers are available for specialized institutional needs.
Available at DoorwaysPlus.com in three architectural finishes: Aluminum Enamel (EN), Dark Bronze Enamel (EB), and Brass Enamel (EAB).
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | HD Parallel Arm |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 11 1/8" x 1" |
