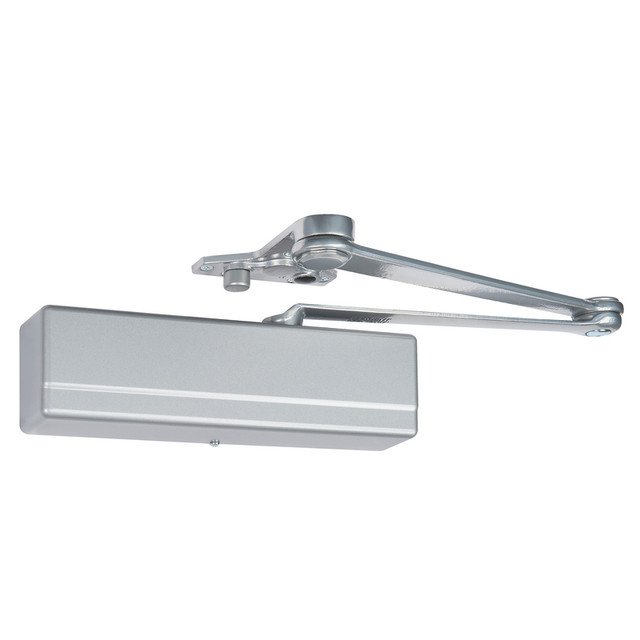

Sargent 1431 PS Powerglide® Door Closer | Heavy Duty Parallel Arm with Positive Stop
The Sargent 1431 PS Door Closer is a premium, high-security solution designed specifically for demanding commercial and institutional environments. Part of the industry-leading Powerglide® series, this ANSI/BHMA Grade 1 surface-mounted closer is equipped with a Heavy Duty Parallel Arm (PS) that includes a built-in positive stop. This integrated stop protects both the door and the adjacent wall by mechanically limiting the door's opening range from 85° to 110°, making it ideal for corridors or exterior doors where an overhead stop is not feasible.
Constructed with a heavy-duty, one-piece aluminum alloy body and a heat-treated full rack and pinion, the 1431 PS is engineered to exceed 25 million cycles. It features a non-handed design and adjustable spring power (sizes 1–6), ensuring it meets strict ADA accessibility requirements while providing the strength needed for heavy fire-rated doors. With its all-weather fluid, this closer delivers consistent hydraulic control in extreme temperatures without the need for seasonal adjustments.
Key Performance Features

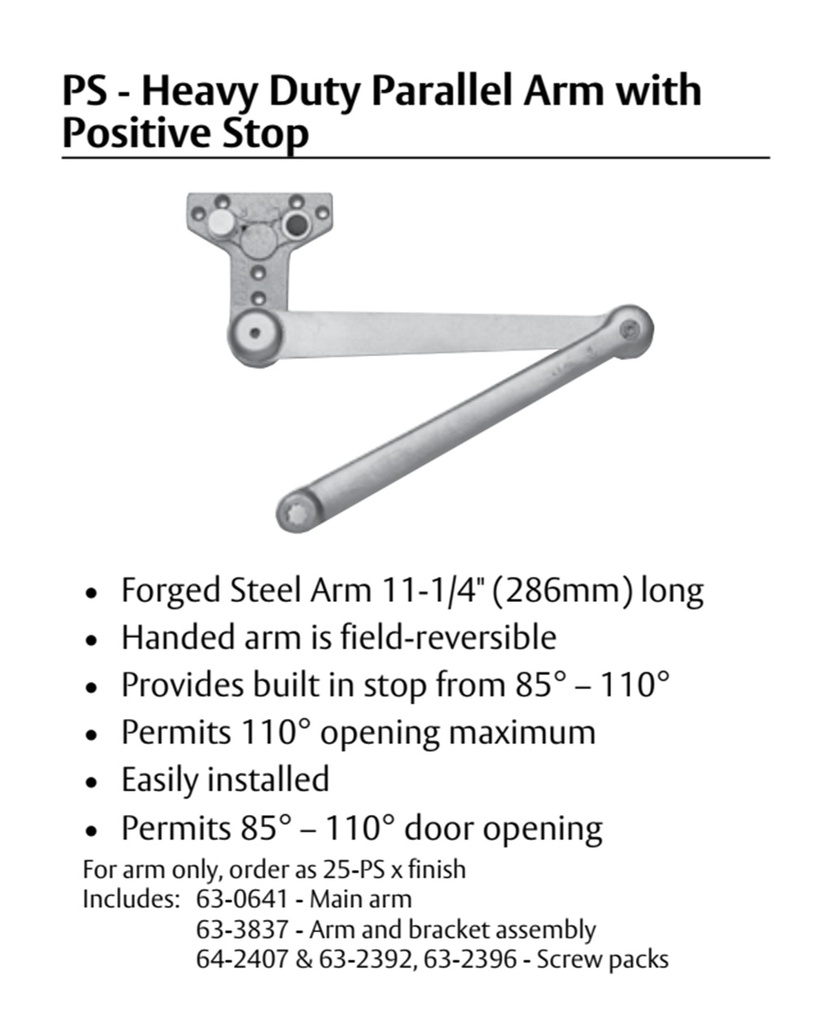

- Positive Stop Protection: The forged steel PS arm provides a built-in mechanical stop, preventing the door from over-swinging and causing damage to hardware or the building structure.
- Superior Hydraulic Control: A large 1-1/2" diameter piston provides precise door control, complemented by separate brass valves for independent adjustment of closing speed, latching speed, and backcheck.
- Fire & Safety Certified: UL/cUL listed for use on fire-rated doors (up to 3 hours) and conforms to UL10C for positive pressure fire tests.
- Abuse Resistance: Standard pressure relief valves protect the door and frame from damage caused by forced closing or excessive wind.
- MicroShield® Antimicrobial Option: Available with a silver-based coating that suppresses the growth of bacteria, mold, and mildew—essential for healthcare and educational facilities.
- Retrofit Friendly: Designed to directly replace discontinued Sargent 1230 and 1231 series closers using existing mounting holes.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 1431 PS (Powerglide® Series) |
| Certification | ANSI/BHMA Grade 1 (A156.4) |
| Arm Type | Heavy Duty Parallel Arm w/ Positive Stop |
| Stop Range | Built-in stop between 85° – 110° |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Body Material | High-Silicon Aluminum Alloy |
| Piston Diameter | 1-1/2" for Enhanced Control |
| Handing | Non-Handed (Field Reversible Arm) |
| Fire Rating | UL-cUL Listed (Up to 3-Hour Fire Doors) |
| Warranty | 25-Year Limited Mechanical Warranty |
Architectural Finishes & Installation
The Sargent 1431 PS is available at DoorwaysPlus.com in several durable architectural finishes to match your facility's aesthetic, including Aluminum Enamel (EN), Dark Bronze Enamel (EB), and Brass Enamel (EAB). This closer is typically supplied with Thru Bolts (TB), machine screws, and self-tapping screws to ensure a secure installation on wood, metal, or glass doors.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | HD Positive Stop |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 11 1/8" x 1" |
