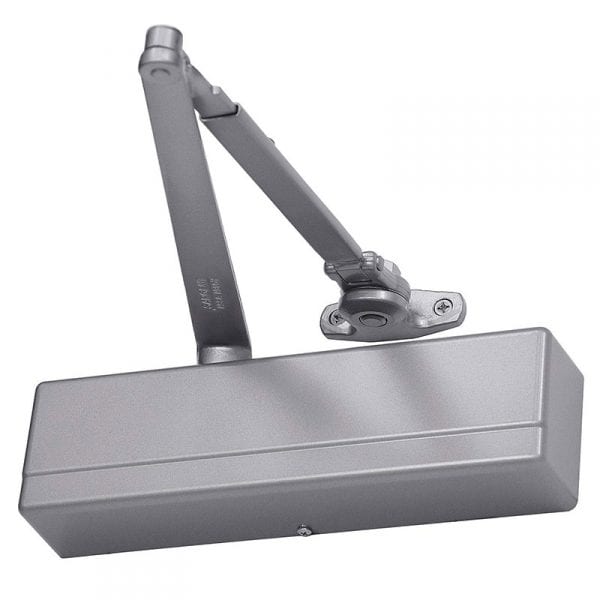

Sargent 1431 UH Powerglide® Door Closer | Universal Friction Hold Open Arm
The Sargent 1431 UH Door Closer is a high-performance, Grade 1 commercial door closer engineered for maximum versatility and durability. As part of the prestigious Powerglide® series, the 1431 UH features a Universal Friction Hold Open Arm, allowing the door to be secured in an open position at a user-defined angle. This "one-box" solution is designed for Regular, Top Jamb, or Parallel Arm mounting, providing facility managers and contractors with the ultimate flexibility for nearly any door application.
Constructed from a high-silicon aluminum alloy with a heat-treated full rack and pinion, this closer is built to withstand the rigors of high-traffic institutional settings like schools and hospitals. The 1431 Series is UL/cUL listed for use on fire doors and features adjustable spring power from Size 1 to 6, ensuring compliance with ADA accessibility standards while maintaining the strength to control heavy exterior doors.
Professional Grade Features
- Universal Friction Hold Open: The UH arm allows the door to be held open at any position, which is ideal for high-traffic transition periods or delivery access.

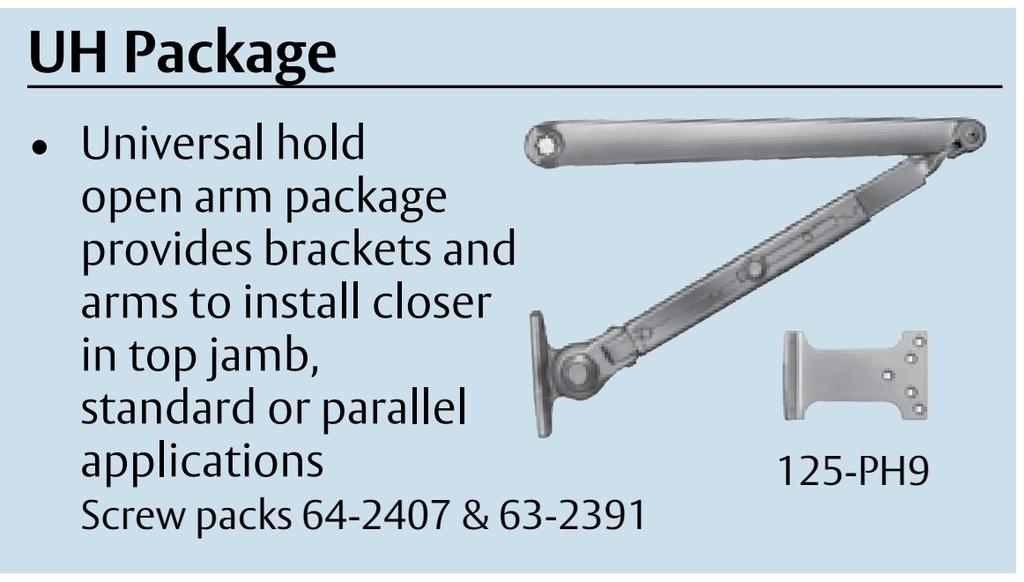

- Three Mounting Applications: Includes all necessary hardware for Regular Arm (pull side), Top Jamb (push side), and Parallel Arm (push side) installations.
- Precision Control Valves: Independent brass valves provide high-sensitivity adjustment for closing speed, latching speed, and backcheck intensity.
- Extreme Temperature Reliability: Uses specialized all-weather hydraulic fluid, ensuring consistent operation from summer heat to winter freezes without manual adjustment.
- Superior Durability: Certified to ANSI/BHMA A156.4 Grade 1 and backed by a 25-year limited warranty.
- Retrofit Optimized: Shares the same mounting footprint as the discontinued Sargent 1230 and 1231 series, making hardware upgrades fast and efficient.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 1431 UH (Powerglide® Series) |
| Certification | ANSI/BHMA Grade 1 (A156.4) |

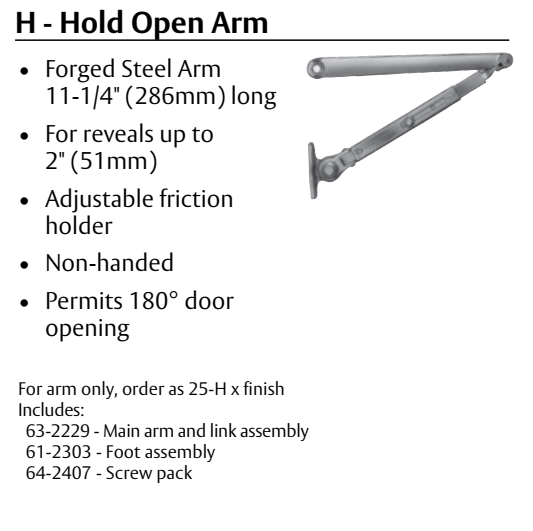

| Arm Type | Universal Friction Hold Open |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Piston Diameter | 1-1/2" for Enhanced Control |
| Handing | Non-Handed |
| Fire Rating | UL-cUL Listed (Up to 3-Hour Fire Doors) |
| Finish Options | EN (Aluminum), EB (Dark Bronze), EAB (Brass) |
| Warranty | 25-Year Limited Mechanical Warranty |
Architectural Compatibility & Innovation
The Sargent 1431 UH is designed to meet the highest standards of life safety and accessibility. For healthcare and food service environments, it is available with the MicroShield® antimicrobial coating, which permanently suppresses the growth of bacteria and mold. The non-corrosive plastic cover is standard, though optional metal and lead-lined covers are available for specialized security or medical imaging applications.
The Sargent 1431 UH ensures that your facility remains safe, secure, and easy to navigate. By utilizing a 1/2" arm engagement over a 7/16" square spindle, Sargent provides a wear-resistant joint that prevents the loosening often found in inferior commercial closers.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | Hold Open - Friction |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 11 1/8" x 1" |
