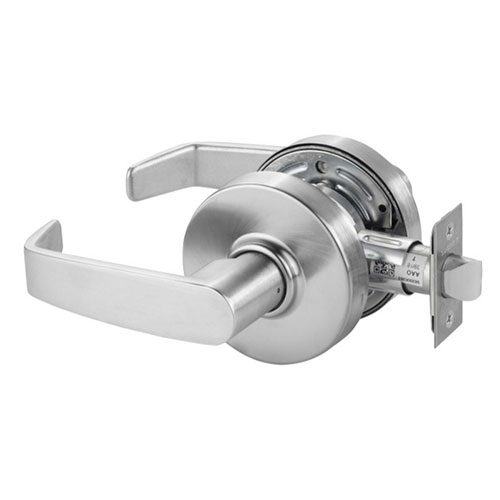

Sargent 28-7U15 LL Passage Function Cylindrical Latchset
Function Information:
The Sargent 28-7U15 LL is a professional-grade Grade 2 Cylindrical Passage Latchset engineered for high-traffic interior and exterior openings where locking is not required. As a standout in the Sargent 7-Line Series, this hardware provides an exceptional balance of mechanical reliability, modern architectural styling, and rapid installation. The 28-prefix ensures this unit is supplied with a 4-7/8" ASA Strike, the industry standard for commercial hollow metal frames. Featuring the contemporary LL Lever design, this latchset is built to surpass industry standards for both performance and longevity.
Engineered for Institutional Durability
The Sargent 7-Line is designed to outperform the baseline requirements for Grade 2 hardware, offering facility managers a "heavy-duty" feel in a versatile, standard-duty footprint:
- Superior Cycle Performance: This latchset significantly exceeds ANSI/BHMA A156.2 Grade 2 cycle requirements, ensuring years of maintenance-free service in busy commercial corridors.
- Rapid Installation: Engineered for maximum efficiency, the 7U15 can be installed in one minute or less, drastically reducing labor costs for large-scale facility retrofits.
- Structural Stability: Internal through-bolts supply unmatched strength and stability without requiring additional door preparation or complex drilling.
- 5-Year Limited Warranty: Sargent stands behind the 7-Line with a 5-year warranty that requires no maintenance or service to remain valid.
Versatile Passage Function (ANSI F75)
The 15 Passage Function is the premier choice for openings that require a secure latching mechanism without a locking feature, ensuring constant access and safety.
- Always Active Access: Both the interior and exterior levers are always unlocked and always retract the latchbolt, providing unrestricted movement between high-traffic spaces.
- ADA Compliant LL Lever: The linear, ergonomic LL design is crafted for ease of use, meeting all Americans with Disabilities Act requirements for operation without tight grasping or twisting.
- Solid Construction: Levers are solid, one-piece cast construction, providing a precise, high-quality feel that far exceeds residential-grade hardware.
- Universal Handing: The non-handed design allows for easy field installation on both left-hand and right-hand swinging doors, simplifying inventory management.
Technical Specifications
| Feature | Details |
| Series | Sargent 7-Line (Cylindrical) |
| Function | 15 Passage / Closet (ANSI F75) |
| Certification | Exceeds ANSI/BHMA A156.2 Grade 2 |

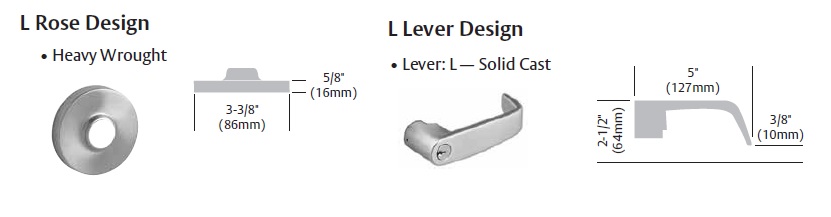

| Lever Style | LL Design (Linear / Contemporary) |
| Strike Plate | 4-7/8" ASA Strike (28-prefix / Standard) |
| Installation | One-Minute Install; Through-bolted stability |
| Backset | 2-3/4" (Standard Commercial) |
| Handing | Non-Handed (Universal Field Reversible) |
| Door Preparation | Fits modified 161 door preps |
| Construction | Solid one-piece cast levers |
Why Choose the Sargent 28-7U15 LL?
For contractors and facility managers at hospitals, schools, and corporate offices, the Sargent 28-7U15 LL is a high-value investment that avoids the premium cost of Grade 1 hardware while significantly outperforming residential-grade alternatives. It provides the professional look of a linear lever with the mechanical strength required for 24/7 public use.
Ideal Applications:
- Commercial Office Corridors: Providing a sleek, uniform look across hallway doors.
- Medical Facilities: Durable enough for the constant traffic of a healthcare clinic.
- Government Buildings: Grade 2 performance that meets strict public building standards.
- Educational Common Areas: A fire-rated solution for breakrooms and supply closets.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Brand | Sargent |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | LL |
| Series | Sargent - 7 Line |
