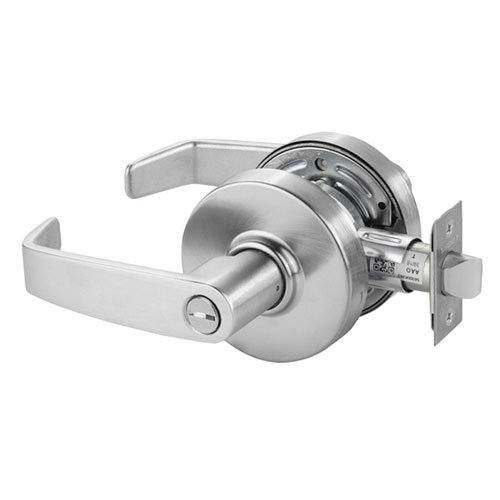

Sargent 28-7U65 LL Privacy Function, Cylindrical Latchset
Function Information:
The Sargent 28-7U65 LL is a professional-grade Grade 2 Cylindrical Privacy Latchset engineered to deliver superior performance in high-use commercial and institutional environments. Part of the versatile Sargent 7-Line Series, this latchset is specifically designed for restroom doors in offices, medical facilities, government buildings, and public spaces where a balance of personal privacy and rapid installation is required. The 28-prefix ensures this unit is supplied with the industry-standard 4-7/8" ASA Strike, facilitating seamless integration into commercial hollow metal frames.
Performance That Exceeds Standards
The Sargent 7-Line is built to outperform the baseline requirements for Grade 2 hardware. While standard commercial locks meet the minimum, Sargent engineered the 7U65 to provide a "heavy-duty feel" in a standard-duty footprint:
- Superior Cycle Life: This latchset significantly exceeds ANSI/BHMA A156.2 Grade 2 cycle requirements, ensuring years of maintenance-free operation in high-traffic restrooms.
- Rapid Installation: Engineered for efficiency, the 7U65 can be installed in one minute or less, drastically reducing labor costs for large-scale facility upgrades.
- Structural Integrity: Internal through-bolts supply maximum strength and stability without requiring additional door preparation or drilling.
- 5-Year Warranty: Backed by a 5-year limited warranty with no service required, providing a low total cost of ownership.
Privacy Function & Safety Features (ANSI F76)
The 65 Privacy Function is the premier choice for single-occupant spaces, providing essential privacy while maintaining critical emergency access.
- Push-Button Locking: The exterior lever is locked by pressing the push-button on the interior. This provides immediate privacy for the user.
- Automatic Reset Logic: Rotating the interior lever or closing the door automatically releases the push-button. This prevents accidental lockouts and ensures the door is ready for the next occupant.
- Emergency Access: For life-safety compliance, the exterior lever features an emergency release tool slot, allowing authorized personnel to unlock the door from the outside if a guest requires assistance.
- ADA Compliant LL Lever: The LL design features a linear, ergonomic profile that meets all Americans with Disabilities Act requirements, allowing for operation without tight grasping or twisting.
- Non-Handed Versatility: The universal design ensures the latchset can be installed on both left-hand and right-hand swinging doors, simplifying inventory and installation.
Technical Specifications
| Feature | Details |
| Series | Sargent 7-Line (Cylindrical) |
| Function | 65 Privacy / Bedroom / Bath (ANSI F76) |
| Certification | Exceeds ANSI/BHMA A156.2 - Grade 2 |
| Lever Style | LL Design (Linear / Contemporary) |
| Backset | 2-3/4" (Standard Commercial) |
| Strike Plate | 4-7/8" ASA Strike (28-prefix / Only) |
| Door Preparation | Fits modified 161 door preps |
| Installation | Through-bolted for stability; installs in < 1 minute |
| Handing | Non-Handed (Universal) |
| Security Options | Compatible with Torx® and spanner screws |
Why Choose the Sargent 28-7U65 LL?
For facility managers at hospitals, schools, and corporate offices, the Sargent 28-7U65 LL is a high-value security investment. It provides the architectural continuity of a solid, one-piece cast lever with the mechanical strength of a through-bolted chassis. By choosing the 7-Line, you gain a latchset that is user-friendly for both the installer and the end-user, ensuring reliable privacy for years to come.
Ideal Applications:
- Commercial Restrooms: Durable enough for the daily demands of office and retail traffic.
- Medical Facilities: Easy-to-clean solid levers with emergency override for patient safety.
- Government Buildings: Grade 2 performance that meets strict public building standards.
- Public Changing Areas: A secure, fire-rated solution for private stalls and locker rooms.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Brand | Sargent |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | LL |
| Series | Sargent - 7 Line |
| Occupancy Indicator | No |
