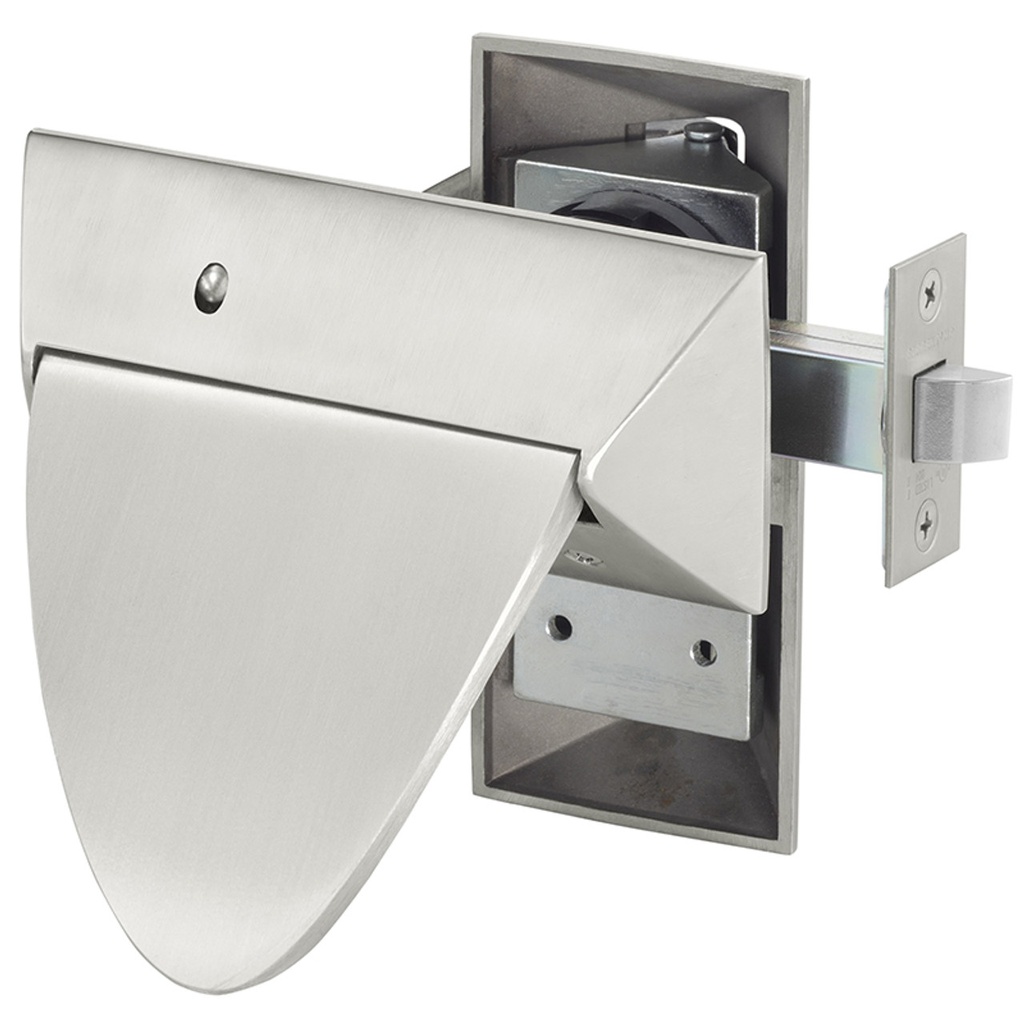

Sargent 28-HPU65 ALP US32D | HP Series Push/Pull Privacy Latchset
The Sargent 28-HPU65 ALP US32D is a high-performance Grade 1 bored lockset engineered for the rigorous demands of healthcare and institutional environments. Part of the innovative Sargent HP Series, this Privacy (65) function latchset features the sleek ALP push/pull trim, providing a superior ergonomic alternative to traditional lever handles. The intuitive paddle design supports Safer2Open™ low-touch protocols, allowing users to activate the door with a forearm or elbow—a critical feature for maintaining hygiene in hospitals and laboratories.
Crafted from cast stainless steel with a US32D Satin Stainless Steel finish, this lock is as durable as it is aesthetic. It is specifically designed for privacy applications such as patient bathrooms, where the inside paddle always retracts the latch, while the outside paddle can be locked via an inside push button. In compliance with safety standards, it includes an emergency release on the exterior to ensure staff access when necessary.
Professional Grade Security & Patient Safety
- Hands-Free Accessibility: The paddle's large surface area and placement create an easy target for activation without hand contact, ideal for staff moving with equipment or patients with limited mobility.
- Ligature-Resistant Architecture: The ALP trim is designed with smooth, sloping surfaces to minimize potential attachment points, supporting a safer environment in behavioral health settings.
- Heavy-Duty Performance: Certified to ANSI/BHMA Grade 1 standards, this latchset is built to withstand high-frequency use and physical abuse in commercial facilities.
- Flexible Field Mounting: The paddle trim is uniquely versatile, allowing for horizontal (up/down) or vertical (sideways) mounting orientations to meet specific facility requirements.
- Fire-Rated Reliability: This model is UL/cUL Listed for use on fire doors up to 3 hours, ensuring compliance with strict life-safety building codes.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 28-HPU65 ALP US32D |
| Function | Privacy (ANSI F22) - Ideal for bathrooms |
| Lock Type | Bored / Tubular Lock |
| Certification | ANSI/BHMA A156.2 Grade 1 |
| Material | Cast Stainless Steel (Covers and Paddles) |
| Standard Backset | 5" (127mm); (2-3/4" and 7" optional) |
| Strike | #808 ANSI Curved Lip Strike (4-7/8" x 1-1/4") |
| Door Thickness | 1-3/4" to 1-7/8" Standard |
| Finish | US32D / 630 (Satin Stainless Steel) |
Installation & Security Options
The Sargent 28-HPU65 is designed to be thru-bolted through the door, providing maximum stability and preventing the trim from loosening over time. It comes standard with a 1/4" trim ring (No. 97 rosette) and all necessary mounting hardware. For facilities requiring enhanced pathogen control, it can be ordered with the optional MicroShield® antimicrobial coating.
| Backset | 2-3/4" Backset or 7" Backset |
| Brand | Sargent |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | ALP |
| Series | Sargent - HP Series |
| Occupancy Indicator | No |
