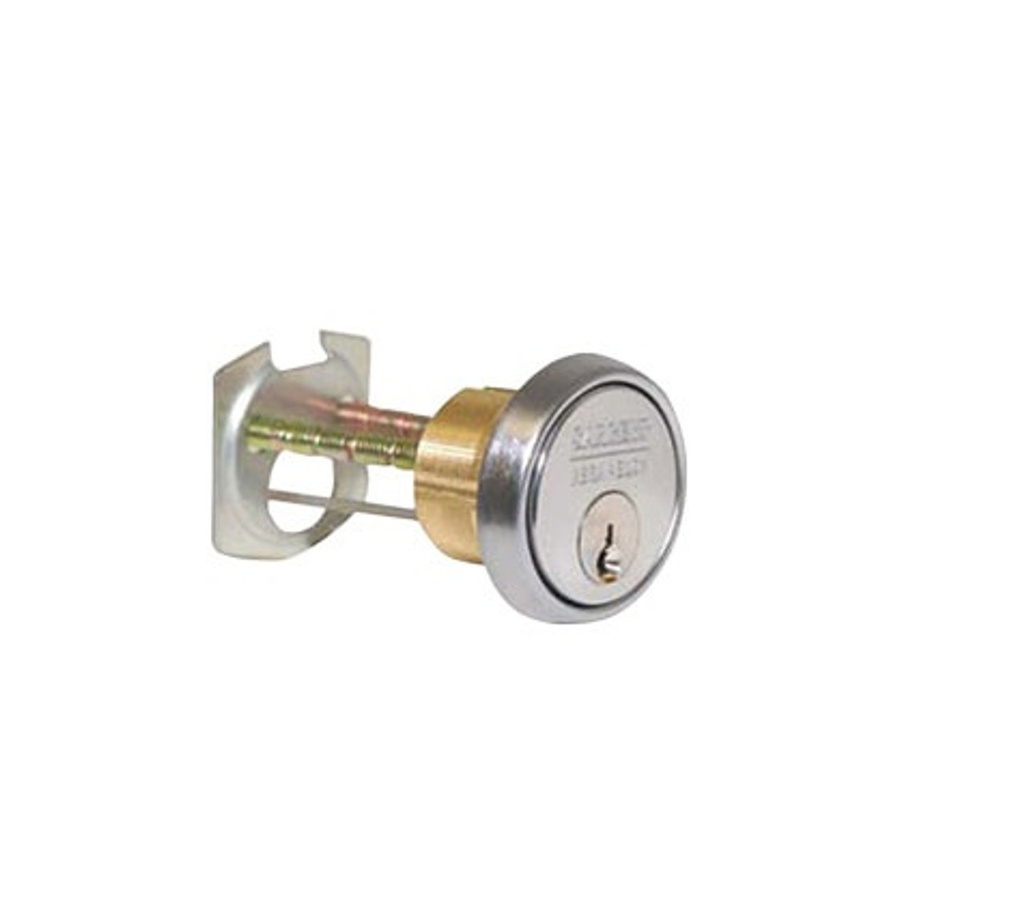

Sargent 34 Rim Cylinder | High-Security Architectural Cylinder
The Sargent 34 Rim Cylinder is a precision-engineered, high-security locking component designed for use with rim exit devices, panic hardware, and specialty locks. As a standard of excellence in the door hardware industry, this cylinder is crafted from solid brass bar stock, providing exceptional durability and resistance to wear over millions of cycles. The Sargent 34 is a critical component for any master key system, offering the flexibility and reliability required for schools, hospitals, and commercial office buildings.
Featuring a 6-pin tumbler mechanism as standard, this cylinder provides a high level of pick resistance and security. The modular design of the Sargent 34 allows it to be used with various tailpieces, making it compatible with a wide range of manufacturers' exit devices. Available in multiple architectural finishes, including Satin Chrome (626) and Satin Bronze (612), it ensures a seamless aesthetic match with existing door hardware.
Professional Grade Security & Versatility
- Solid Brass Construction: Precision-machined from solid brass, ensuring smooth operation and a long service life in high-traffic environments.
- Master Key Compatibility: Fully compatible with Sargent master key systems, allowing for complex keying requirements across large facilities.
- Pick & Drill Resistance: The 6-pin configuration and tight machining tolerances provide superior protection against unauthorized entry and tampering.
- Universal Application: Designed to work with Sargent rim exit devices (such as the 80 Series) and other major brands requiring a standard rim cylinder.
- Multiple Keyways: Available in a vast array of Sargent keyways, including the highly secure Sargent Degree and Signature series for restricted key control.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 34 (Standard Rim Cylinder) |
| Cylinder Type | Rim Cylinder (Conventional 6-Pin) |
| Material | Solid Brass Bar Stock |
| Standard Length | 1-1/8" (Other lengths available) |
| Keying Options | Keyed Different (KD), Keyed Alike (KA), or Master Keyed (MK) |
| Tailpiece | Included (Standard horizontal tailpiece) |
| Certification | Meets ANSI/BHMA A156.5 Grade 1 standards |
Installation & Architectural Finishes
The Sargent 34 is designed for easy installation into a standard 1-1/4" diameter hole. It comes complete with a mounting backplate, two break-off screws, and a standard tailpiece. To ensure the highest level of security, it is recommended to use the included Sargent cylinder collar (sold separately in some configurations) to protect the cylinder face from physical attack.
Available at DoorwaysPlus.com in a full spectrum of architectural finishes to match your project's hardware schedule, including:
- 626 (Satin Chrome)
- 605 (Bright Brass)
- 612 (Satin Bronze)
- 613 (Oil Rubbed Bronze)
- 625 (Bright Chrome)
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Sargent Keyways | LA Keyway or LB Keyway or LC Keyway or LE Keyway or LF Keyway or LG Keyway or LJ Keyway or LK Keyway or LL Keyway or RA Keyway or RB Keyway or RC Keyway or RE Keyway or RF Keyway or RG Keyway or RJ Keyway or RK Keyway or RL Keyway or HA Keyway or HB Keyway or HC Keyway or HE Keyway or HF Keyway or HG Keyway or HJ Keyway or HK Keyway or HL Keyway |
| Brand | Sargent |
| Cylinder Type | Rim Cylinder |
| Key Length | 5 Pin, 6 Pin |
