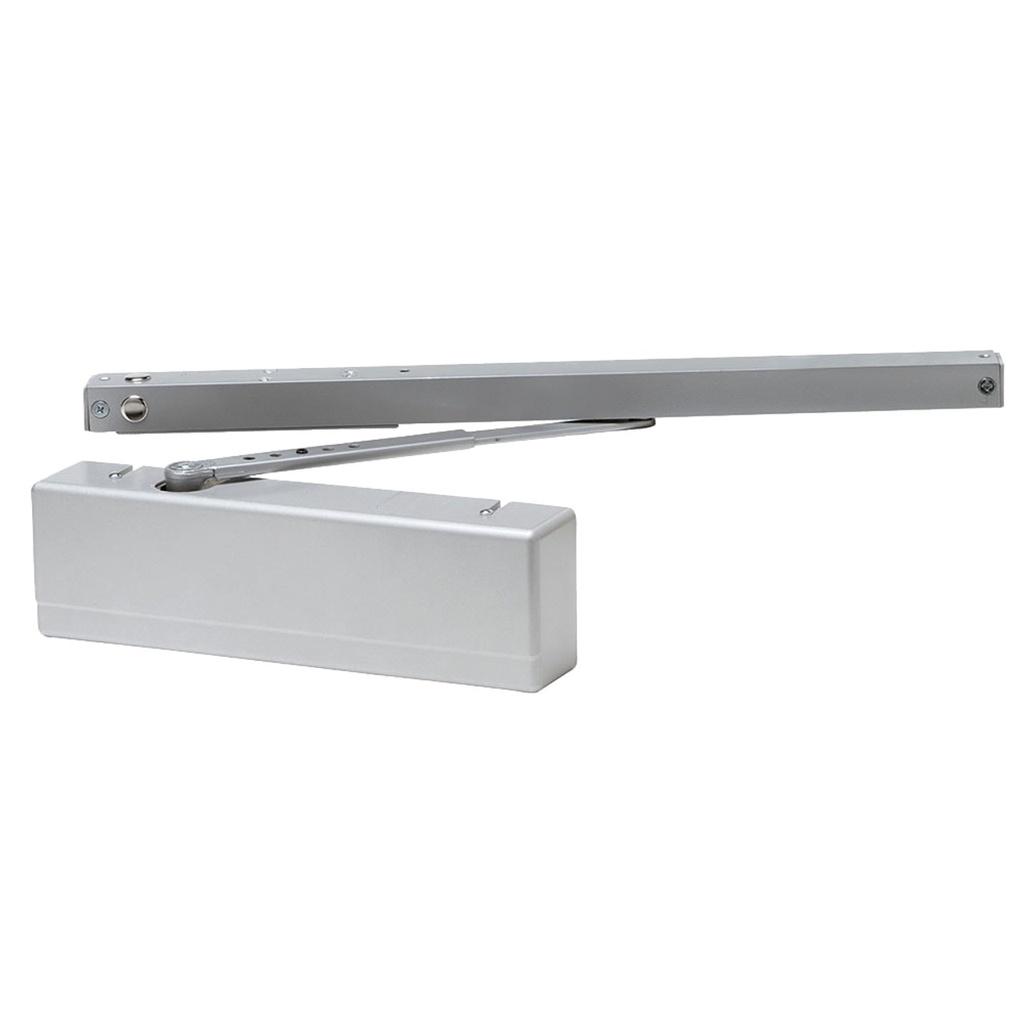

Sargent 351 HT Powerglide® Door Closer | Pull Side Hold Open Track Arm
The Sargent 351 HT Door Closer is the premier choice for architects and facility managers seeking a high-performance, low-profile door control solution. As part of the elite Powerglide® 351 Series, this model features a Pull Side Track Arm with Hold Open (HT). Unlike traditional projecting arms, the track system offers a clean, modern aesthetic while providing a variable hold-open function. This allows the door to be conveniently secured at a specific angle, making it ideal for high-traffic corridors, office suites, and healthcare patient rooms.
Built for longevity, the 351 HT is constructed from a heavy-duty one-piece die-cast aluminum silicon alloy with 14% silicon for superior wear resistance. This ANSI/BHMA Grade 1 closer is non-handed and features adjustable spring power from Size 1 to 6, ensuring it meets all ADA accessibility requirements while providing the strength required for fire-rated openings.
Elite Performance & Architectural Features
- Variable Hold Open Track: The HT track arm allows the door to be held open at a range of angles (typically 85° to 110°), perfect for moving equipment or high-frequency transitions.
- Sleek, Low-Profile Design: The track is mounted on the frame face (pull side), eliminating the "elbow" of a standard arm and reducing the footprint for a more professional appearance.
- Industrial Strength Piston: A massive 1-1/2" diameter piston provides the hydraulic power needed for superior door control and extreme durability over millions of cycles.
- All-Weather Reliability: Pre-filled with all-weather hydraulic fluid, the closer operates effectively in extreme heat or sub-zero cold without requiring seasonal valve adjustments.
- Tamper-Resistant Adjustments: Separate brass valves for closing speed, latching speed, and backcheck are controlled by an 1/8" Allen wrench and are captivated to prevent accidental removal.
- Fire & Safety Certified: UL/cUL listed for use on fire doors and conforms to UL10C and UBC positive pressure fire test standards.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 351 HT (Hold Open Track) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Arm Type | Forged Steel Arm with Extruded Aluminum Track |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Hold Open Range | Adjustable Variable Hold Open (Pull Side) |
| Body Material | 14% Silicon Aluminum Alloy |
| Handing | Non-Handed (Field Reversible) |
| Warranty | 25-Year Limited Mechanical Warranty |

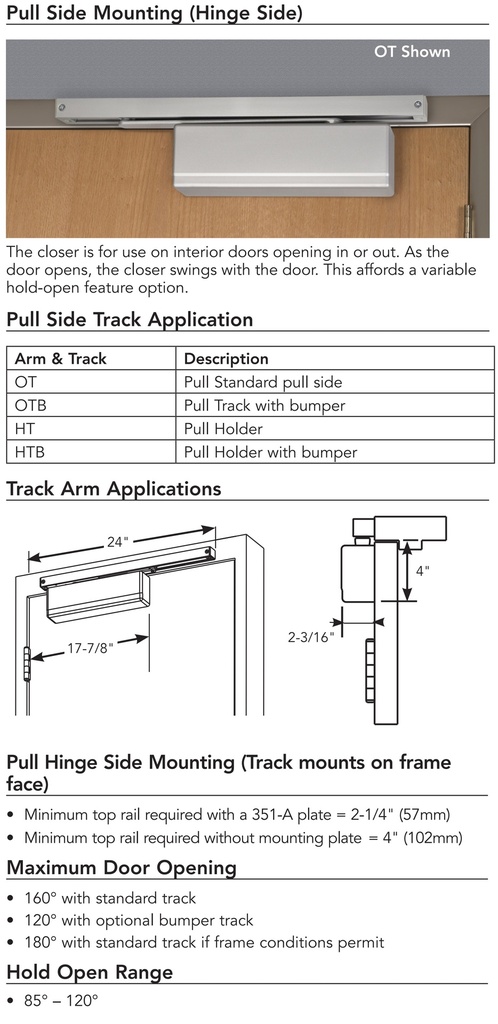

Installation & Finish Options
The Sargent 351 HT is designed for pull-side mounting on the door leaf. The package includes self-sticking templates and all necessary fasteners, including machine and self-tapping screws. To ensure the highest level of security and stability on wood or mineral core doors, this unit is supplied with Sargent thru bolts.
Available at DoorwaysPlus.com in standard architectural enamel finishes: Aluminum Enamel (EN), Dark Bronze Enamel (EB), and Brass Enamel (EAB). For environments where hygiene is critical, it is also available with the MicroShield® antimicrobial coating.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 351 Series |
| Closer Arm Type | Track Arm |
| Hold Open | Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
