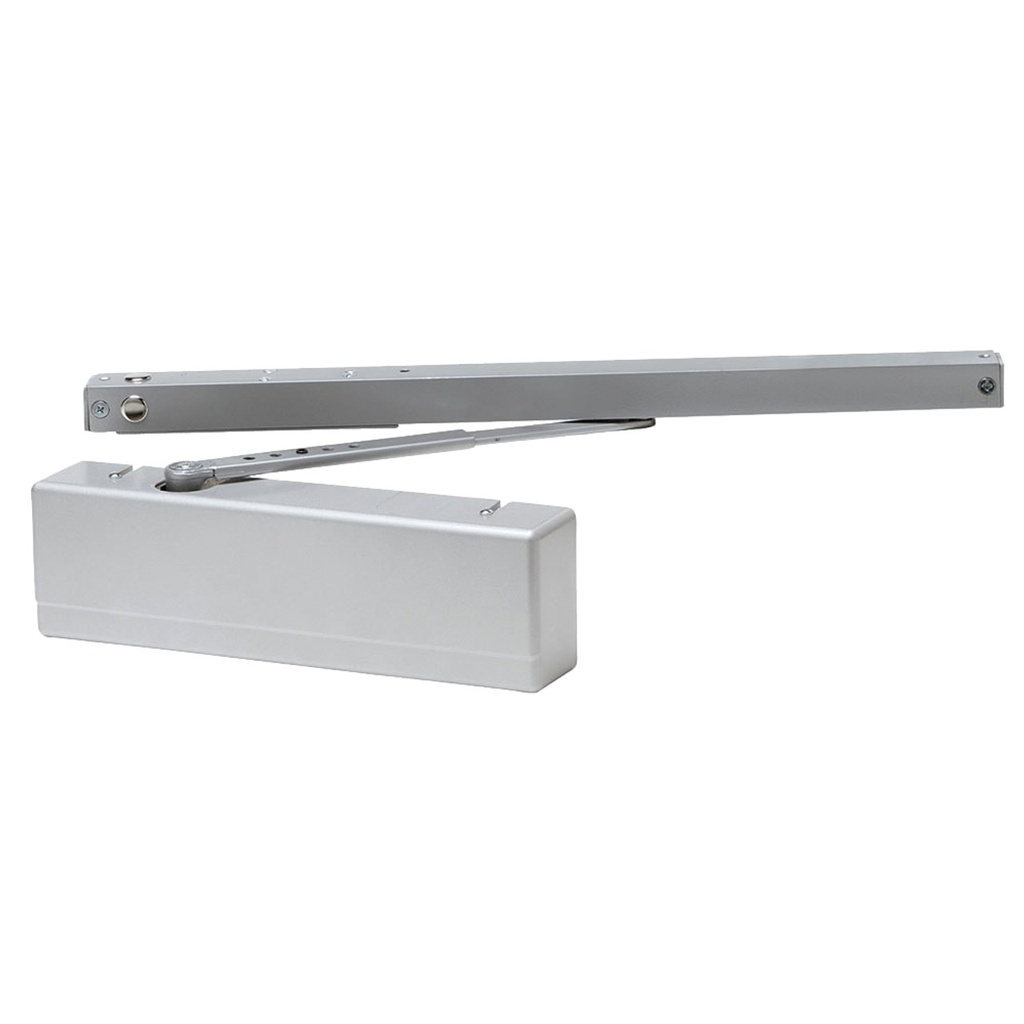

Sargent 351 POT Powerglide® Door Closer | Push Side Standard Track Arm
The Sargent 351 POT Door Closer is a heavy-duty, commercial-grade solution designed for high-traffic environments where durability and a clean aesthetic are paramount. As a flagship model in the Powerglide® 351 Series, the 351 POT features a Push Side Standard Track Arm, which mounts the track on the door face or frame to eliminate the traditional projecting arm "elbow." This low-profile design is ideal for institutional settings like schools, hospitals, and office buildings where a modern look and resistance to vandalism are required.
Constructed from a one-piece die-cast aluminum silicon alloy with 14% silicon, the 351 POT provides industry-leading strength and wear resistance, certified for over 25 million cycles. It features adjustable spring power from Size 1 to 6, allowing it to be fine-tuned for interior doors up to 5'0" wide. While the track arm provides a streamlined appearance, please note that Push Side Track applications generally do not meet ADA accessibility requirements due to increased opening force.
Architectural Performance & Heavy-Duty Engineering
- Push Side Track Design: The extruded aluminum track and forged steel arm are mounted on the push side of the door, offering a sleek profile that is less susceptible to tampering or accidental damage.
- Precision Hydraulic Control: A large 1-1/2" diameter piston ensures smooth operation and superior door control. Independent brass valves allow for precise regulation of closing speed, latching speed, and backcheck.
- All-Weather Reliability: Pre-filled with all-weather hydraulic fluid, this closer operates consistently in extreme temperatures without the need for seasonal valve adjustments.
- Tamper-Resistant Hardware: All adjustment valves are controlled by an 1/8" Allen wrench and are captivated within the body to prevent unauthorized removal or damage.
- Fire Safety Certified: UL/cUL listed for use on fire doors (up to 3 hours) and conforms to UL10C and UBC positive pressure standards.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 351 POT (Push Side Track) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Arm Type | Forged Steel Arm with Extruded Aluminum Track |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Piston Diameter | 1-1/2" for Industrial Strength |
| Body Material | 14% Silicon Aluminum Alloy |
| Handing | Non-Handed (Field Reversible) |
| Warranty | 25-Year Limited Mechanical Warranty |
Installation & Customization Options
The Sargent 351 POT is non-handed and shipped with self-sticking templates to simplify installation. For maximum stability on wood or mineral core doors, it is highly recommended to use the included Sargent thru bolts.
- Available Finishes: Stocked at DoorwaysPlus.com in three high-durability enamel finishes: EN (Aluminum), EB (Dark Bronze), and EAB (Brass). Additional powder-coated finishes (ED, EP) and architectural plated options are available upon request.
- MicroShield® Finish: An optional antimicrobial silver-based coating is available to permanently suppress the growth of bacteria, mold, and fungus on the closer surface.
- Optional Track Accessories: Can be upgraded with a Track Bumper (POTB) to assist backcheck or a Hold Open (PHT) mechanism to secure the door at a specific angle.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 351 Series |
| Closer Arm Type | Track Arm |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
