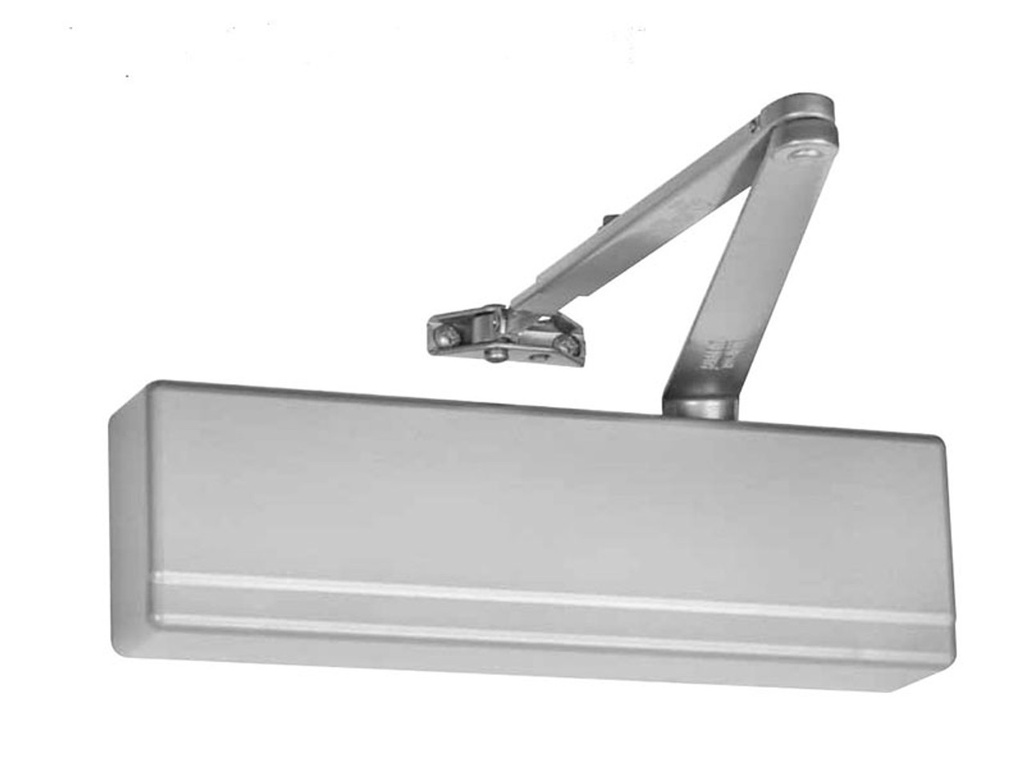

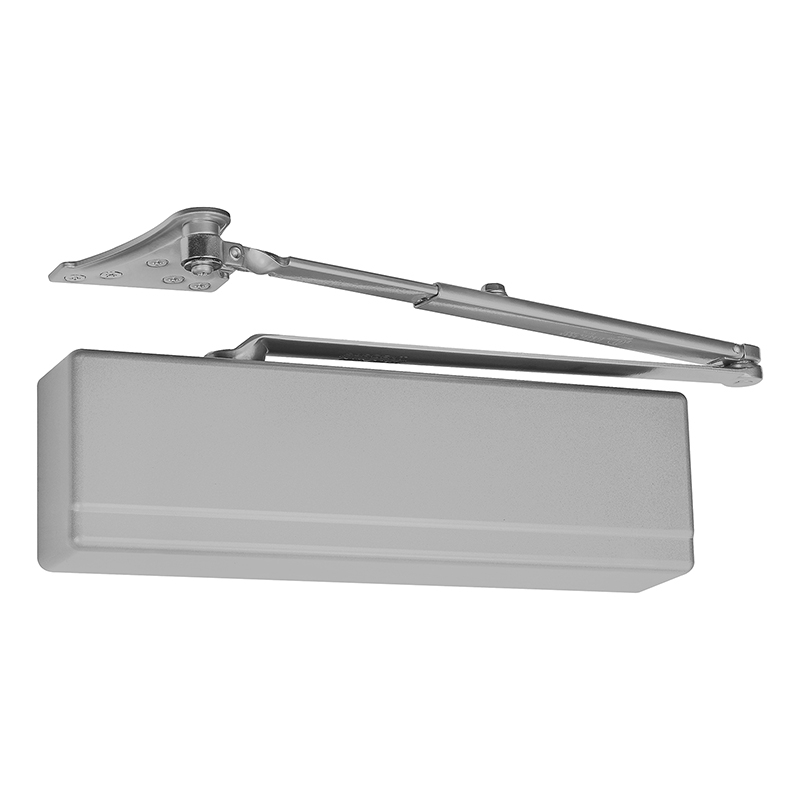

Sargent 351 UO Powerglide® Door Closer | Heavy Duty Universal Arm
The Sargent 351 UO Door Closer is the premier choice for high-traffic, institutional applications that demand the absolute highest level of durability and control. As the flagship model of the Powerglide® series, the 351 UO is engineered for a lifetime of performance in schools, hospitals, and high-use commercial buildings. This "one-box" solution features the UO Universal Arm, allowing for Regular, Top Jamb, or Parallel Arm mounting configurations right out of the box.
Constructed from a heavy-duty, one-piece die-cast aluminum silicon alloy (with 14% silicon content), the 351 body offers superior strength and corrosion resistance. Its heat-treated full closed rack and pinion mechanism provides total control from a full open position. With adjustable spring power from Size 1 to 6, this closer easily accommodates everything from lightweight interior doors to heavy exterior perimeters while remaining fully ADA compliant.
Industry-Leading Engineering Features

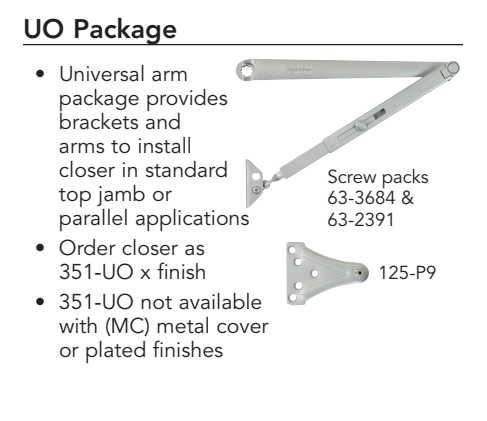

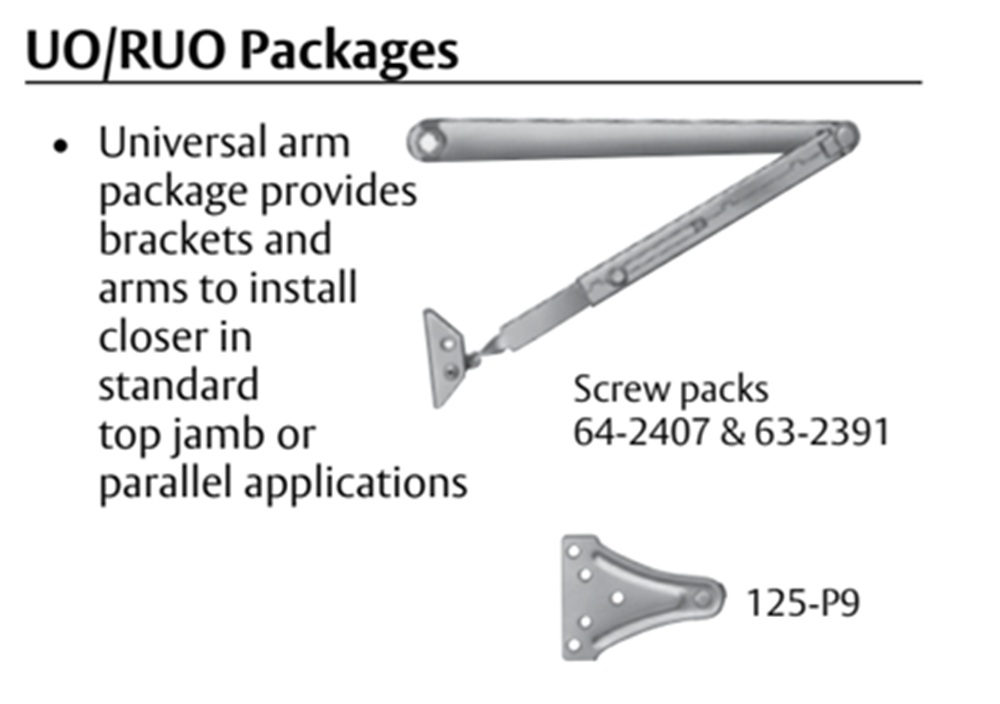

- Universal Mounting Versatility: Supplied with all necessary components for Regular Arm (pull side), Top Jamb (push side), and Parallel Arm (push side) installations.
- Superior Hydraulic Piston: Features a large 1-1/2" diameter piston, providing the highest level of door control and closing force consistency in the industry.
- Tamper-Resistant Valves: Low-sensitivity brass valves regulate closing speed, latching speed, and backcheck. All valves are adjusted with an 1/8" Allen wrench and are captivated to prevent accidental removal or vandalism.
- Extreme Temperature Fluid: Includes all-weather hydraulic fluid that ensures the closer functions perfectly in extreme heat or cold without the need for seasonal adjustments.
- Forged Steel Arms: The heavy-duty forged steel arms are finely finished and interchangeable with Sargent 1431 and 281 series closers for maximum facility standardization.
- MicroShield® Technology: Available with an optional antimicrobial silver-based coating that permanently suppresses the growth of bacteria, mold, and mildew.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 351 UO (Powerglide®) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Arm Type | Universal Forged Steel Arm (Regular, Top Jamb, Parallel) |
| Piston Diameter | 1-1/2" (38mm) |
| Body Material | 14% Silicon Aluminum Alloy |
| Fire Rating | UL10C & UBC 7-2 (Positive Pressure) |
| Handing | Non-Handed |
| Warranty | 25-Year Limited Mechanical Warranty |
Professional Installation & Compatibility
The Sargent 351 UO is designed for easy installation with self-sticking templates and a wide array of fasteners, including machine screws, self-tapping screws, and wood screws. For doors where maximum security is required, it is recommended to use Sargent thru bolts to ensure a rock-solid attachment to the door leaf.
Available at DoorwaysPlus.com in three standard architectural finishes: Aluminum Enamel (EN), Dark Bronze Enamel (EB), and Brass Enamel (EAB). For medical facilities or high-corrosion environments, optional metal covers and lead-lined covers are also available.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 351 Series |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
