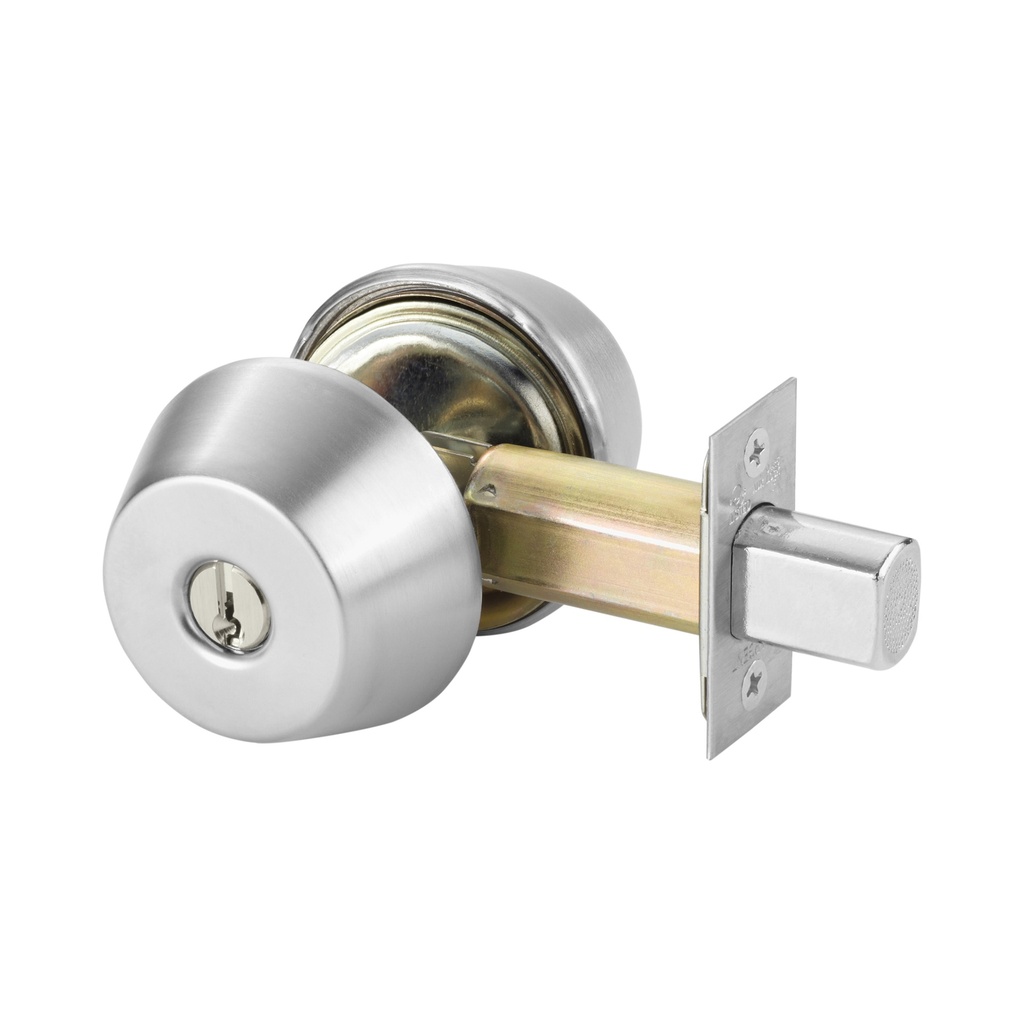

Sargent 484 Double Cylinder Deadlock – Commercial Deadbolt with LA Keyway
The Sargent 484 Double Cylinder Deadlock is a heavy-duty commercial deadbolt designed for applications where key control is required from both sides of the door — no thumbturn is present. Built on Sargent's proven 480 Series platform, the 484 uses Sargent's V-10 cylinder system and the LA keyway, making it well-suited for facilities that demand controlled access from both the secured and public side of a door. This configuration is commonly specified for storage rooms, utility corridors, mechanical rooms, and other commercial or institutional spaces where a thumbturn would represent a security vulnerability.
What Is a Double Cylinder Deadlock?
A double cylinder deadlock (also called a double-keyed deadbolt) requires a key to operate the deadbolt from either side of the door. Unlike a single cylinder deadbolt — which uses a thumbturn on the interior — both the outside and inside of this lock are operated exclusively by key. This function eliminates the risk of an intruder breaking a nearby glass panel and reaching in to turn a thumbturn. For doors with glass sidelights or vision panels, specifiers and facility managers frequently require this configuration. Note: Local life-safety codes and fire codes may restrict double cylinder deadbolts in certain egress paths; always verify with the authority having jurisdiction (AHJ) before specifying.
Key Features & Benefits
- Double cylinder function: Key operation required from both sides — no thumbturn inside
- Sargent 480 Series platform: Commercial-grade deadlock construction with 2-3/4" backset
- LA keyway: Sargent open keyway for easy key duplication and system integration
- V-10 cylinder compatibility: Accepts VA or VS580 cylinder assemblies (outside and inside positions)
- Security balls included: Part #907015 security balls standard for double cylinder deadlock configuration, adding resistance to cylinder manipulation
- Part-level serviceability: Individual components — cylinder plugs, housings, tailpieces, tailpiece washers, mounting bolts — are available separately for field service and long-term maintainability
- Commercial-grade materials: Consistent with Sargent's 480/580 Series construction standards
Typical Applications
- Commercial storage and utility rooms requiring key control from both sides
- Mechanical and electrical rooms in institutional or office buildings
- Doors with glass panels or sidelights where thumbturn access would pose a security risk
- Schools, healthcare facilities, and government buildings with controlled-access requirements
- Retrofit or replacement of existing 484 Series double cylinder deadbolts in Sargent-keyed facilities
Technical Details
| Feature | Details |
|---|---|
| Series | Sargent 484 (480 Series Deadlock) |
| Function | Double Cylinder Deadlock — key operates deadbolt from both sides; no thumbturn |
| Keyway | LA (Sargent open keyway) |
| Backset | 2-3/4" |
| Face / Bolt | 1" × 2-1/4" face (480 Series) |
| Cylinder Type | VA or VS580 OS (outside) and VA or VS580 IS (inside) |
| Mounting Bolts | 1/4-20 Socket Head Mounting Bolts — Double Cylinder (part #907011) |
| Security Feature | Security balls (part #907015) standard for double cylinder configuration |
| Category | Commercial Deadbolt / Dead Lock |
| Manufacturer | Sargent (ASSA ABLOY) |
Specification & Compatibility Notes
The 484 is dimensioned for door applications consistent with the 480 Series (thinner door profile than the 584 Series, which targets standard 1-3/4" doors). Confirm door thickness and backset requirements against your door prep before ordering. Replacement cylinders, tailpieces (including tailpiece #867109 for special door thickness), tailpiece washers, and individual housing components are available as separate service parts, supporting long-term maintainability without full lock replacement. For facilities currently operating Sargent V-10 key systems, the 484 integrates directly into the existing master key hierarchy.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze |
| Brand | Sargent |
| Deadlock Grade | Grade 1 - Hv Dty |
| Deadbolt Function | Double Cylinder |
| Cylinder Options | LA Keyway |
| Backset | 2-3/4" Backset |
| Series | Sargent - 480 Series |
