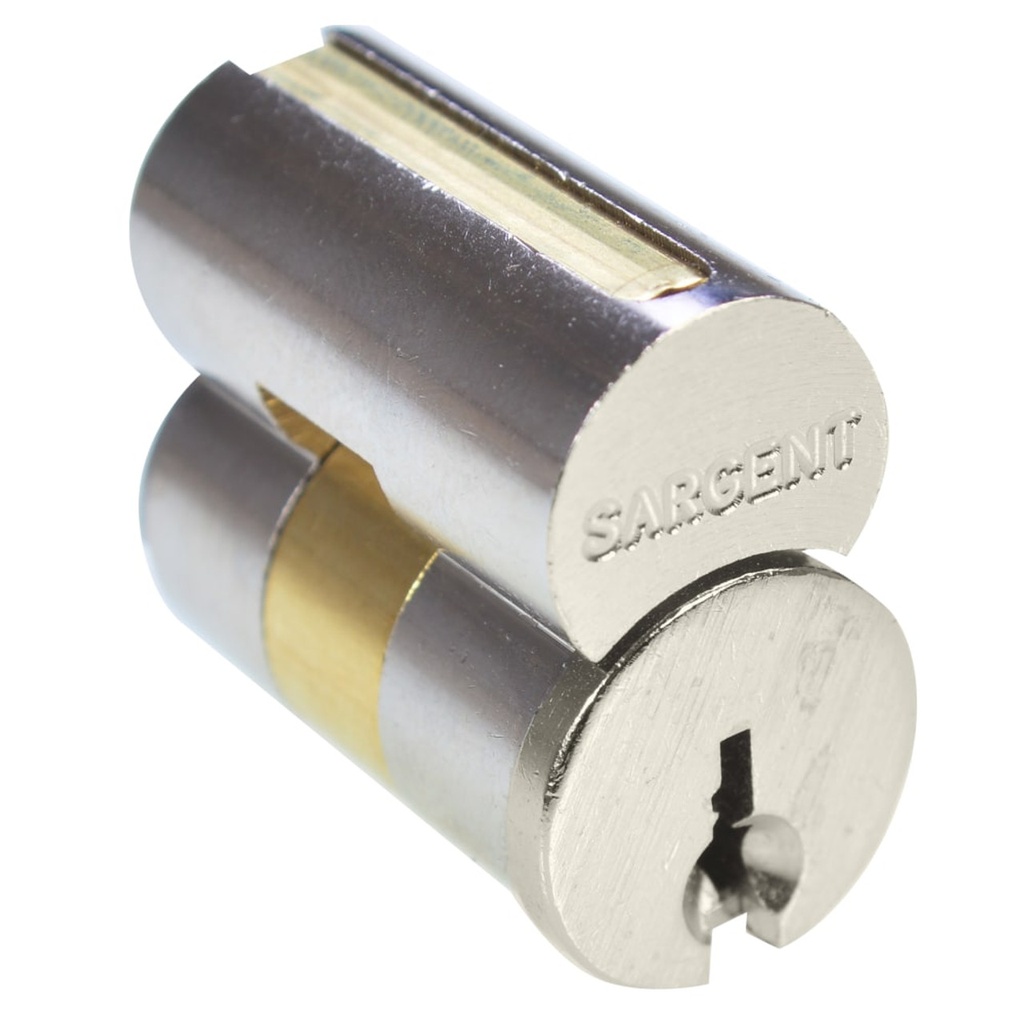

Sargent 6300 6-Pin LFIC Core | Large Format Interchangeable Removable Core
The Sargent 6300 6-Pin Large Format Interchangeable Core (LFIC) is a high-security, professional-grade solution designed for rapid re-keying in commercial and institutional environments. This assembled core allows facility managers to change access levels in seconds using a specialized control key, which releases the internal locking cam for immediate removal. By eliminating the need to dismantle the entire lock or remove it from the door, the Sargent 6300 provides a cost-effective and efficient way to maintain security integrity across large-scale facilities.
Constructed for maximum versatility, the Sargent 6300 LFIC is compatible with a vast array of hardware, including exit devices, mortise locks, bored locks, and padlocks. This specific model is furnished as a "1 Bitted" core, meaning it is ready for field re-keying by a locksmith to match your existing master key system. It comes complete with a control sleeve, springs, and two key blanks, ensuring you have the necessary components for a seamless installation.
Professional Security & Key Management Features
- Rapid Core Exchange: The removable core design enables instant security updates. A control key (factory bitting 115311) allows the core to be swapped out without any tools, making it ideal for high-turnover areas.
- Master Key System Integration: Fully compatible with complex Sargent master key and grandmaster key systems. It can also coexist in systems using conventional cylinders operated by the same master keys.
- Field Rekeyable (1 Bitted): Shipped in a 1 bitted configuration for easy customization. These units include pins and springs in chambers 3 and 4 only, providing a clean slate for professional locksmithing.
- Solid Construction: Built to withstand heavy use in industrial settings, ensuring long-term mechanical reliability and resistance to wear.
- Extensive Keyway Options: Available in a wide variety of Sargent keyway families (LA through RL, and HA through HL) to match your facility's current keying requirements.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 6300 (6-Pin LFIC) |
| Cylinder Type | Large Format Interchangeable Core |
| Pin Configuration | 6-Pin Standard |
| Bitting Status | 1 Bitted (Field Rekeyable) |
| Control Key Bitting | 115311 (Factory Standard) |
| Keyway Support | LA, LB, LC, LE, LF, LG, LJ, LK, LL, RA, RB, RC, RE, RF, RG, RJ, RK, RL, HA, HB, HC, HE, HF, HG, HK, HL |
| Available Finishes | US15 (Satin Nickel) or US4 (Satin Brass) |
| Included Components | Control Sleeve, Springs, 2 Key Blanks |
Installation & Application Notes
The Sargent 6300 LFIC is the preferred choice for commercial use where quick security transitions are necessary. While 6-pin cores offer ample security for most business applications, facilities requiring extreme complexity in their master key systems may consider 7-pin alternatives.
When ordering from DoorwaysPlus.com, ensure you select the correct keyway to match your existing hardware. For new installations, the Sargent 6300 provides the foundation for a scalable and secure access control plan that can grow with your building's needs.
| General - US Finishes | US15 - Satin Nickel or US4 - Satin Brass |
| Sargent Keyways | LA Keyway or LB Keyway or LC Keyway or LE Keyway or LF Keyway or LG Keyway or LJ Keyway or LK Keyway or LL Keyway or RA Keyway or RB Keyway or RC Keyway or RE Keyway or RF Keyway or RG Keyway or RJ Keyway or RK Keyway or RL Keyway or HA Keyway or HB Keyway or HC Keyway or HE Keyway or HF Keyway or HG Keyway or HK Keyway or HL Keyway |
| Brand | Sargent |
| Cylinder Options | LFIC - Sargent |
| Cylinder Part Type | Interchangeable Core |
