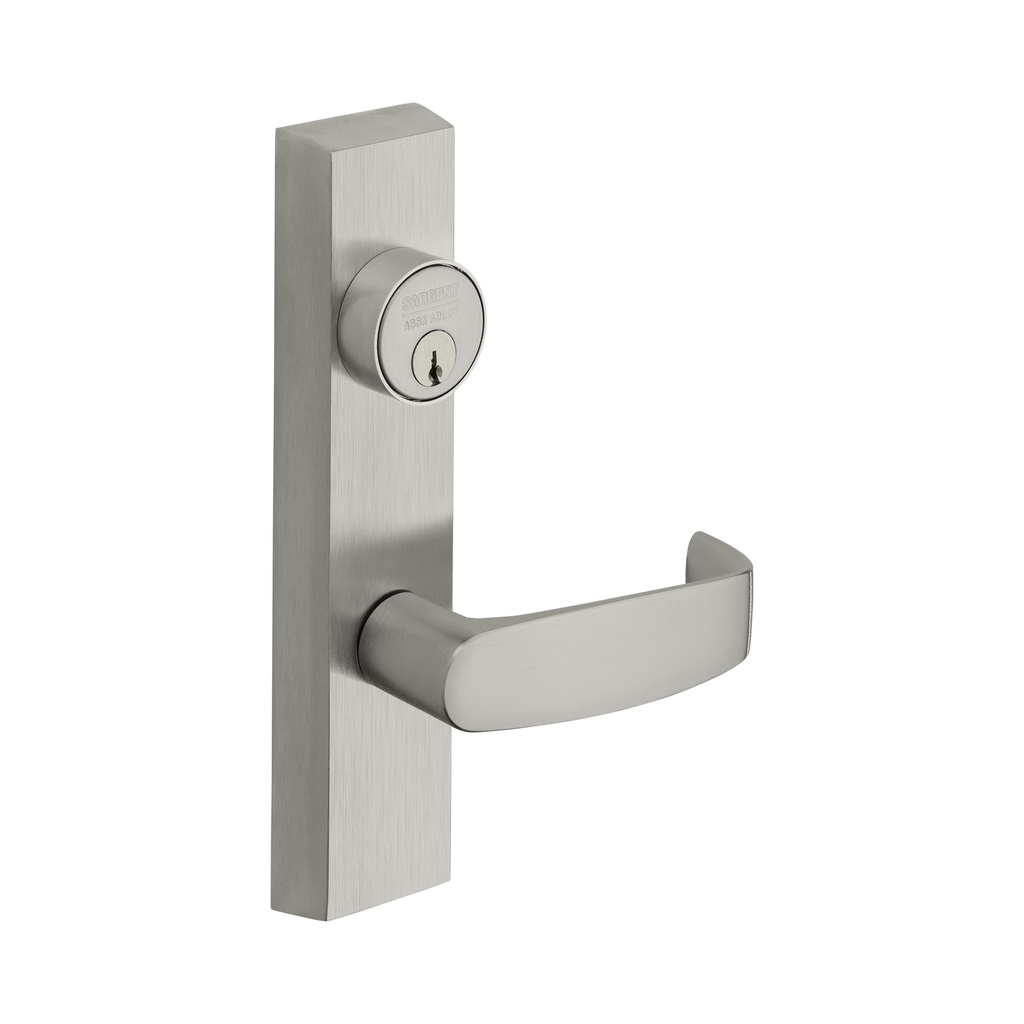

Sargent 706-8 ETL US26D Outside Trim – Versatile Storeroom Access Solution
This is intended for:
- Narrow Stile (8500 Series) and Wide Stile (8800 Series) Rim Exit Devices
- Surface Vertical Rod less Bottom Rod Devices (NB-8700 Series)
- Surface Vertical Rod Devices (PP/PR & SP Series)
Designed for maximum architectural flexibility, the Sargent 706-8 ETL is a multi-device compatibility solution. It is specifically engineered to interface with Narrow Stile (8500 Series) and Wide Stile (8800 Series) rim exit devices, as well as complex vertical rod configurations including Surface Vertical Rod Less Bottom Rod (NB-8700) and SVR PP/PR & SP Series. By providing a through-bolted, solid attachment to the door, this trim acts as a structural reinforcement solution, ensuring that the exterior handle can withstand high-torque forced entry attempts without losing alignment with the internal exit device chassis.
The 706-8 ETL trim is built to provide maximum exterior security while ensuring fail-safe, immediate egress from the building interior:
- Multi-Drive Integration: Features a specialized internal drive hub that can lift vertical rods or retract rim latches, making it a versatile hardware solution for facilities with mixed device types.
- ADA Accessibility: The lever shape allows for operation without grasping or twisting, providing a compliance solution for public-facing openings subject to stringent accessibility codes.
Technical Specifications
| Feature | Details |
| Model Number | Sargent 706-8 ETL US26D |
| Function | Storeroom (Locked at all times, Key entry) |
| Lever Design | ETL (Ergonomic Commercial Lever) |
| Finish | |
| Device Compatibility | 8500, 8800, NB-8700, PP, PR, & SP Series |
| Door Handing | Handing Required (LHR / RHR) |
| Cylinder Prep | Accepts Standard Sargent Mortise or Rim Cylinders |
| Material | Heavy-Gauge Zinc Die-Cast / Stainless Steel Internals |
| Manufacturer | Sargent (ASSA ABLOY) |
Engineered Solutions for Facility Access Management
The Sargent 706-8 ETL addresses the specific mechanical and aesthetic challenges of modern facility management:
- SVR and Rim Optimization: Standard trims often struggle with the "Lift-to-Retract" motion required for vertical rods. The 706-8 is the primary mechanical solution for the NB-8700 and SP Series, ensuring rods lift fully to prevent floor-strike dragging.
- High-Traffic Reliability: In high-occupancy buildings, levers are prone to sagging over time. The Sargent 706-8 series utilizes a heavy-duty return spring, acting as a durability solution that keeps the lever level and functional for years.
- Aesthetic Uniformity: The Satin Chrome finish provides a design-unified solution, allowing the exterior trim to match the interior exit device and other nearby hardware like hinges and closers.
- Life Safety Compliance: While entry is restricted, the interior exit device remains active for immediate egress. This trim is a life-safety solution that balances high-security needs with emergency exit codes.
- Precision Handing Adjustment: Because the 706-8 ETL is handed, it ensures the internal lift-finger or drive-slide is perfectly oriented for the door's swing. This provides a smooth-operation solution, reducing key-turn resistance and mechanical wear.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Cylinder Options | LA Keyway or Less Cylinder |
| Door Handing | RHR or LHR |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Trim Design | ETL |
| Exit Device Trim Function | Storeroom |
