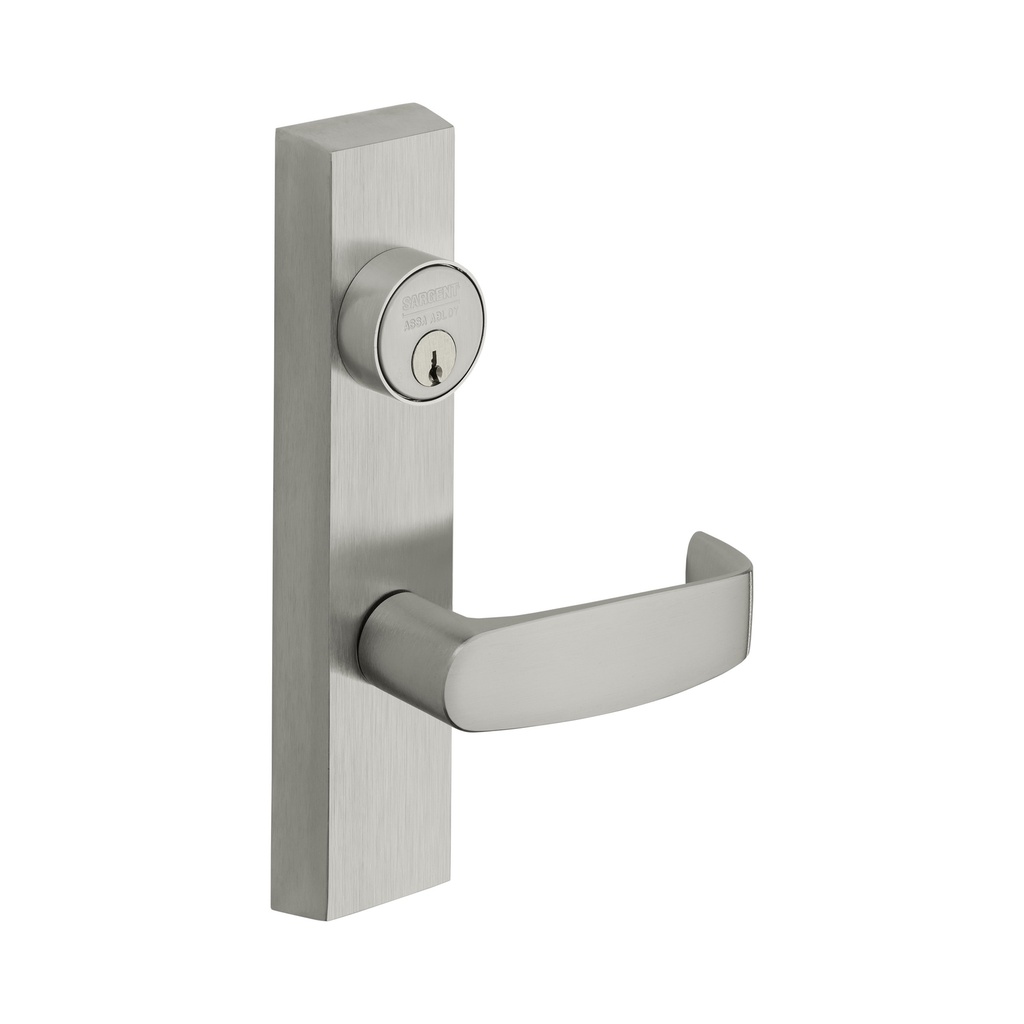

Sargent 706 ETL US26D Outside Trim – Storeroom Access Solution

**** Note: This is intended for Surface Vertical Rod (8700 Series) and Wide Stile Mortise (8900 Series) Exit Devices ****

The Sargent 706 ETL US26D Outside Trim is a professional-grade commercial lever handle engineered specifically for high-security applications. Operating in a Storeroom Function, this trim ensures that the exterior lever remains rigid and locked at all times. Entrance is granted only via key, which momentarily retracts the latch, making it the ideal security solution for sensitive areas like utility rooms, storage closets, and back-of-house entrances where uncontrolled access is a liability. Finished in a sleek US26D (Satin Chrome), the ETL lever design is fully ADA compliant, providing an accessible and ergonomic hardware solution that stands up to the rigors of institutional use.

Designed for specialized architectural needs, the Sargent 706 ETL is a compatibility solution specifically for Surface Vertical Rod (8700 Series) and Wide Stile Mortise (8900 Series) exit devices. Unlike standard rim trims, the 706 series features internal lift-mechanisms tailored for the vertical travel of rod systems and the unique timing of mortise-lock chassis. By providing a through-bolted, solid attachment to the door, this trim acts as a structural reinforcement solution, ensuring that the exterior handle cannot be easily bypassed or sheared off, thus protecting the integrity of your life safety exit hardware.

Operational Function & ANSI Security Summary

The 706 ETL trim is designed to provide maximum security on the outside while allowing free egress from the inside at all times:

• Storeroom Function (ANSI 09): The lever is always locked. Access is by key only. This prevents the door from being left unintentionally unlocked, providing a loss-prevention solution.
• Vandal-Resistant Engineering: The lever is through-bolted to the exit device, minimizing the risk of the trim pulling away from the door, acting as a physical security solution.
• ANSI/BHMA Grade 1 Performance: Certified to the highest industry standards for durability, ensuring the hardware survives millions of cycles in schools, hospitals, and transit hubs.
• ADA Accessibility: The lever design meets all federal requirements for easy operation without grasping or twisting, serving as a compliance solution for public-facing openings.

Technical Specifications

Engineered Solutions for Facility Lifecycle Management

The Sargent 706 ETL addresses the specific mechanical and aesthetic challenges of commercial facility management:

• Vertical Rod Integration: Standard trims often fail when used with rod-based systems due to incorrect internal leverage. The 706 ETL is the primary mechanical solution for the 8700 Series SVR, ensuring the rods lift fully and the door latches securely every time.
• High-Traffic Reliability: In high-occupancy buildings, levers are prone to sagging. The Sargent 706 series utilizes a heavy-duty return spring, acting as a durability solution that keeps the lever level and functional for years.
• Aesthetic Uniformity: The Satin Chrome finish provides a design-unified solution, allowing the exterior trim to match the interior exit device and other nearby hardware like hinges and closers.
• Life Safety Compliance: While entry is restricted, the interior exit device remains active for immediate egress. This trim is a life-safety solution that balances high-security needs with emergency exit codes.
• Precision Handing Adjustment: Because the 706 ETL is handed, it ensures the internal lift-finger is perfectly oriented for the door's swing. This provides a smooth-operation solution, reducing key-turn resistance and mechanical wear.

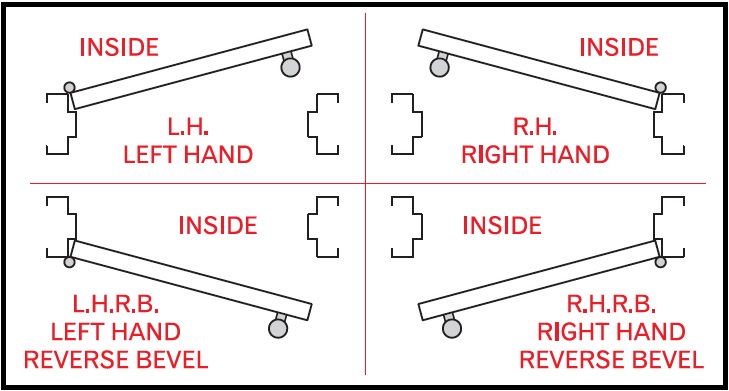

Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.

For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
