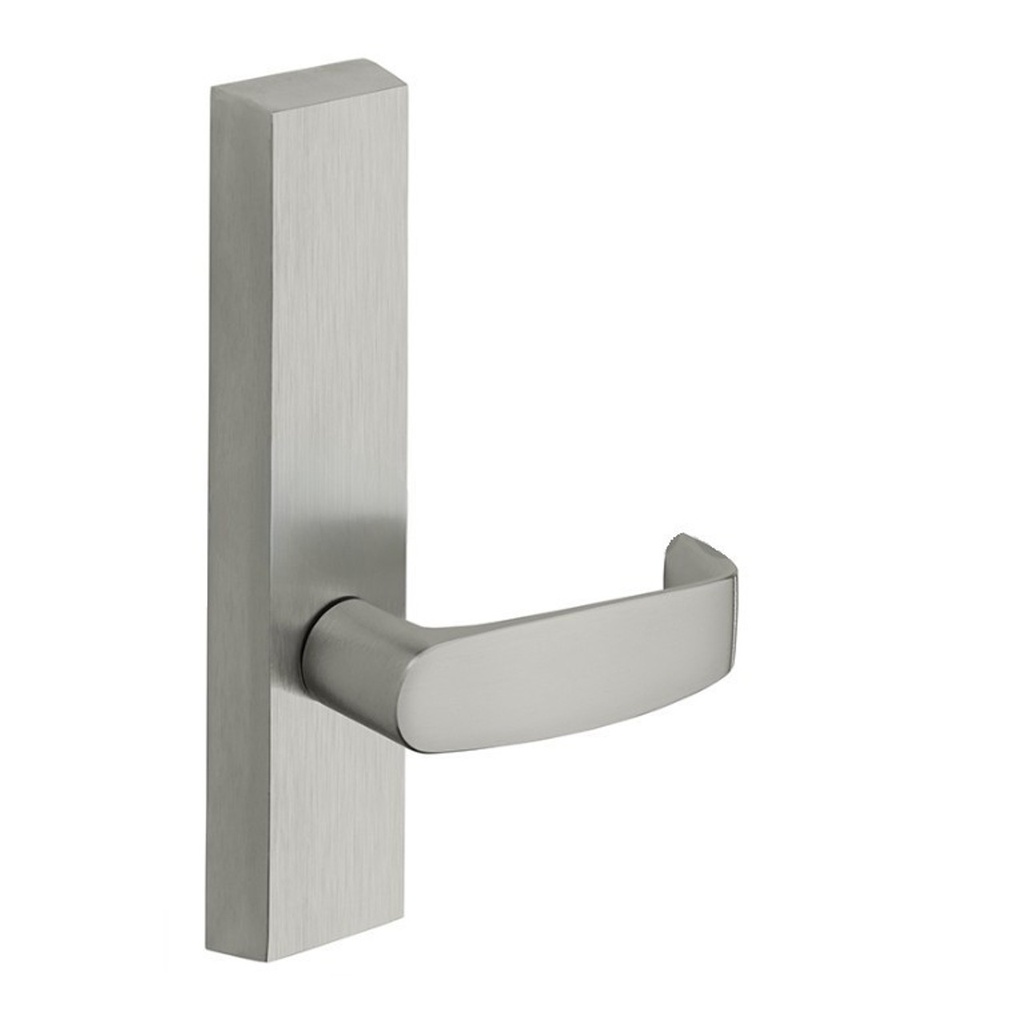

Sargent 740-4 ETL Freewheeling Exit Lever Trim – CVR Vandal-Resistant Solution
Note: This is intended for:
- Narrow Stile (8400 Series) Wide Stile (8600 Series) Concealed Vertical Rod Devices
Designed for specialized door profiles, the Sargent 740-4 ETL serves as a precision compatibility solution for Narrow Stile (8400 Series) and Wide Stile (8600 Series) CVR exit devices. The "-4" suffix indicates specialized mounting tabs required to properly interface with the internal rod connectors of these specific series. By through-bolting directly to the exit device chassis, it provides a structural integrity solution that ensures the exterior handle remains stable and perfectly aligned. The ETL lever design is not only robust but also functions as an ADA-compliant accessibility solution, ensuring that all users can easily operate the door while the freewheeling clutch preserves the lifespan of your life-safety hardware.
- Freewheeling Clutch Solution: The internal clutch allows the lever to move through its full arc without straining the internal concealed rods, acting as a preventative maintenance solution that extends the life of the entire door system.
- CVR Specific Engineering: The specialized -4 mounting tabs provide a mechanical synchronization solution for Sargent 8400 and 8600 series, ensuring the top and bottom latches are fully retracted.
- Life Safety Compliance: This exterior trim works in tandem with the interior panic bar to ensure a total emergency egress solution, allowing for uninhibited exit at all times regardless of exterior use.
Technical Specifications
| Feature | Details |
| Model Number | Sargent 740-4 ETL (Freewheeling) |
| 02 (Dummy - Always Inactive) | |
| Suffix Type | -4 (Offset Mounting Tabs for CVR) |
| Device Compatibility | 8400 (Narrow) & 8600 (Wide) CVR Series |
| Lever Design | ETL (Vandal-Resistant Ergonomic Lever) |
| Mechanical Action | Freewheeling Clutch Mechanism |
| Handing | Handing Required (LHR or RHR) |
| Finish | US26D - Satin Chrome (Standard) |
| Certification |
Engineered Solutions for Concealed Rod Systems
The Sargent 740-4 ETL addresses the unique mechanical challenges of concealed hardware:
- Vandalism Prevention Solution: Standard rigid levers often snap or bend the internal rods when forced. The Freewheeling clutch bypasses this stress, acting as a durability-hardening solution for vulnerable perimeter doors.
- Concealed Rod Optimization: Reaching rods hidden inside the door requires precise leverage. The 740-4 is a mechanical solution specifically geared to ensure the rods clear the head and floor strikes consistently.
- Streamlined Maintenance Solution: Because there is no cylinder to service, the 740-4 ETL reduces the complexity of your facility's hardware while providing the highest level of physical protection.
- ADA Accessibility Solution: The ETL lever design meets all federal accessibility guidelines, providing a "no-grasp" operation that is essential for inclusive building design.
- Aesthetic Uniformity: Available in heavy-duty finishes like US26D (Satin Chrome), providing a design-unified solution that matches the interior exit device and other nearby architectural hardware.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Door Handing | RHR or LHR |
| Brand | Sargent |
| Series | Sargent - 80 Series, Sargent - 700 ET Series |
| Exit Device Trim Function | Dummy |
| Trim Design | ETL |
