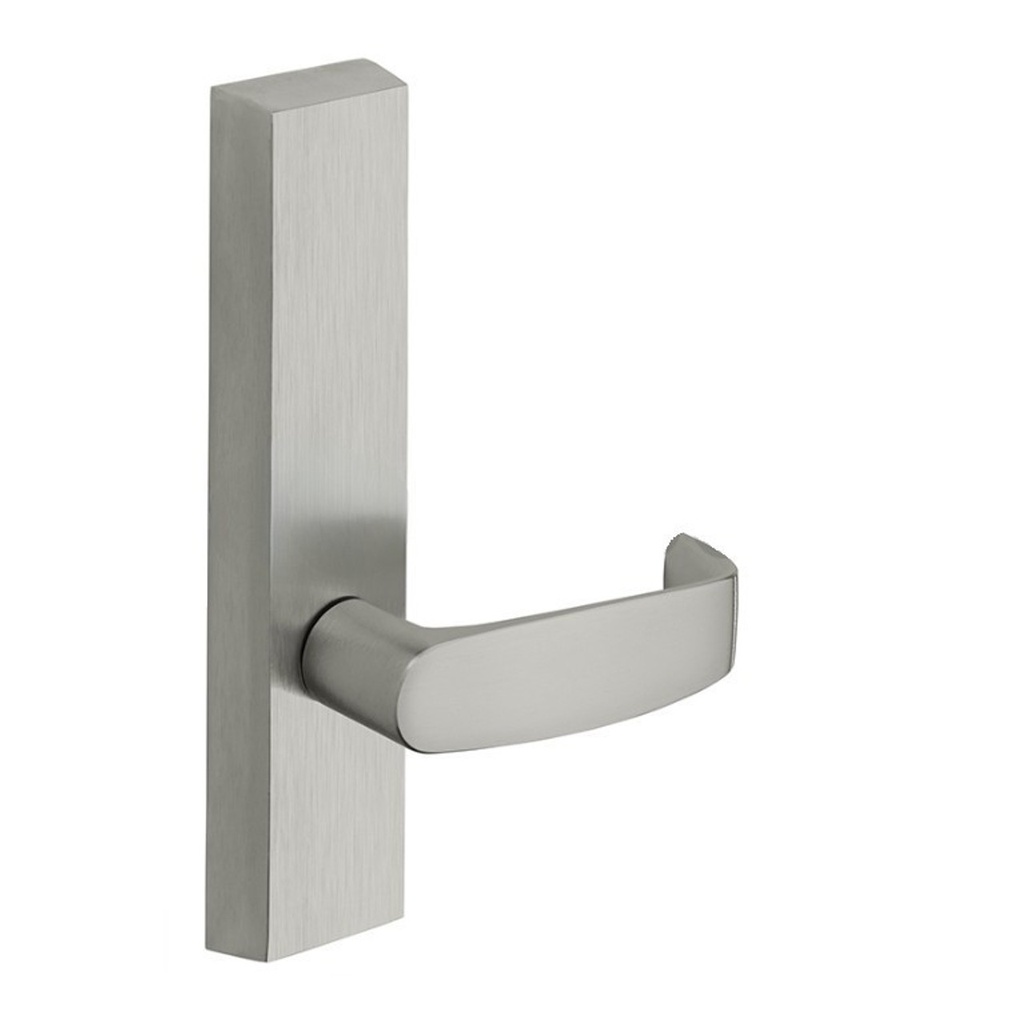

Sargent 740 ETL Freewheeling Exit Lever Trim – 80 Series Outside Exit Trim

The Sargent 740 ETL is a freewheeling outside exit lever trim designed for use with Sargent 80 Series exit devices. Corresponding to Sargent Function 40 (ANSI Function 02), this trim provides a no-outside-operation, dummy lever configuration — the lever rotates freely when the device is in the locked condition, preventing excessive torque from being applied to the horizontal rail. This design is ideal for high-traffic, abuse-prone, or security-sensitive openings where outside entry must be strictly controlled while maintaining compliant emergency egress from the interior at all times.

What Is Freewheeling (Function 40) Trim?

A freewheeling trim lever spins freely rather than engaging the latch mechanism when the device is locked. This eliminates the mechanical advantage that a rigid lever would provide to someone attempting to force the door from the outside. In practice, it means:

• Outside lever does not retract the latch — no outside entry without authorized access
• Lever rotates freely under force, reducing vandalism and mechanical wear
• Inside push-bar always allows free, code-compliant egress
• Equivalent to ANSI Function 02: No Outside Operation

Key Benefits

• Vandal-resistant design — freewheeling action protects the trim and device rail from forced-entry damage
• Sargent 80 Series compatibility — designed specifically for the 8800, 8700, 8600, 8400, 8500, and 8300 device families
• Simplified outside hardware — no cylinder required for this function; clean appearance with operational simplicity
• High-traffic durability — built to Sargent commercial-grade standards for demanding institutional and commercial environments
• Outside ET (Escutcheon Trim) lever format — mounts through the door face using standard Sargent 80 Series outside trim prep

Typical Applications

• School corridor and stairwell exit doors requiring controlled outside access
• Commercial and institutional buildings where re-entry is not permitted from the corridor side
• Healthcare, government, and industrial facilities with one-way egress requirements
• Any opening where the exit device must provide free egress but no outside entry capability

Compatibility Note

The 740 ETL trim pairs with the Sargent 80 Series exit device body (e.g., 8810, 8816, 8888, 8710, 8800-series variants). Function is determined by the outside trim — the same device chassis can be configured for multiple functions by specifying the appropriate trim. Per KB reference SAR80-007, note that outside ET lever monitoring (electrical option 54-) is not available with freewheeling trim; specify a non-freewheeling function if lever position monitoring is required for your access control system.

Technical Details

Need a comparable outside exit trim with alternative functions or from a preferred line? DoorwaysPlus can quote equivalent freewheeling and standard-function outside trims from compatible commercial-grade sources — contact our team for specifications and pricing.

Note: This is intended for:

• Narrow Stile (8500 Series) Wide Stile (8800 Series) Rim Exit Devices
• Surface Vertical Rod less Bottom Rod Devices (NB8700 Series)
• Narrow Stile (8300 Series) Wide Stile (8900 Series) Mortise Exit Devices
• Surface Vertical Rod Devices (8700 Series)
• Surface Vertical Rod Devices (PP/PR & SP Series)

The Sargent 740 ETL Freewheeling Exit Lever Trim is a specialized architectural hardware solution designed for high-traffic environments where durability is non-negotiable. Operating as a Dummy/Passage Function (ANSI 02), this trim features a "Freewheeling" lever that is always active—meaning it is never locked—but incorporates a clutch mechanism that allows the lever to rotate freely without excessive resistance. This provides a vital vandal-resistance solution; by absorbing physical stress rather than resisting it, the trim prevents internal mechanical failure caused by "pipe-wrenching" or forced downward pressure. It is the premier durability-hardening solution for institutional facilities, schools, and healthcare centers that require constant access without compromising the lifespan of the door hardware.

Engineered for broad application, the Sargent 740 ETL serves as a universal compatibility solution across the entire Sargent 80 Series lineup. It is designed to actuate Narrow Stile (8500/8300 Series), Wide Stile (8800/8900 Series), and Surface Vertical Rod (8700/NB8700 Series) systems. By through-bolting directly to the exit device chassis, it provides a structural integrity solution that ensures the lever remains perfectly aligned with the internal panic bar mechanics. The ETL lever design not only withstands abuse but also functions as an ADA-compliant accessibility solution, offering a comfortable, ergonomic grip for all users while maintaining a clean, professional aesthetic in a durable US26D (Satin Chrome) finish.

ANSI Function & Mechanical Utility Summary

The 740 ETL (ANSI 02) focuses on seamless movement and mechanical protection:

• Entrance/Dummy Function (ANSI 02): The lever is always active and provides entry by retracting the latch bolt. There is no locking capability or cylinder prep, making it an operational efficiency solution for doors that do not require keyed security from the exterior.

• Freewheeling Protection: The internal clutch allows the lever to move through its full arc without straining the exit device chassis, serving as a preventative maintenance solution that extends the life of the entire door opening.
• Cross-Platform Synchronization: Capable of operating Rim, Mortise, and Surface Vertical Rod (SVR) systems, providing a unified hardware solution for facilities with diverse door types.

• Life Safety Compliance: This exterior trim works in tandem with the interior panic bar to ensure a total emergency egress solution, allowing for uninhibited exit at all times regardless of exterior use.

Technical Specifications

Engineered Solutions for High-Impact Environments

The Sargent 740 ETL addresses the mechanical vulnerabilities of standard commercial levers:

• Impact Absorption Solution: Standard rigid levers are prone to snapping when kicked or pulled. The Freewheeling clutch bypasses this stress, acting as a long-term reliability solution for exterior perimeters and high-occupancy interiors.
• Vertical Rod Actuation Solution: Engineered with the torque necessary to lift 8700 Series Surface Vertical Rods effortlessly, ensuring a smooth-operation solution that prevents bottom-bolt dragging or floor damage.
• Streamlined Maintenance Solution: Because there is no cylinder or locking mechanism to service, the 740 ETL (ANSI 02) reduces the complexity of your facility's keying system while still offering the highest level of physical durability.
• ADA Accessibility Solution: The ETL lever design meets all federal accessibility guidelines, providing a "no-grasp" operation that is essential for inclusive building design.

• Finish Longevity Solution: Available in heavy-duty finishes like US26D (Satin Chrome), providing a corrosion-resistance solution that maintains its appearance even under heavy daily contact.

Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.

For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
