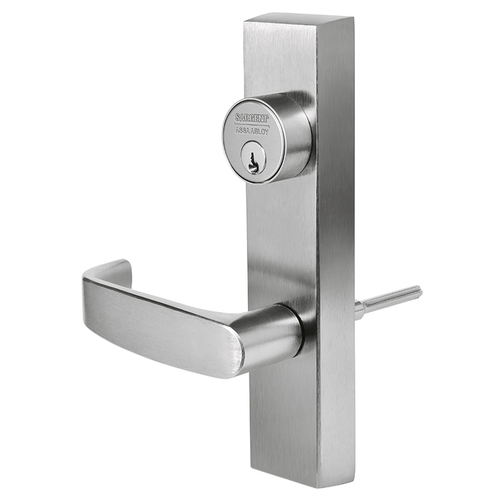

Sargent 743-8 ETL Freewheeling Exit Lever Trim – Rim & SVR Outside Trim
The Sargent 743-8 ETL is a commercial-grade electrified outside trim for panic exit devices, featuring a freewheeling lever design that rotates freely when locked — preventing torque damage in high-traffic or abuse-prone openings. Designed for seamless integration with Sargent's 80 Series exit device family, this outside trim delivers controlled ingress via electrified lever operation while always preserving free egress through the exit device bar.
This trim corresponds to Sargent Function 43 (ANSI Function 08): Freewheeling Trim — Key Outside Unlocks/Locks. When locked, the outside lever spins freely (freewheeling) rather than applying force to the mechanism. A key in the outside cylinder unlocks or locks the trim, allowing the lever to retract the latch. Inside egress via the panic bar is always free and unrestricted, regardless of the trim's locked state — a fundamental requirement for exit device hardware in all occupancy types.
Compatible Exit Device Series
- Narrow Stile Rim (8500 Series) — single door and pairs
- Wide Stile Rim (8800 Series) — single door and pairs
- Surface Vertical Rod, No Bottom Rod (NB8700 Series) — pairs and double-egress
- Surface Vertical Rod (PP/PR & SP Series) — pairs
Important: Door handing must be specified at time of order. Refer to the handing diagram provided to confirm your door's hand before placing your order.
Key Benefits
- Freewheeling lever — lever spins freely when locked; no force transferred to trim mechanism, reducing wear and vandalism damage in high-traffic corridors, schools, and institutional facilities
- Electrified trim (ETL) — integrates with access control systems; compatible with Sargent ElectroLynx® wiring connectors and McKinney QC electric hinges for clean power transfer
- Function 43 security — key outside locks and unlocks the trim; confirmed key control without compromising egress
- Broad device compatibility — fits rim and surface vertical rod (SVR) devices across Sargent's 80 Series platform
- Sargent 80 Series fire-rated support — Sargent 8800 Rim and NB8700 SVR devices carry UL fire listings up to 3-hour ratings on appropriate openings (refer to device fire label for specific door/opening size limits)
Applications
- Schools and universities — controlled ingress on classroom corridor doors with exit device inside
- Healthcare facilities — staff-side access control with always-free patient egress
- Government and institutional buildings — high-traffic exit doors requiring key-controlled outside entry
- Stairwell and corridor doors with surface vertical rod devices on pairs or double-egress openings
- Any opening requiring access-controlled ingress with panic egress compliance
Electrified Trim Function Reference
The 743-8 ETL uses Function 43 — a freewheeling electrified trim where the outside cylinder key locks or unlocks the lever. This is distinct from non-freewheeling trim and from other electrified functions (73/74/75/76 EcoFlex). For applications requiring remote electric locking/unlocking of the outside lever without a cylinder, see the Sargent EcoFlex ET trim series (Functions 73–76). For electric latch retraction (ELR) or electric dogging on the device body, those options (56-, 58-) are specified on the device itself, separate from this outside trim.
Technical Details
| Feature | Details |
|---|---|
| Manufacturer | Sargent (ASSA ABLOY) |
| Model / Trim Number | 743-8 ETL |
| Trim Type | Outside Exit Lever Trim, Electrified (ETL) |
| Sargent Function Number | Function 43 |
| ANSI Function | ANSI 08 — Key Outside Unlocks/Locks Trim |
| Lever Action When Locked | Freewheeling (lever rotates freely; no force on mechanism) |
| Compatible Devices — Rim | 8500 Series (Narrow Stile Rim), 8800 Series (Wide Stile Rim) |
| Compatible Devices — SVR | NB8700 Series (No Bottom Rod SVR), PP/PR & SP Series SVR |
| Electrified Wiring | Compatible with Sargent ElectroLynx® connectors |
| Handing Requirement | Must specify door hand at time of order |
| Category | Outside Exit Trims — Commercial Panic Hardware |
| List Price | $691.05 |
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Cylinder Options | LA Keyway or Less Cylinder |
| Door Handing | RHR or LHR |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Exit Device Trim Function | Classroom |
| Trim Design | ETL |
