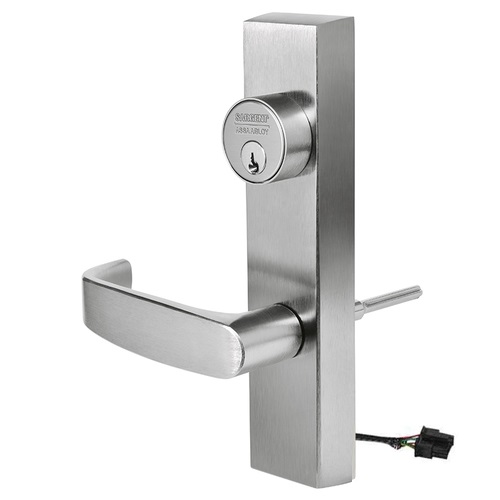

Sargent 775 ETL Fail-Safe Electrified Exit Lever Trim – 24VDC
**** Note: This is intended for Narrow Stile (8300 Series) and Wide Stile (8900 Series) Mortise Exit Devices ****
The Sargent 775 ETL is a high-performance electrified outside trim designed for mortise exit devices, offering a seamless blend of security and life-safety compliance. Engineered specifically for the Sargent 80 Series, this trim is compatible with both Narrow Stile (8300 Series) and Wide Stile (8900 Series) mortise hardware. Featuring Fail-Safe operation and EcoFlex technology, it ensures the lever unlocks during power loss, making it the premier choice for stairwell re-entry and fire-rated openings.
Advanced Electrified Control with Key Override
The 775 ETL is a "Storeroom" function trim that provides the added security of a manual key backup alongside electronic access control.
- Fail-Safe (Power-to-Lock) Functionality: The lever is unlocked when power is removed, allowing for immediate re-entry during fire emergencies or power outages. This is a critical requirement for many stairwell and life-safety codes.
- EcoFlex Technology: This trim utilizes EcoFlex circuitry, which reduces energy consumption by up to 95% compared to traditional electrified hardware. With an ultra-low continuous draw of only 15mA, it allows for more devices per power supply and minimizes heat buildup.
- Manual Key Override: Unlike the 773 series, the 775 function includes a cylinder hole, allowing a mortise cylinder (sold separately) to mechanically retract the latchbolt for emergency or manual access.
- Vandal-Resistant Grade 1 Build: Constructed from solid brass/bronze and through-bolted to the door, the ETL escutcheon meets ANSI/BHMA Grade 1 standards for high-traffic durability.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 775 ETL |
| Voltage | 24VDC (Regulated) |
| Locking State | Fail-Safe (Power Off Unlocks Lever) |
| Compatible Devices | 8300 Series (Narrow) & 8900 Series (Wide) Mortise |
| Finish | US26D (626) Satin Chrome |
| Function | 75 Function (Electrified with Key Override) |
| Current Draw | 15mA Continuous @ 24VDC |
| Cylinder Type | Requires 1-1/8" Mortise Cylinder (Sold Separately) |
| Handing | Handing Required (Specify LHR or RHR) |
High-Intent Commercial Applications
The Sargent 775 ETL 24VDC is a critical component for facility managers who require flexible access management for perimeter and corridor mortise openings.
- Stairwell Re-Entry: Perfect for doors that must unlock upon a fire alarm signal to prevent building occupants from being trapped in stairwells.
- Institutional Security: Ideal for high-traffic university or hospital doors where remote locking is managed by a central security desk.
- Commercial Offices: Provides a clean, modern aesthetic in US26D Satin Chrome while offering the redundancy of a manual key.
- Life-Safety Compliance: While the exterior is access-controlled, the interior 80 Series mortise exit device always ensures immediate, uninhibited egress.
Critical Ordering & Installation Notes
- Handing Information: This trim is handed and is not field-reversible. You must confirm and specify Left Hand Reverse (LHR) or Right Hand Reverse (RHR) based on your door swing when placing your order.
- Cylinders: This trim is typically provided Less Cylinder. You will need a Sargent #41 Mortise Cylinder or a compatible 1-1/8" mortise cylinder to complete the installation.
- Power Requirements: To protect the EcoFlex actuator and ensure peak performance, always use a filtered and regulated 24VDC power supply.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Cylinder Options | LA Keyway or Less Cylinder |
| Door Handing | RHR or LHR |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Trim Design | ETL |
| Voltage | 24 VDC |
| Exit Device Trim Function | Fail Safe |
