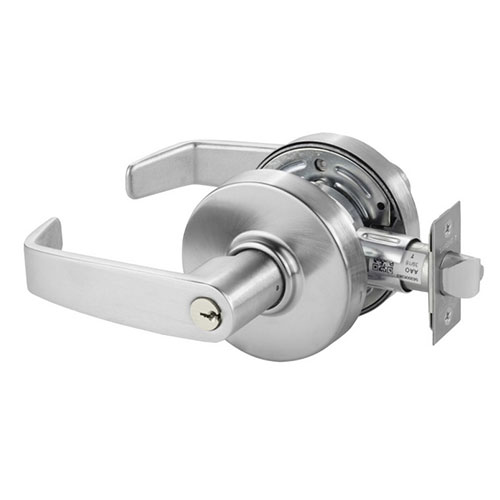

Sargent 7G04 LL Storeroom Cylindrical Lever Lockset

The Sargent 7G04 LL is a commercial-grade cylindrical lever lockset configured in the Storeroom function — one of the most specified security functions for restricted-access rooms in offices, schools, healthcare facilities, and institutional buildings. Built on Sargent's proven 7-Line cylindrical platform, this lockset delivers reliable, heavy-duty performance for high-traffic commercial door openings.

Storeroom Function — What It Does

The Storeroom (ANSI F07) function means the outside lever is always locked and cannot be operated without a key — entry is possible only by key from outside. The inside lever always freely retracts the latch, ensuring unrestricted egress at all times. This function is ideal for supply rooms, server rooms, utility closets, pharmacies, and any space requiring controlled entry with free exit. An auxiliary deadlatch protects the latch bolt against shimming or loid attacks.

Key Benefits

• Controlled access without a thumbturn: The outside lever is permanently locked — no toggle required — making the storeroom function low-maintenance and tamper-resistant.
• Lever design for ADA compliance: The LL lever trim provides the accessible, lever-operated hardware required for ADA-compliant commercial openings on accessible routes.
• Heavy-duty cylindrical construction: Sargent 7-Line locksets are designed for demanding commercial use, with solid internal components suited to Grade 1 performance expectations.
• Auxiliary deadlatch included: Guards the latch bolt against forced entry techniques common in storeroom and service door applications.
• Keying flexibility: Compatible with Sargent's V-10 / ASSA high-security cylinder system (VA-C8 retrofit cylinder available), supporting master keying, keyed-alike, and interchangeable core configurations.

Typical Applications

• Storage rooms, supply closets, and utility spaces in office buildings and schools
• Server rooms, IT closets, and telecommunications rooms
• Pharmacy or medication storage in healthcare and behavioral health facilities
• Janitorial and maintenance closets in hotels and institutional buildings
• Any commercial opening requiring restricted entry with free egress

Technical Details

Need a comparable alternative or want to explore options from additional preferred lines? Contact DoorwaysPlus for a quote — our team can source storeroom-function cylindrical locksets from Sargent and other specification-grade manufacturers to match your project requirements.

The Sargent 7G04 LL is an industrial-grade Grade 2 Cylindrical Storeroom Lock engineered for high-security applications in commercial, medical, and government facilities. As a key component of the Sargent 7-Line Series, this lockset is designed for openings that must remain permanently locked to unauthorized traffic while allowing effortless egress from the interior. Packaged with the 808 Curved Lip ANSI Strike, while the LL design features a sleek, linear lever made of solid one-piece cast construction for a premium, precise action.

Maximum Security for Restricted Areas

The 04 Storeroom Function (ANSI F86) is the industry standard for mechanical rooms, janitorial closets, and IT suites where security cannot be left to chance.

• Always Locked Exterior: The outside lever is always rigid. Entrance is only possible by using a physical key to retract the latchbolt, ensuring the room is never accidentally left unlocked.

• Instant Interior Egress: The inside lever is always free for immediate exit. This ensures 100% compliance with NFPA 101 Life Safety codes and ADA accessibility requirements.
• Deadlocking Protection: Features a 1/2" throw stainless steel latch with a deadlocking auxiliary bolt to prevent "shimming" or unauthorized manipulation of the latch when the door is closed.

• Solid Cast Construction: Unlike stamped or hollow alternatives, the LL levers are solid, one-piece castings that provide a substantial feel and superior resistance to wear and abuse.


Institutional Strength and Rapid Installation

The Sargent 7-Line is built to outperform the baseline for Grade 2 hardware, offering facility managers "heavy-duty" performance in a versatile, standard-duty footprint.

• Exceeds Industry Standards: This series significantly exceeds ANSI/BHMA A156.2 Grade 2 cycle requirements, providing a long service life with no maintenance required.

• One-Minute Installation: Specifically engineered for maximum efficiency, the 7G04 installs in one minute or less, drastically reducing labor costs for facility-wide upgrades.
• Through-Bolted Stability: Internal through-bolts supply unmatched strength and stability without requiring additional door preparation, fitting standard modified 161 door preps.

• Corrosion Resistance: The cylindrical housing is constructed of steel with a zinc dichromate finish to protect the internal mechanism from environmental wear.

Technical Specifications

Why Choose the Sargent 7G04 LL?

For contractors and facility managers, the Sargent 7G04 LL represents a high-value security investment. It provides the architectural continuity of a professional linear lever with the mechanical strength required for 24/7 public and private use. It is compatible with high-security key systems including Degree®, Signature, XC, and Keso, allowing you to integrate this lock into your existing master key system with ease.

Ideal Applications:

• Commercial IT Rooms: Restricting access to sensitive servers and data racks.
• Medical Supply Closets: Secure storage for pharmaceuticals and equipment.
• School Mechanical Rooms: Preventing unauthorized access to HVAC and electrical systems.
• Government Storage: A fire-rated, Grade 2 barrier for restricted document storage.
