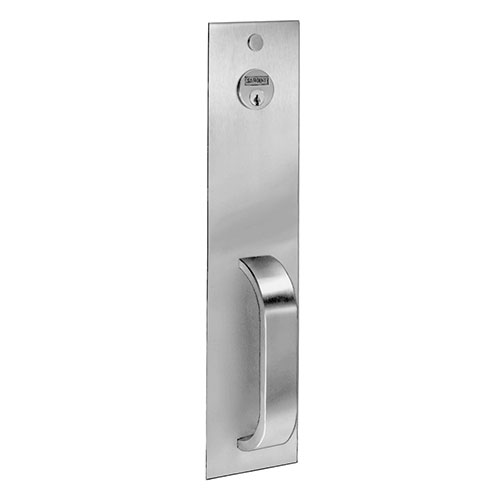

Sargent 814-PTB Outside Trim for 8800 Series Wide Stile Rim Exit Devices

The Sargent 814-PTB is an outside trim assembly designed specifically for use with Sargent 8800 Series wide stile rim exit devices. This trim provides the exterior-side hardware interface — including the operating trim and cylinder prep — that allows controlled outside entry while maintaining the full panic egress function of the 80 Series exit device from the inside. If your facility uses 8800 Series rim panic hardware on wide stile metal doors, the 814-PTB is the correct outside trim companion.

Important: This trim is intended exclusively for the 8800 Series (wide stile rim exit devices). It is not compatible with narrow stile devices (8500/AD8500 Series) or vertical rod/concealed vertical rod configurations (8700/8600 Series). Verify your existing device series before ordering.

Key Features & Benefits

• Designed for Wide Stile Doors: Engineered to pair with Sargent 8800 Series rim exit devices on wide stile hollow metal doors — the most common commercial exit device configuration.
• Outside Entry Control: Provides controlled outside access via key cylinder while preserving unrestricted egress from the inside, meeting life-safety code requirements.
• Sargent 80 Series Compatibility: Fits within Sargent's established 80 Series ecosystem — ANSI/BHMA A156.3 Grade 1 devices that are UL Listed for panic (UL305) and fire (UL10C) applications when paired with the correct rated device.
• Part-Level Serviceability: Ordering trim separately allows facility managers and contractors to replace or upgrade outside trim without replacing the entire exit device — reducing downtime and cost.
• Commercial Grade Construction: Built to the durability standards expected of Sargent's 80 Series commercial exit hardware line.

Typical Applications

• Commercial and institutional buildings with Sargent 8800 Series rim panic hardware
• Schools, office buildings, healthcare facilities, and government buildings
• Replacement outside trim on existing 8800 Series installations
• New construction specifying Sargent 80 Series exit devices on wide stile metal doors
• Upgrade or re-key situations requiring outside trim replacement only

Compatibility Note

The Sargent 8800 Series underwent significant design changes between 2002 and 2006. When replacing outside trim on an existing installation, confirm the current device generation against Sargent's parts diagrams to ensure trim-to-device compatibility. If you are unsure of your device generation or need help confirming compatibility, contact DoorwaysPlus for assistance.

Looking for a comparable outside trim solution from an alternative manufacturer? Sargent, Corbin Russwin, Hager, and PDQ all offer outside trim assemblies for commercial rim exit devices — ask about equivalent options with stable, long-term parts availability.

Technical Details

 - Cylinder Operates Latchbolt

 - Always Locked
