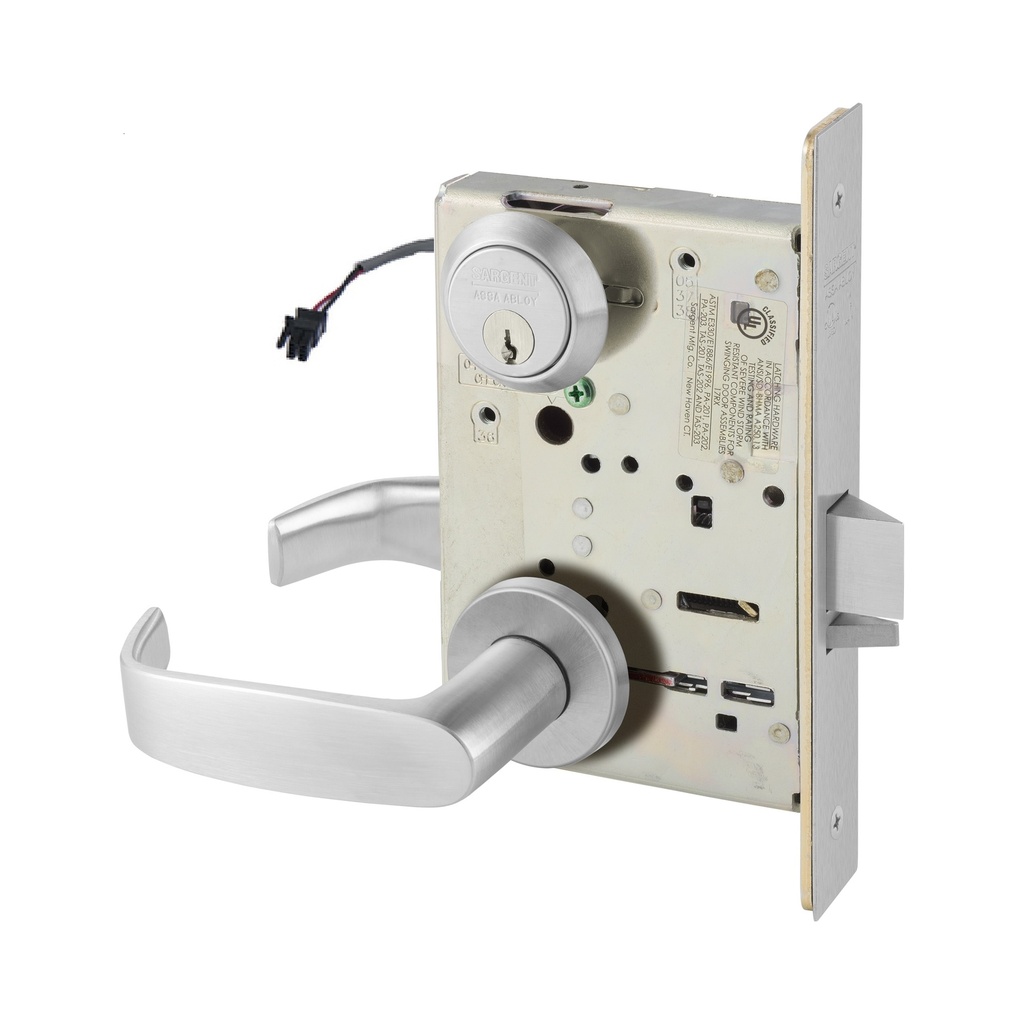

Sargent 8273 LNL US26D Fail Secure Electric Mortise Lockset, Unlocks Both Levers

Price:

$ 1,069.09
  2. Shop
  3. Sargent 8273 LNL US26D Fail Secure Electric Mortise Lockset, Unlocks Both Levers
Sargent 8272 LNL US26D Fail Safe Electric Mortise Lockset, Locks Both Levers
Sargent 8272 LNL US26D Fail Safe Electric Mortise Lockset, Locks Both Levers
$ 1,145.27
$ 1,145.27
Bobrick 1040-115 Outswinging Door Slide Latch
Bobrick 1040-115 Outswinging Door Slide Latch
$ 36.00
$ 36.00

Sargent 8273 LNL US26D Fail Secure Electric Mortise Lockset, Unlocks Both Levers

https://doorwaysplus.com/web/image/product.template/32411/image_1920?unique=b4b8d47
(0 review)

Sargent 8273 LNL US26D Electromechanical Mortise Lockset - Fail Secure
Lead time: 5-7 Business Days

$ 1,069.09 1069.09 USD $ 1,069.09

$ 1,145.27

Not Available For Sale

  • Finish with BHMA code
  • Sargent Keyways
  • Brand
  • ANSI Mortise Lock Function
  • Trim Design
  • Series
  • Voltage

This combination does not exist.

Contact Us
Share :

Sargent 8273 LNL US26D Electric Mortise Lockset - Fail Secure, Unlocks Both Levers

**** 73 function — Power ON, unlocks both levers ****

  • Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
  • Key outside retracts latchbolt
  • Lever outside retracts latchbolt, except when locked
  • Lever outside can only be locked electronically
  • Lever inside always retracts latchbolt
  • Auxiliary deadlatch



Sargent 8273 LNL US26D Electric Mortise Lockset Catalog Page







Sargent Keyways LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core
Voltage 12 VDC or 24 VDC
Finish with BHMA code 626 - US26D Satin Chrome
Brand Sargent
ANSI Mortise Lock Function Electrical - Fail Secure
Trim Design LNL
Series Sargent - 8200 Series
SARGENT 7800 and 8200 Series Electrified Mortise Locks 70-73 Functions.pdf
Download
Sargent 7800_8200 Catalog.pdf
Download
Sargent 8200 Electrified Mortise Lock Installation Instructions.pdf
Download
Sargent 8200 Lock Body Parts Manual.pdf
Download
Sargent 8200 Series Mortise Lock Installation Instructions A7772F.pdf
Download
