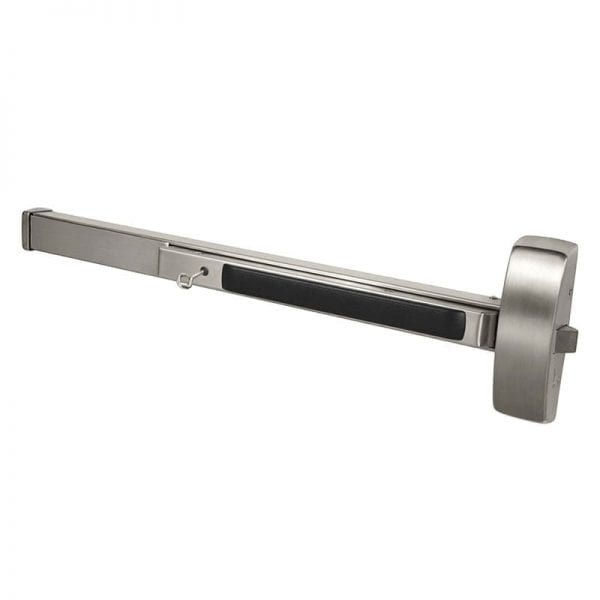

Sargent 8888 Reversible Rim Exit Device
The Sargent 8888 is a heavy-duty, Grade 1 Reversible Rim Exit Device designed for maximum versatility and reliability in commercial environments. Engineered for standard-width stile applications on wood or metal doors, this multi-function panic bar provides a high level of security with remarkably quiet operation. Whether you are outfitting a single door or a double door with a mullion, the 8888 is the industry standard for life safety compliance and long-term durability.
Grade 1 Strength and Universal Design
Certified to ANSI/BHMA A156.3 Grade 1 standards, the Sargent 8800 Series is built to withstand high-traffic use in schools, hospitals, and office buildings. The device features a 3/4" throw stainless steel latchbolt for superior engagement and protection. As a reversible rim exit device, it can be easily field-configured for either left or right-hand doors, simplifying the ordering process and installation for maintenance teams and contractors alike.
Advanced Security and Electrified Integration
The 8888 is more than just a mechanical exit bar; it is a platform for modern access control. It is UL10C Fire Rated (when ordered with the 12-prefix) and UL305 Panic Listed. For integrated security, this device can be equipped with various electrified options, including Remote Latch Retraction (56-), Request-to-Exit monitoring (55-), and Electric Dogging (58-). To ensure a high-quality "plug-and-play" installation, the QC12 ElectroLynx connector system is recommended for the associated hinge to provide a seamless power connection.
Key Product Features
- Reversible Design: Non-handed/reversible for flexible field installation on any door hand.
- Single Point Latching: Robust rim latching for single doors or double doors with a mullion.
- Fire & Panic Certified: UL Listed for both fire-rated (12-) and panic hardware applications.
- Superior Durability: ANSI/BHMA Grade 1 certified with a high-strength stainless steel latchbolt.
- Flexible Rail Sizes: Available in E, F, J, and G rails to fit door widths from 24" to 48".
- Multiple Strike Options: Comes standard with the 649 Strike; specialized strikes (642, 644, 613) available for unique frame conditions.
Technical Specifications
| Feature | Details |
| Device Type | Reversible Rim Exit Device |
| Latchbolt | Stainless Steel, 3/4" (19mm) Throw |
| Door Thickness | 1-3/4" Minimum (Up to 5" available with 31- prefix) |
| Minimum Stile | 4-1/2" Standard |
| Dogging | Hex key dogging standard (Non-fire rated only) |
| Centerline | 41" from finished floor |
| Mounting | Wood/Machine screws standard; Thru bolts available |
Ordering & Installation Information
The Sargent 8888 is factory-cut based on the door width provided. For high-wind zones, this series is also available as the HC8800 or WS8800 for hurricane resistance. If you require cylinder dogging for easier daily management of non-fire-rated doors, please specify the 16- prefix.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Exit Device Fire Rating | Non Rated Door or Fire Rated Door |
| Sargent Exit Device Rail Length | F - 36" Wide Door or J - 42" Wide Door or G - 48" Wide Door |
| Sargent Exit Device Prefixes | 43 - Flush End Cap or 53 - Latchbolt Monitor Switch – available with 55, 56, 58, AL options) or 55 - Signal Switch in Rail or 56 - Motorized Electric Latch Retraction (Minimum door width for narrow & wide stile is 28") or 58 - Electric Dogging or 59 - Electroguard Delay Egress (Not available with 16-, 53-, 55-, 56-, 58- Options) or HC - Hurricane Code (not available with 16, 28, 63, 66 functions) or WS - Windstorm Certified |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Exit Device Type | Rim Exit Device |
| Door Opening Width | 36 Inches, 42 Inches, 48 Inches |
