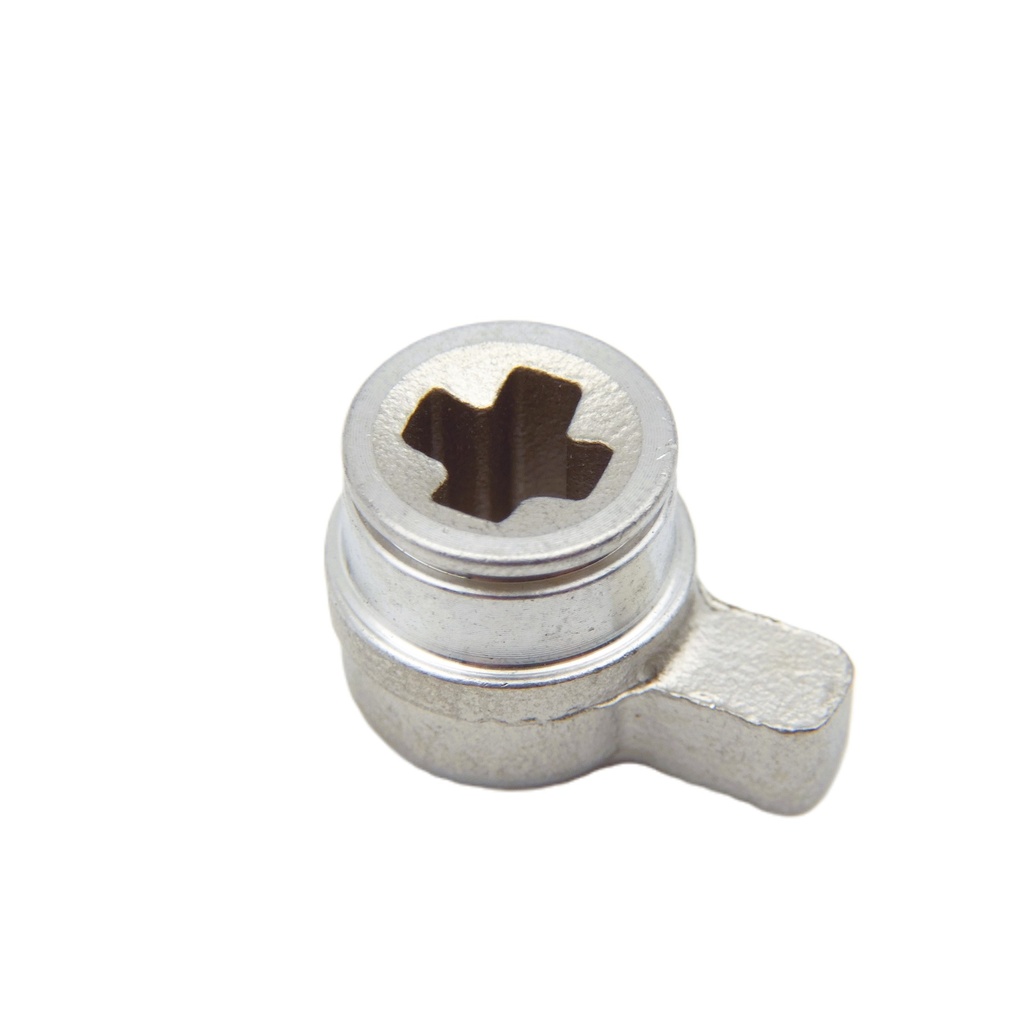

Sargent 94-0088 Cylinder Hub | For 8500 Series ETL Trim
The Sargent 94-0088 is a genuine OEM Cylinder Hub specifically designed for Sargent 8500 Series Mortise Exit Devices equipped with an Outside ETL Trim. Identified as Part #11 on official technical diagrams, this hub acts as the interface between the key cylinder tailpiece and the internal lock mechanism. This part is also available with the optional 01-0005 Retaining Ring to ensure a secure, permanent seat within the trim assembly.
Institutional Grade Features & Benefits
- Direct 8500 Series Compatibility: Engineered specifically for the architecture of Sargent’s high-security mortise exit devices.
- Precision Mechanical Interface: Designed to capture the cylinder tailpiece and translate key rotation into latch retraction with zero "slop" or dead space.
- Heavy-Duty Construction: Manufactured from a high-strength alloy to resist the torque and physical wear associated with high-frequency keyed entry.
- Dual-Hub Configuration: Typically, 2 hubs are required per device (one for each side of the mortise lock) to ensure full mechanical symmetry and backup.
- Optional Retaining Ring: Can be paired with the 01-0005 retaining ring to prevent the hub from shifting or backing out during heavy usage or attempted tampering.
Technical Specifications
- Model Number: 94-0088
- Part Type: Cylinder Hub (Interface for Key Cylinder)
- Optional Hardware: 01-0005 Retaining Ring
- Compatibility: Sargent 8500 Series Exit Devices with ETL Trim
- Quantity Required: 2 per Device
- Technical Reference: Part #11 on Sargent 8500 series exploded views
| Add for 01-0005 Retaining Ring | None or Add for 01-0005 Retaining Ring (C Clip) |
| Brand | Sargent |
| Series | Sargent - 80 Series |
