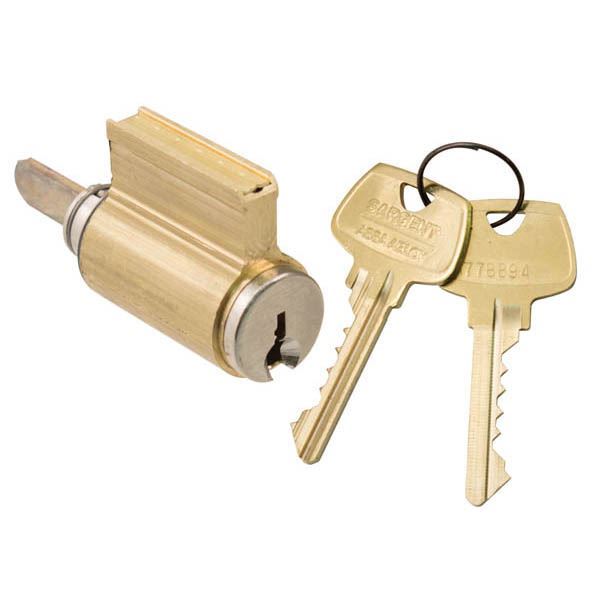

Sargent C10-1 Conventional Cylinder | 13-3266 Replacement for 10, 7, & 6500 Line Levers
The Sargent C10-1 Cylinder (legacy part number 13-3266) is a high-precision, conventional replacement cylinder designed for Sargent Grade 1 cylindrical lever locks. This specialized key-in-lever cylinder is the architectural standard for maintaining and upgrading Sargent 10-Line, 7-Line, and 6500 Series locksets. Crafted from solid brass bar stock, it ensures maximum durability and smooth mechanical performance in high-traffic commercial and institutional environments.
This cylinder is a "one-size-fits-most" solution for nearly all lock functions within these series, with the exception of the Hotel (50) function. Each Sargent C10-1 is typically supplied in a 1-bitted configuration, making it ready for immediate field keying by a locksmith to match your facility's existing master key system.
Professional Security & Architectural Integration
- Universal Lever Compatibility: Engineered specifically for the Sargent 10-Line (heavy duty), 7-Line (standard duty), and 6500 Series (grade 2) lever locks.
- Solid Brass Construction: Precision-machined from solid brass, providing superior resistance to wear and environmental corrosion compared to zinc-based alternatives.
- Field Serviceable: Supplied as a 6-pin cylinder in a 1-bitted state (pins in chambers 3 and 4 only), allowing for rapid and precise re-keying on-site.
- High-Security Standards: Certified to ANSI/BHMA A156.5 Grade 1 standards, ensuring top-tier protection against physical attack and unauthorized entry.
- Master Key System Ready: Available in an extensive range of Sargent keyway families (L, H, and R systems) to integrate seamlessly into complex grandmaster key schedules.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Current Part Number | C10-1 |
| Old Part Number | 13-3266 |
| Cylinder Type | Conventional Key-in-Lever |
| Pin Configuration | 6-Pin Standard |
| Bitting Status | 1-Bitted (Ready to be Keyed) |
| Compatibility | Sargent 10, 8, 7, & 6500 Line Levers |
| Keyway Options | LA, LB, LC, LE, LF, LG, LJ, LK, LL, RA, RB, RC, RE, RF, RG, RJ, RK, RL, HA, HB, HC, HE, HF, HG, HJ, HK, HL |
| Included Keys | 2 Nickel Silver Change Keys |
Installation & Customization Options
The Sargent 13-3266 is an essential component for facility managers performing retrofits or maintenance. Because it covers all functions except the 50 (Hotel) function, it reduces inventory complexity. Note that for the Hotel function, you would specifically require the 13-3492 cylinder.
Available at DoorwaysPlus.com in the following architectural finishes:
- Satin Chrome (US26D/626): Ideal for modern office and healthcare environments.
- Satin Brass (US4/606): Perfect for traditional or high-end aesthetic applications.
| General - US Finishes | US15 - Satin Nickel or US4 - Satin Brass |
| Sargent Keyways | LA Keyway or LB Keyway or LC Keyway or LE Keyway or LF Keyway or LG Keyway or LJ Keyway or LK Keyway or LL Keyway or RA Keyway or RB Keyway or RC Keyway or RE Keyway or RF Keyway or RG Keyway or RJ Keyway or RK Keyway or RL Keyway or HA Keyway or HB Keyway or HC Keyway or HE Keyway or HF Keyway or HG Keyway or HJ Keyway or HK Keyway or HL Keyway |
| Brand | Sargent |
| Series | Sargent - 6500 Series, Sargent - 7 Line, Sargent - 10X Line |
| Cylinder Part Type | Cylinder |
