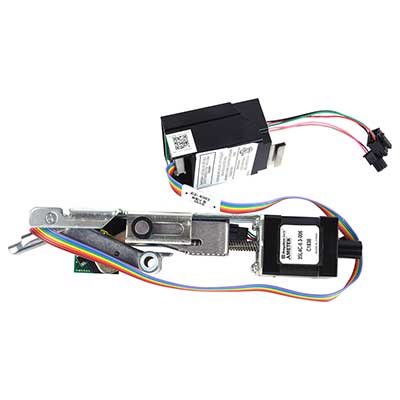

Sargent M56A-32D Retrofit Motor Kit | For 80 Series Exit Devices
The Sargent M56A-32D is a heavy-duty Motor-Driven Latch Retraction (ELR) retrofit kit designed to upgrade existing Sargent 80 Series and "P" Series exit devices. This motor kit provides whisper-quiet operation and the mechanical strength required for high-traffic institutional environments. Manufactured from the finest component materials and finished in 32D (Satin Stainless Steel), it is built to withstand abusive conditions while providing a 5-year factory warranty.
Institutional Grade Features & Benefits
- Motor-Driven Precision: Unlike traditional solenoids, this motor-driven system provides smooth, quiet latch retraction suitable for hospitals, libraries, and offices.
- Integrated Adjustable Timer: Features an on-board 0–10 second timer, eliminating the need for expensive external logic controllers or relays.
- Field Diagnostics: Equipped with a Diagnostic LED to streamline installation and improve field serviceability by providing real-time status updates.
- Energy Efficient: Draws 6A during retraction and drops to a low .25A hold, reducing heat buildup and extending the life of your power supply.
- Code Compliant: UL Listed for Class II circuitry and available in options that meet stringent Dade County hurricane protocols for wind load and missile impact.
- Versatile Compatibility: Compatible with Latchbolt Monitoring (LX), Rail Signal Switches (SS), and both Hex Key or Cylinder Dogging.
Technical Specifications
- Model Number: M56A-32D
- Operation: Continuous or Intermittent duty
- Voltage Requirement: 24 VDC Regulated/Filtered Power Supply
- Current Draw: 6A (Initial) / .25A (Maintained)
- Door Widths: Available for 26" through 48" doors
- Hardware Compatibility: Sargent 80 Series & "P" Series (Manufactured after 2007)
- Warranty: 5-Year Limited Warranty
| Exit Device Rail Size | Size E Rail or Size F Rail or Size G Rail or Size J Rail |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Voltage | 24 VDC |
