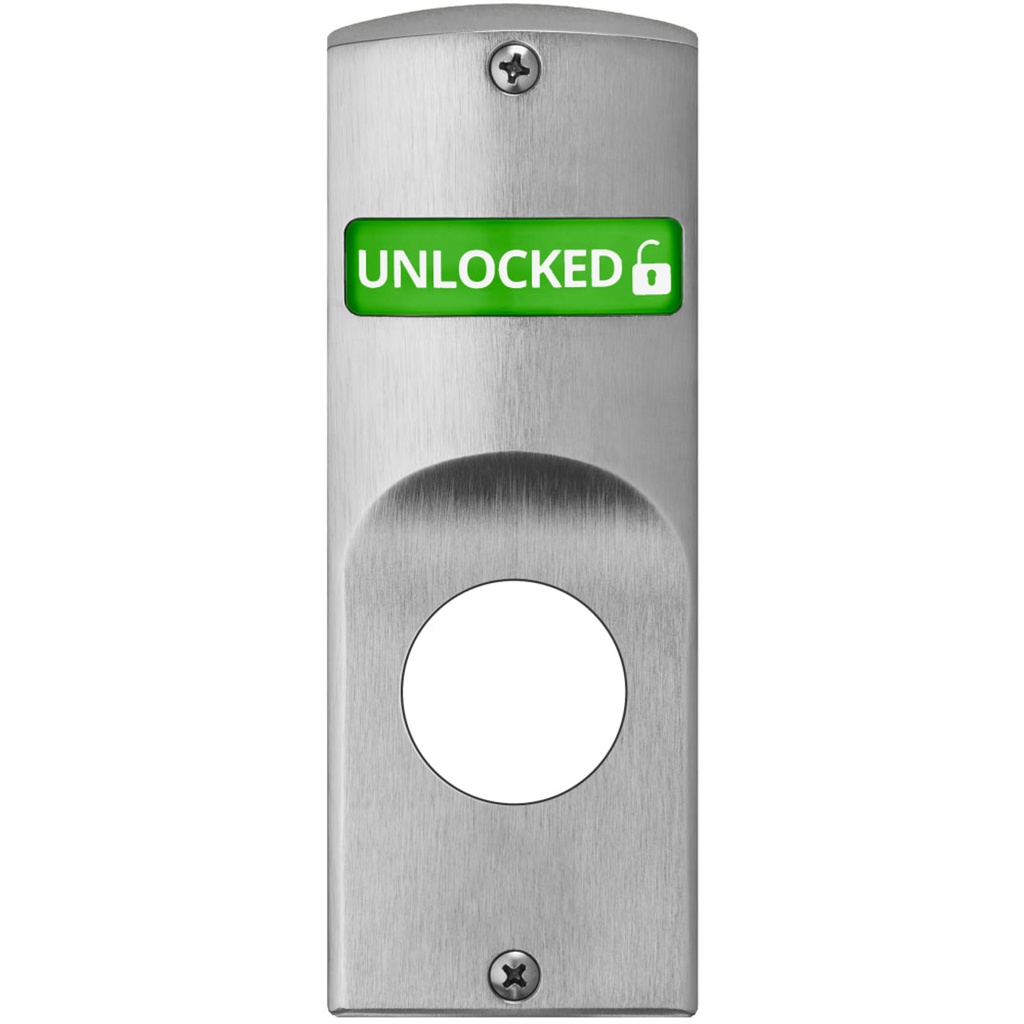

Sargent SA192 Occupancy Indicator | For 8200 & 7800 Series Mortise Locks
The Sargent SA192-US26D is a premium Mortise Lock Status Indicator designed for seamless integration with Sargent 8200 and 7800 Series mortise locks featuring sectional trim. This retrofit kit provides a clear "Vacant/Occupied" visual status, significantly enhancing user privacy and convenience. Finished in US26D (Satin Chrome), the SA192 is surface-mounted to the interior door face and is compatible with all Sargent thumbturn designs.
Institutional Grade Features & Benefits
- Universal Retrofit Compatibility: Specifically designed to upgrade existing 8200/7800 locks without requiring expensive lockset replacements.
- Surface-Mounted Durability: Features a robust housing secured with the provided Torx security screws, making it ideal for high-traffic or vandal-prone public restrooms.
- Field Reversible Handing: While shipped with a factory default, the handing is easily adjusted in the field to match your specific door swing (LHR/RHR).
- Sectional Trim Optimization: Engineered to fit perfectly with popular Sargent rose designs, including O, LN, E, TR, CR, CO, TO, E2, and E3.
- High-Visibility Status: Eliminates the "trial and error" of door-pulling by providing an unmistakable "Vacant" or "Occupied" read at a glance.
Technical Specifications
- Model Number: SA192
- Finish: US26D (Satin Chrome)
- Standard Door Thickness: 1-3/4"
- Lock Compatibility: Sargent 8200 and 7800 Series Mortise Locks
- Function Compatibility: 05, 37, 38, 42, and 59
- Trim Restrictions: Not compatible with BHW, BHL, or BHD trims.
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 8200 Series |
